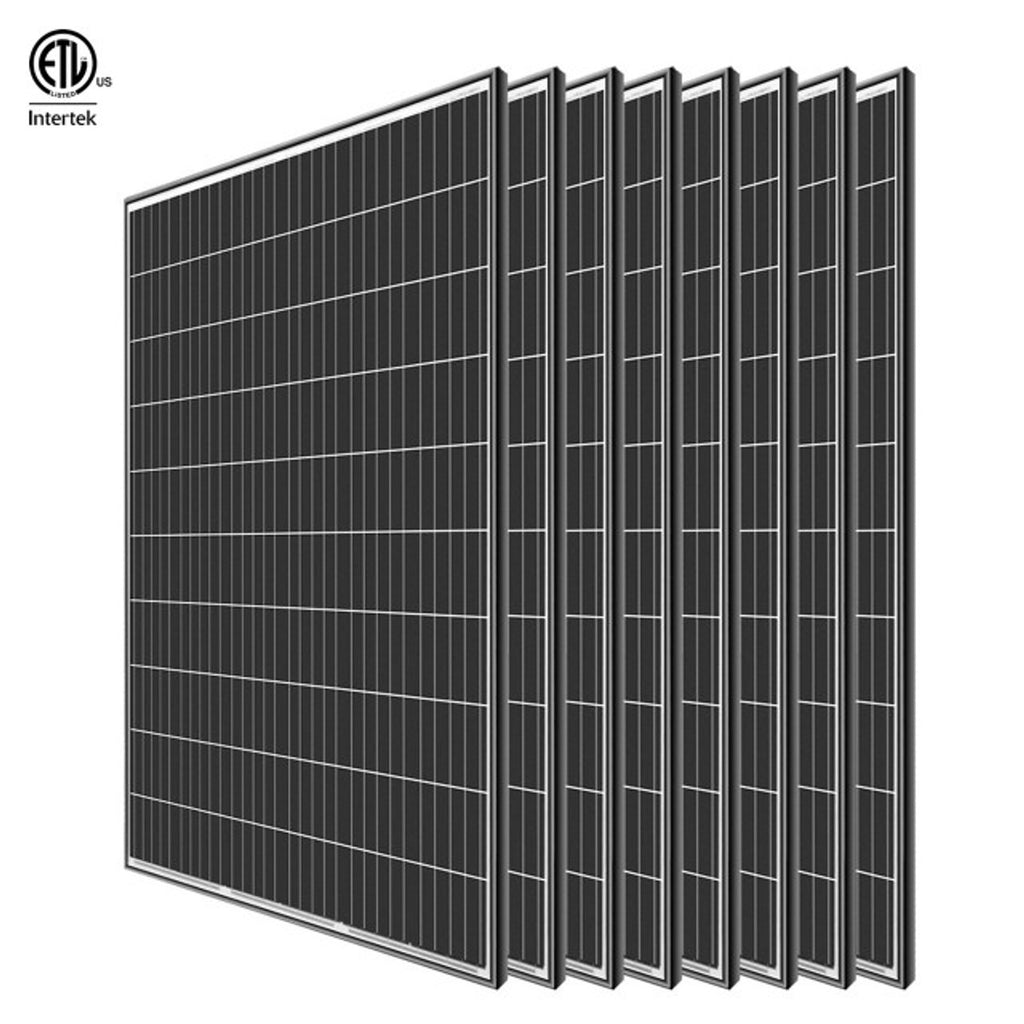

Renogy 320W Solar panel (8 pcs)
Tap 1600Wh of supreme solar power per day with Renogy 320W Solar Panels (8 pcs), fitted with the latest, high efficiency PERC cells, a space-optimized design for minimal modules on rooftop and boasts of durable, enhanced, anti-corrosion aluminum frame.
SUSTAINABLE ELECTRICITY OUTPUT
Renogy 320W solar panels come with a 10 year material and workmanship warranty guaranteed to deliver up to 95% output in the first 5 years. With just 5 hours of direct sunlight, Renogy 320W solar panels generate 1600Wh of power every day, more than sufficient to go off-grid with all your appliances.
SPACE SAVING, ENERGY EFFICIENT
A tad shorter than an average man in height, 2 of Renogy's 320W solar panels are capable of providing 3.2kWh/d which is equivalent to 6 of any 100W panel, which means 320W Renogy occupies lesser space, generates more power and goes easy on the aesthetics.
ADVANCED PERC SOLAR CELLS
Fitted with the latest generation of high-efficient PERC cells on its passivation layer in the backside, the Renogy 320W panels energy generation is effectively boosted manifolds.
UNINTERRUPTED POWER
Renogy's promise of consistent power is guaranteed with bypass diodes that doesn't just protect solar cells from overheating but also bypass underperforming cells and allow the panel to work consistently.
HIGH LIGHT TRANSMISSION VALUES

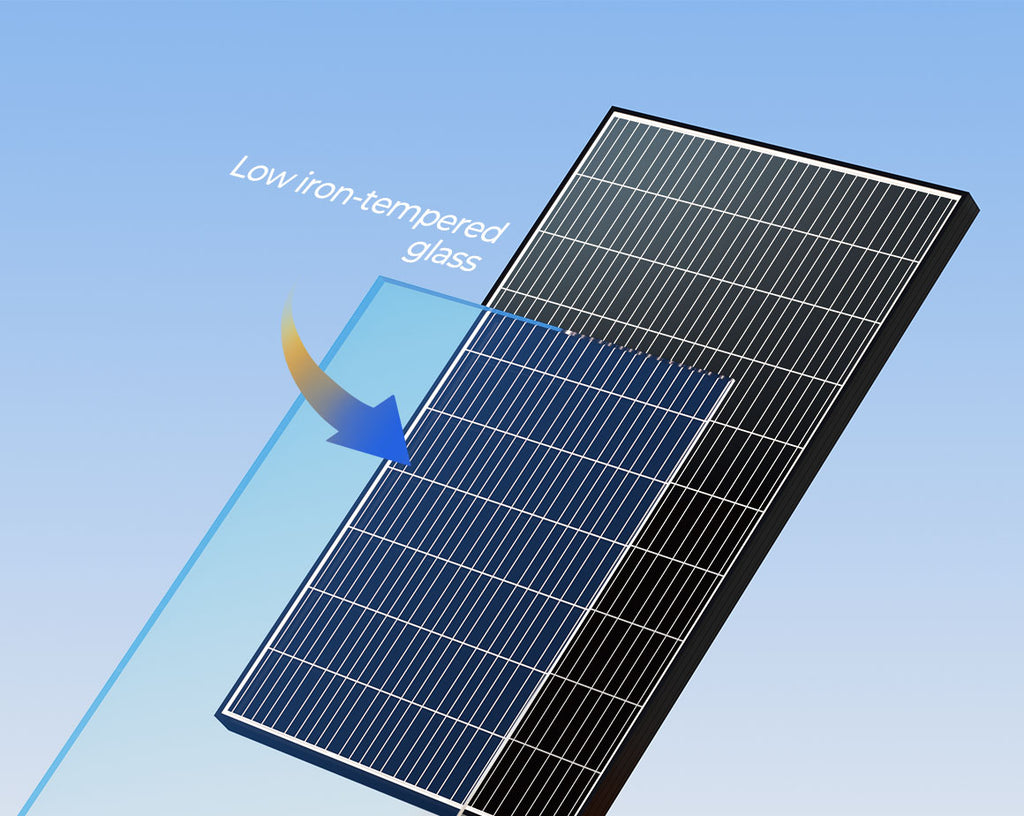

Achieve up to 91.5% sunlight conversion into green electric energy with anti-reflective ,low-tempered, impact-resistant glass.
DURABLE DESIGN
IP67 waterproof rating protect the 320W Solar Panels against snow load of 5400pa and a wind load of 2400pa. Renogy's corrosion-resistant durable aluminum frame and glass are designed for stability.
Specifications:
Max Power at STC: 320W
Open Circuit Voltage: 40.3V(±5%)
Short Circuit Current: 10.23A(±5%)
Optimum Operating Voltage: 33.0V
Optimum Operating Current: 9.70A
Module Efficiency: 19.20%
Cell Efficiency: ≥22%
Maximum System Voltage: 1500 VDC UL
Maximum Series Fuse Rating: 20A
Cell Type: Monocrystalline (6.3x 6.3 in)
Number of Cells: 60 (6 x 10)
Dimensions: 65.6 x 39.4 x 1.4 in
Weight: 39.7 lbs
Front Glass: Tempered Glass 0.13 in (3.2 mm)
Operating Temperature: -40°F to 185°F
What's in the Box:
8 x 320W Solar Panel
1 x User Manual
