Renogy 400 Watt 12 Volt Solar Starter Kit

The Renogy 400 Watt 12 Volt Solar Starter Kit is an ideal solution for those new to solar energy, offering a comprehensive package to power off-grid applications such as RVs, boats, cabins, and more. This kit includes four 100W monocrystalline solar panels, a 30A PWM Wanderer Charge Controller, and essential mounting hardware, providing a reliable and efficient power source for various needs.

High-Efficiency Monocrystalline Panels

Each 100W panel features monocrystalline solar cells with a 21% efficiency rate, ensuring optimal power generation even in low-light conditions. The panels are designed to produce an average of 2000Wh per day, depending on sunlight availability, making them suitable for charging 12V batteries and powering small appliances.

Advanced 30A PWM Charge Controller

The included 30A PWM Wanderer Charge Controller is equipped with multiple electronic protections, including overcharging, overload, short-circuit, and reverse polarity safeguards. Its negative grounding design enhances safety and compatibility with a wide range of off-grid applications.

Durable and Weather-Resistant Design

Constructed with a robust aluminum frame and tempered glass, the solar panels are built to withstand harsh environmental conditions, including high winds and snow loads. The IP65-rated junction box offers protection against dust and low-pressure water jets, ensuring long-lasting performance.

Expandable System for Future Growth

The 30A PWM Wanderer Charge Controller allows for system expansion up to a maximum of 400W, providing flexibility to increase power capacity as energy needs grow. This scalability makes the kit a versatile choice for various off-grid applications.

Specifications

• Renogy 100W Monocrystalline Solar Panel

• Maximum Power: 100W

• Maximum System Voltage: 600V DC (UL)

• Open-Circuit Voltage (Voc): 21.6V

• Short-Circuit Current (Isc): 6.24A

• Optimum Operating Voltage (Vmp): 17.9V

• Optimum Operating Current (Imp): 5.72A

• Dimensions: 42.2 x 19.6 x 1.38 in

• Weight: 16.5 lbs

• Renogy Wanderer Li - 30A PWM Negative-Ground Charge Controller

• Nominal Voltage: 12 VDC

• Rated Charge Current: 30A

• Max. PV Input Voltage: 25 VDC

• Max. PV Input Power: 400W (12V)

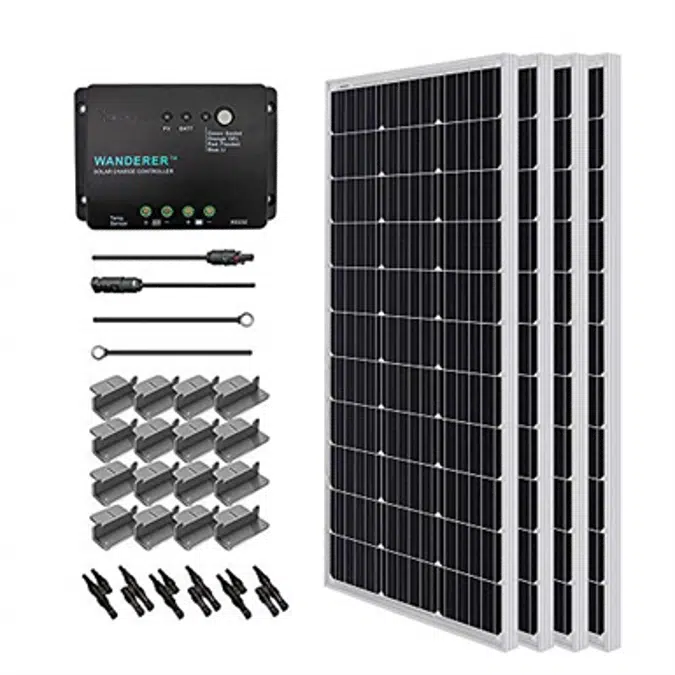

What’s In The Box

4 x 100W Monocrystalline Solar Panels

1 x 30A PWM Wanderer Charge Controller

1 x 20ft 10AWG MC4 Adaptor Kit

1 x 8ft 10AWG Tray Cable

3 x MC4 Y-Branch Connectors

4 x Sets of Z-Brackets for Mounting
