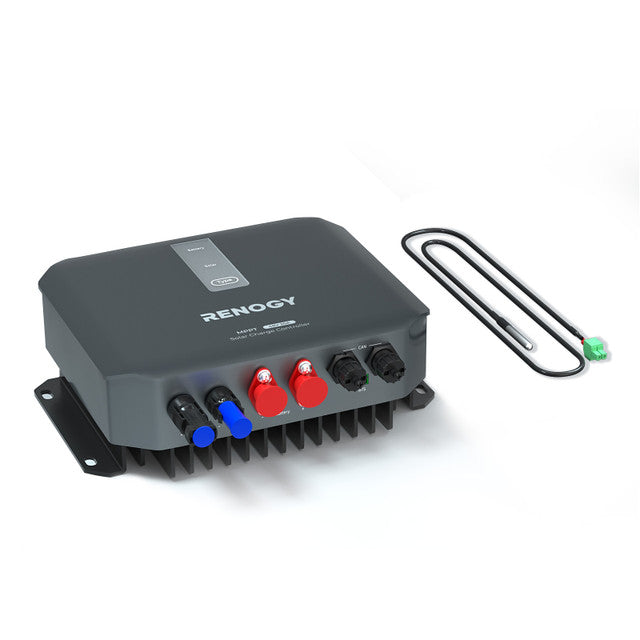

Renogy REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

The Renogy REGO 30A MPPT Solar Charge Controller is engineered to optimize solar energy harvesting for various off-grid applications, including RVs, boats, and cabins. Its advanced Maximum Power Point Tracking (MPPT) technology ensures efficient energy conversion, enhancing the performance of your solar power system.

Advanced MPPT Technology

Utilizing cutting-edge MPPT technology, the REGO controller achieves a tracking efficiency of up to 99.99%, maximizing energy extraction from solar panels under diverse environmental conditions. This results in superior performance compared to standard PWM controllers.

Versatile System Compatibility

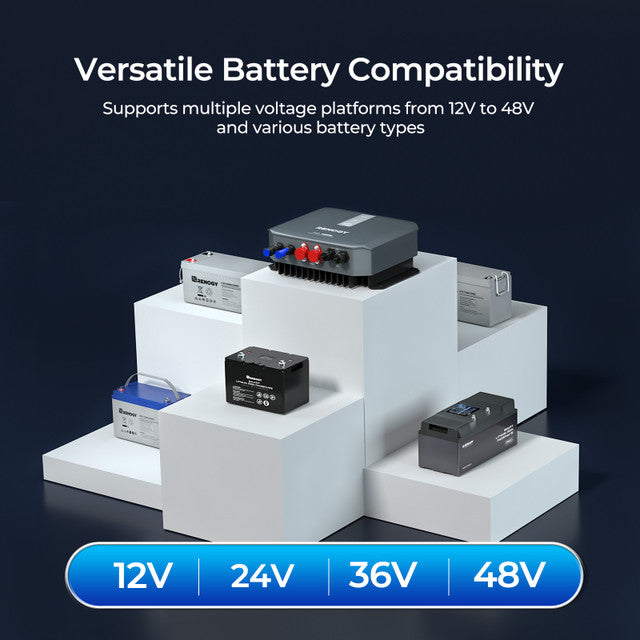

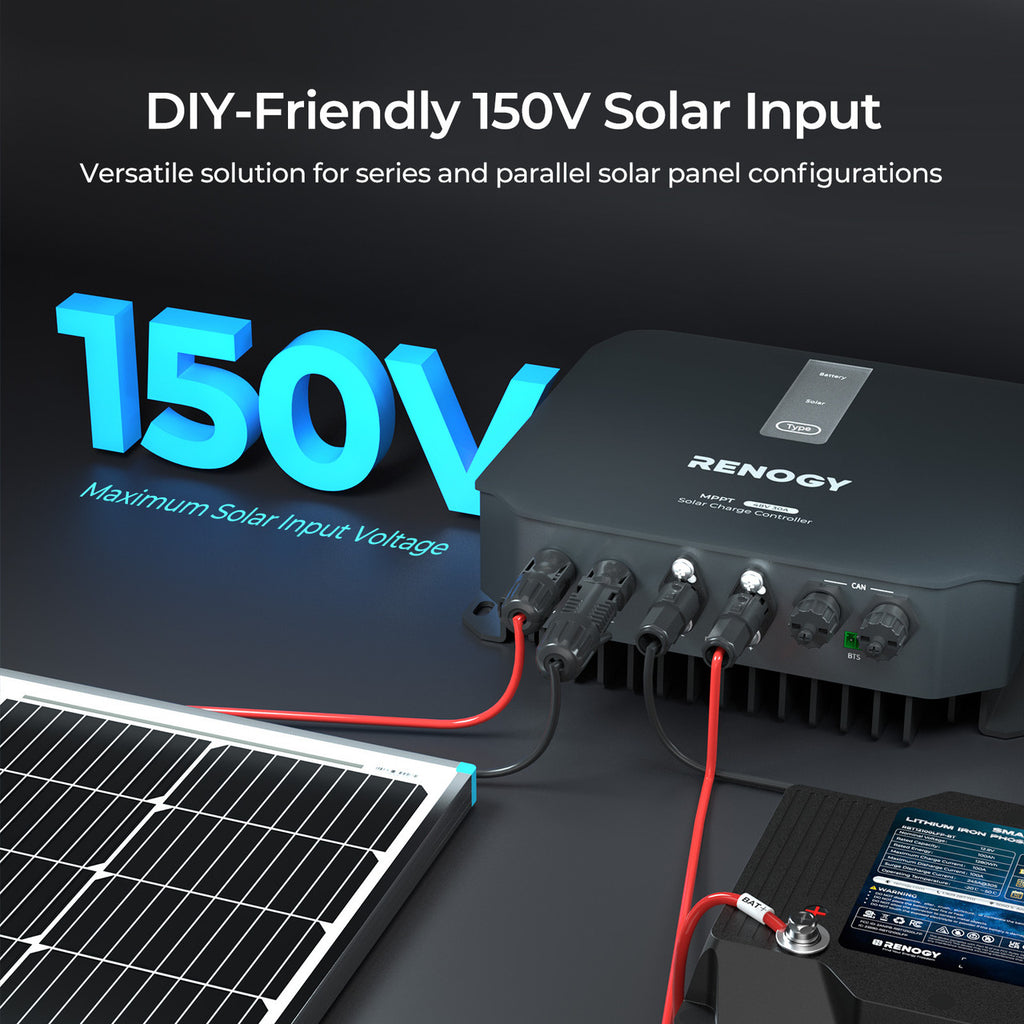

Designed for flexibility, this controller supports 12V, 24V, 36V, and 48V battery systems, accommodating a wide range of setups. It can handle solar input voltages up to 150V, making it suitable for various panel configurations and system expansions.

User-Friendly Design

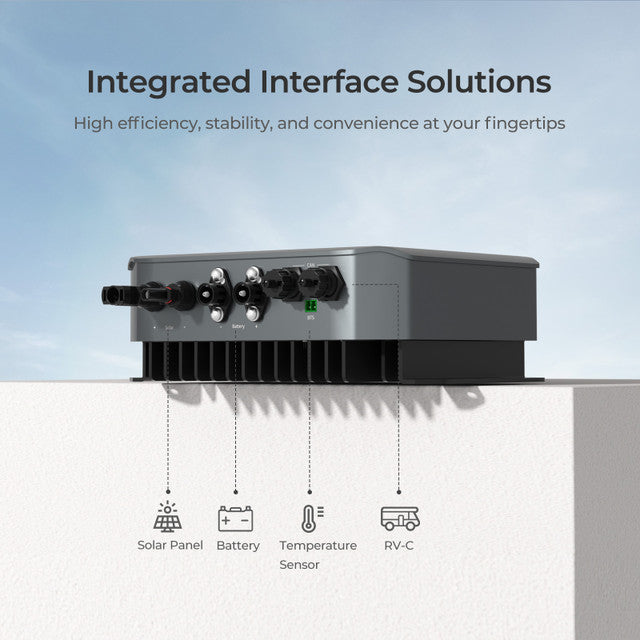

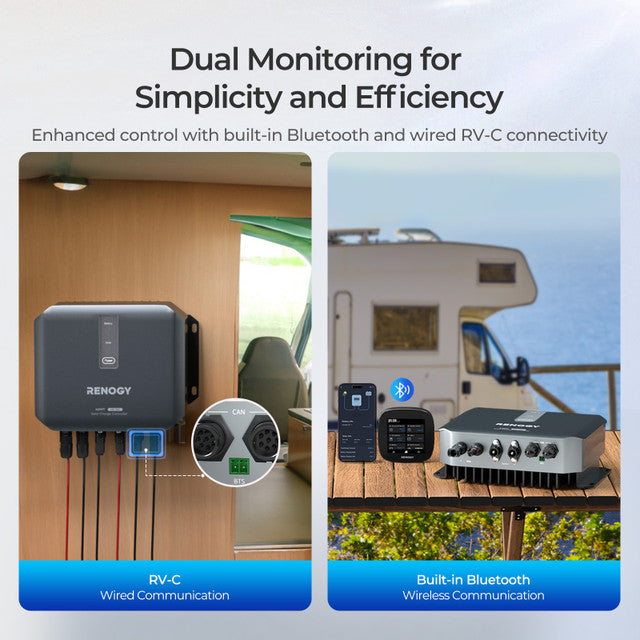

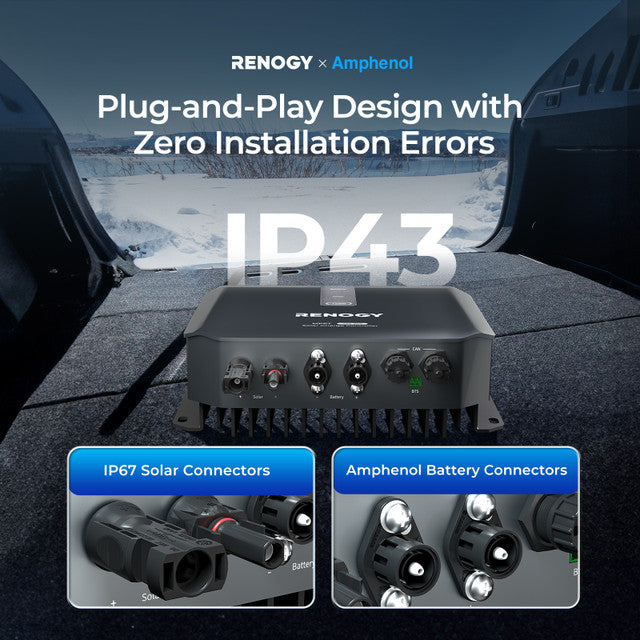

The REGO controller features a plug-and-play design with Amphenol connectors, simplifying installation and reducing setup time. Built-in Bluetooth connectivity allows for seamless monitoring and control via the Renogy DC Home app, providing real-time system data at your fingertips.

Robust Safety Features

Equipped with 13 comprehensive safety protections, including overcharge, over-discharge, and short-circuit safeguards, the REGO controller ensures the longevity and safety of your solar power system. Its robust design is certified by FCC, RoHS, CE, RCM, and UL1741 standards, reflecting its commitment to quality and reliability.

Durable and Reliable Performance

Built to withstand challenging environments, the REGO controller operates efficiently in high-altitude and high-temperature conditions, maintaining stable full-power output. Its durable construction ensures long-lasting performance, making it a dependable choice for off-grid energy solutions.

Specifications

General Data:

• Grounding: Common Negative

• Communication: RS485; Renogy CAN

• Operating Temperature Range: -31°F to 149°F (-35°C to 65°C)

• Storage Temperature Range: -31°F to 176°F (-35°C to 80°C)

• Humidity: 0% to 95% RH

• Cooling: Heat Sink

• Enclosure Rating: IP43

• Dimensions (L × W × H):

• Without Solar Connector: 9.84 × 7.40 × 3.17 in (250 × 188 × 80 mm)

• With Solar Connector: 9.84 × 8.58 × 3.17 in (250 × 218 × 80 mm)

• Weight: 2.7 kg (5.95 lbs)

• Certifications: FCC, RoHS, CE, SAA, RCM, UL 1741

Charger Data:

• Rated Battery Input Voltage:

• Non-Lithium: 12VDC / 24VDC / 36VDC / 48VDC (Auto Recognition)

• Battery Operating Voltage Range: 8V to 64V

• Rated Charge Current: 30A

• Maximum Solar Input Power:

• 440W (12V Battery)

• 880W (24V Battery)

• 1314W (36V Battery)

• 1700W (48V Battery)

• Maximum Solar Input Voltage (Voc): 150VDC

• Power Consumption:

• <0.57W (12V Battery)

• <0.67W (24V Battery)

• <0.97W (36V Battery)

• <1.34W (48V Battery)

• MPPT Tracking Efficiency: >99%

• Conversion Efficiency: >97%

• Temperature Compensation:

• Non-Lithium: 3mV / ℃ / 2V

• Lithium: 0mV / ℃ / 2V (no compensation)

• Charger Algorithm:

• Lead Acid: Bulk, Boost, Float, Equalize

• Lithium: Bulk, Boost

What’s Included

1 x Solar Charge Controller

1 x Quick Guide

1 x Battery Temperature Sensor

4 x Mounting Screws
