Renogy 800W Premium Kit&Renogy one
Renogy brings your way the penultimate kit to achieve your solar energy goals, a 800W 12V/24V monocrystalline solar kit that includes Rover 60A charge controller and Renogy ONE core, a comprehensive package that empowers you with sustainable energy of 3.5-4kWh of electricity per day and smart energy monitoring with intuitive visuals and real-time data.
EFFICIENT PERFORMANCE

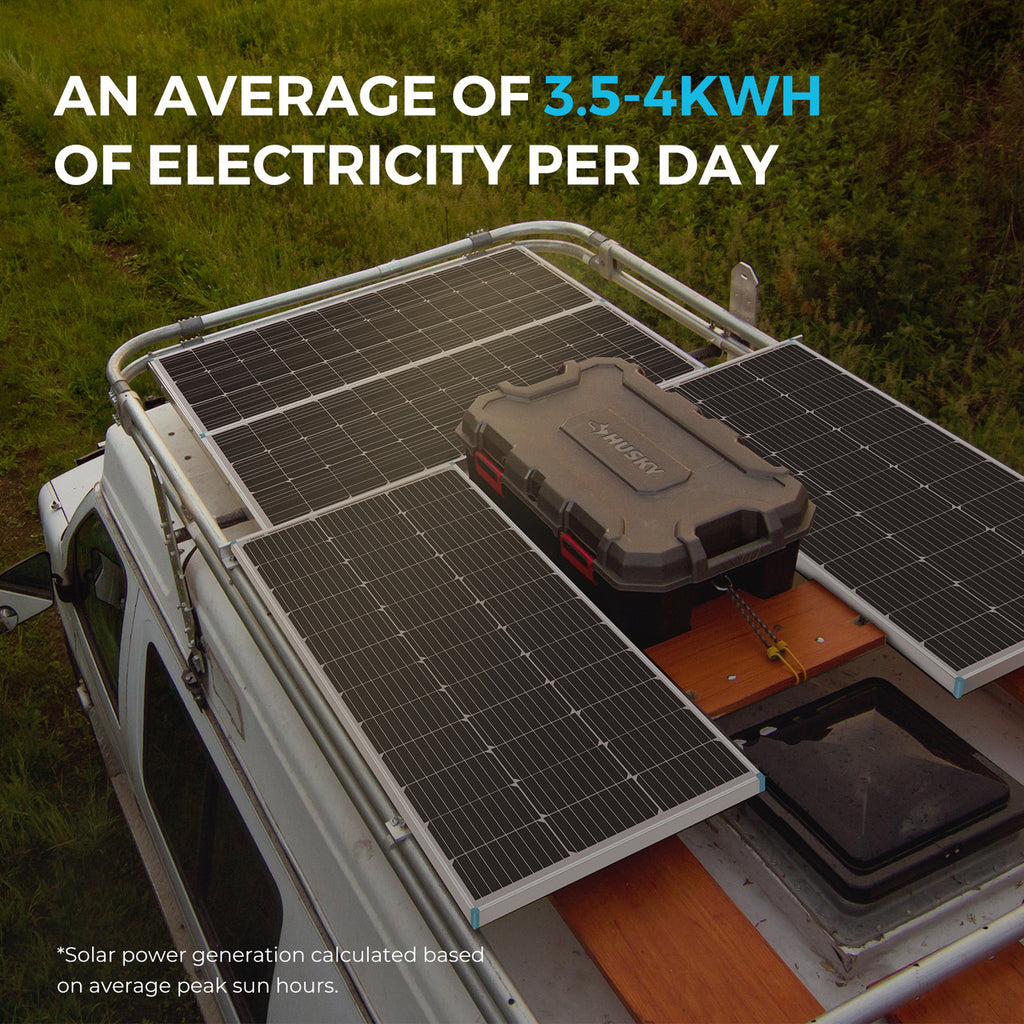

With just 5 hours of sunlight, Renogy premium kit will supply you with an average power of 3.5-4kwh per day. While the TPT back sheet dissipates excess heat in blazing sun, the panels' bypass diodes ensure excellent performance even in low-light conditions delivering smooth output with 17.8% efficiency rate.
DURABLE QUALITY

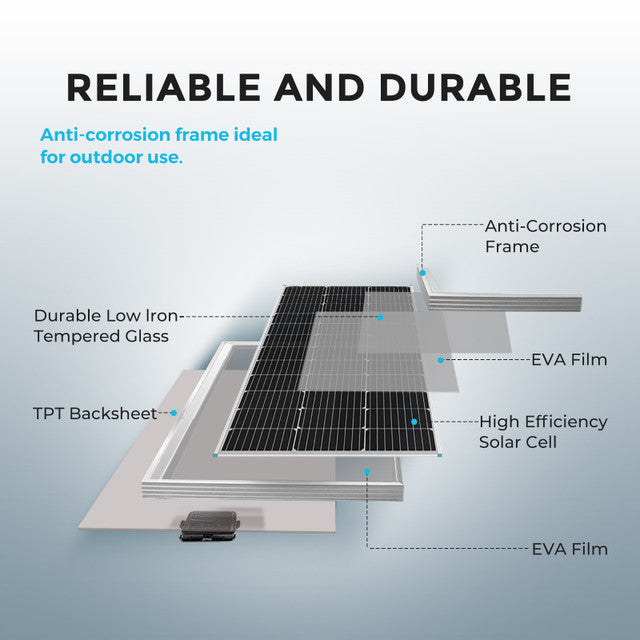

Engineered to last a lifetime, the panels' advanced encapsulation material with multi-layered sheet laminations keep the cells protected from any damages, thus improving cell performance.
INSTALLATION READY

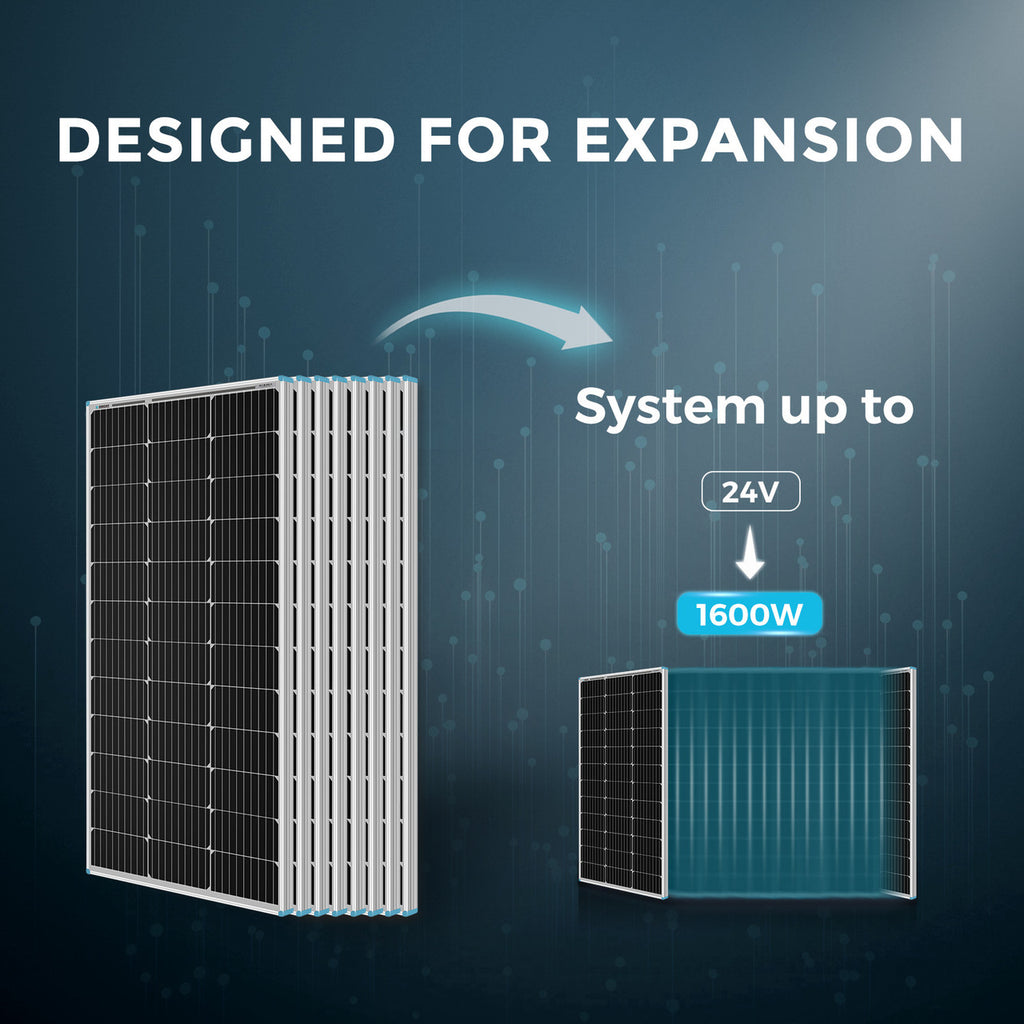

Kickstart your green energy journey with this Renogy Solar Premium Kit that includes every knick-knack needed to build your solar system from scratch. The included Rover Li 60A MPPT charge controller allows solar energy pros to expand this 24V system up to 1600W.
STAY CONNECTED

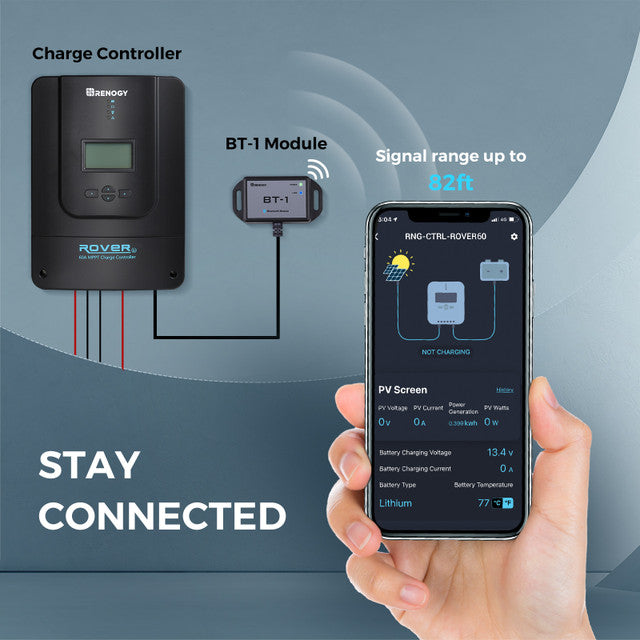

Load the Renogy DC Home App, hook on with BT-1 Bluetooth module and you are all set to monitor and control the workings of your solar energy system from the comfort of your couch. A whopping 82 ft. Bluetooth signal capacity gives you the freedom to tweak parameters from your phone.
FULL SYSTEM PROTECTION
Rover 60A solar charge controller is designed to protect your battery against reverse polarity, overcharging, overload and short circuit. Protecting your charge controller and battery bank from overcurrent is our in-line fuse and ANL fuse components.
Specifications:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs
ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER
Rated Charge Current: 60A
Rated Load Current: 20A
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)
Self-Consumption: 0.7W-1.2W
Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight: 7.9lbs
Enclosure: IP32
Terminals: 25mm2 4AWG
RENOGY 8FT 4AWG TRAY CABLES (A PAIR)
Length: 8ft
AWG: 4
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 2FT 4AWG ANL FUSE CABLE
Length: 2ft
AWG: 4
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature: -40°F to +194°F
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 15A SOLAR CONNECTOR FUSE HOLDER W/FUSE
Rated Current: 15A
Rated Voltage: 1000V DC
Contact Material: Copper, Silver Plated
Replaceable Fuse: Cylindrical PV Fuse (10x38mm)
ANL 60A FUSE SET
Current Rating: 60A
Voltage Rating:: 72V
Interrupt Capacity:: 360A (48V)
BT-1 BLUETOOTH MODULE
Input Voltage: 5V
Communication Range: ≤82ft
Compatible Models: All Renogy Controllers with RJ12 port
Operation Temperature: -20°C~85°C (-4°F to 185°F)
RENOGY SOLAR BRANCH CONNECTORS MMF+FFM PAIR
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Protection Class: Class II
Protection Degree: IP67, mated
Insulation Material: PC/PA
Temperature Range: -40°F to 194°F
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
What's in the Box:
8 x 100W Mono Solar Panel
1 x Rover Li 60A MPPT Charge Controller
1 x 20 ft. 10AWG AK
1 X 2 ft. 4 AWG Fuse Cable
1 x 8 ft. 4 AWG Tray Cable
8 x Mounting Z Brackets
1 x 15A Solar Connector and 60A ANL Fuse
1 x Renogy Solar Branch Connectors MMF+FFM Pair
1 x BT-1 Bluetooth Module
1 x User Manual
