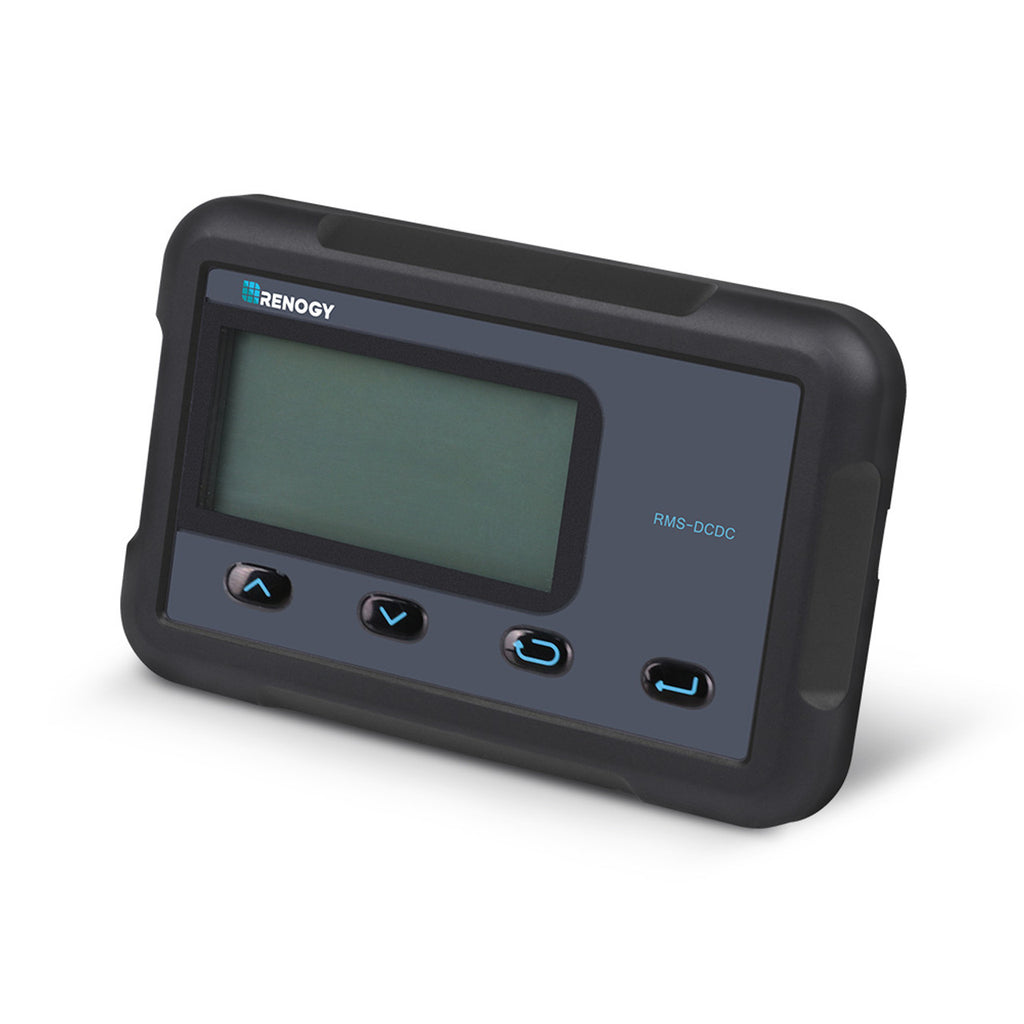

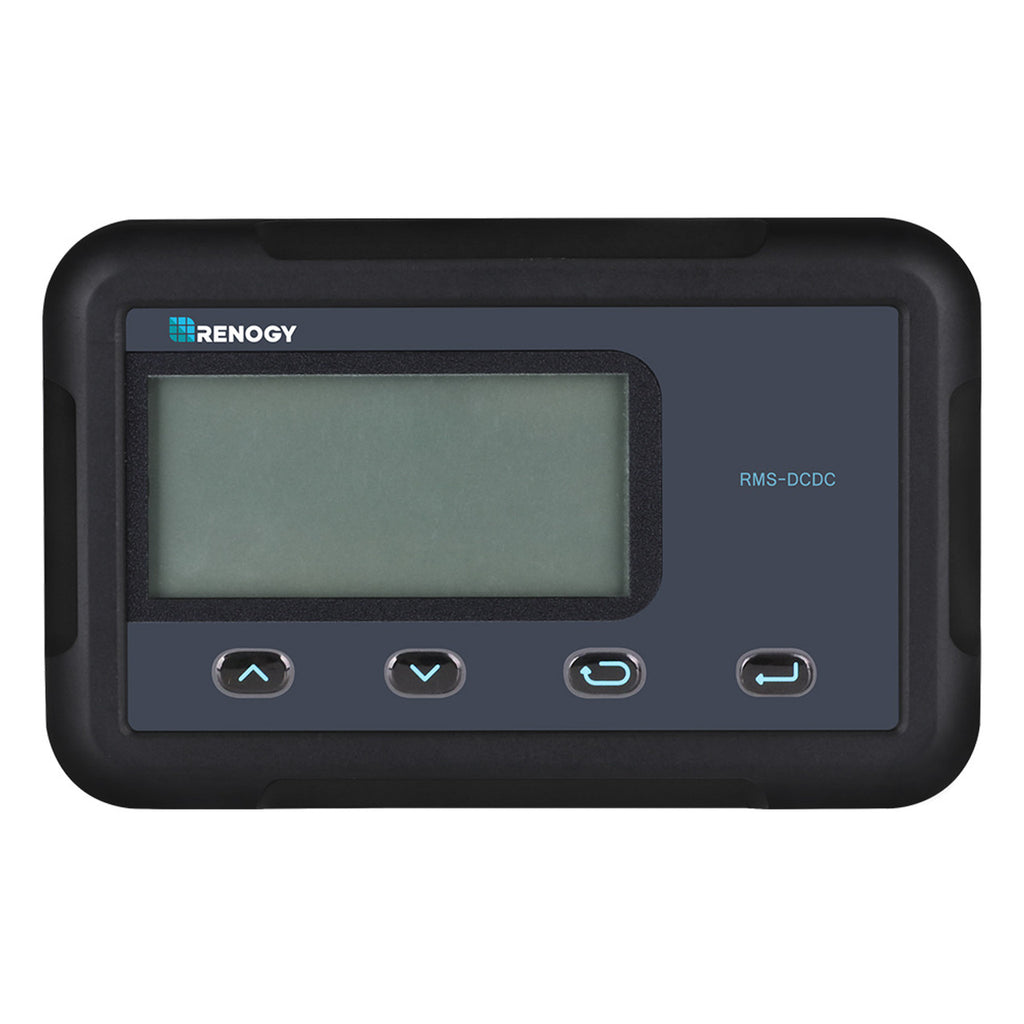

Renogy DC-DC Battery Charger Series Remote Monitor

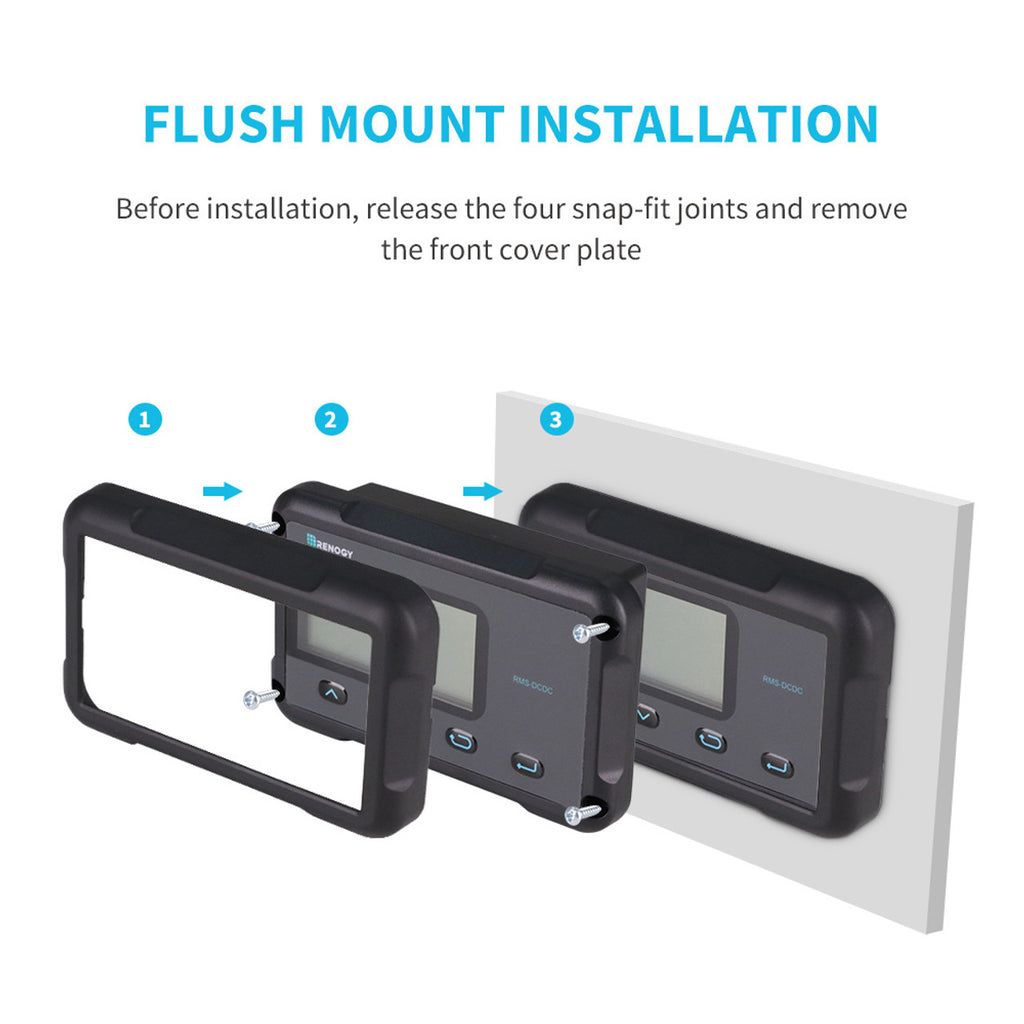

A compact, remote monitor, the Renogy DCDC is a high precision meter for DC-DC MPPT series on board battery chargers. A no-nonsense monitor, this meter can be flush mounted adding a professional and aesthetic look to your control system.

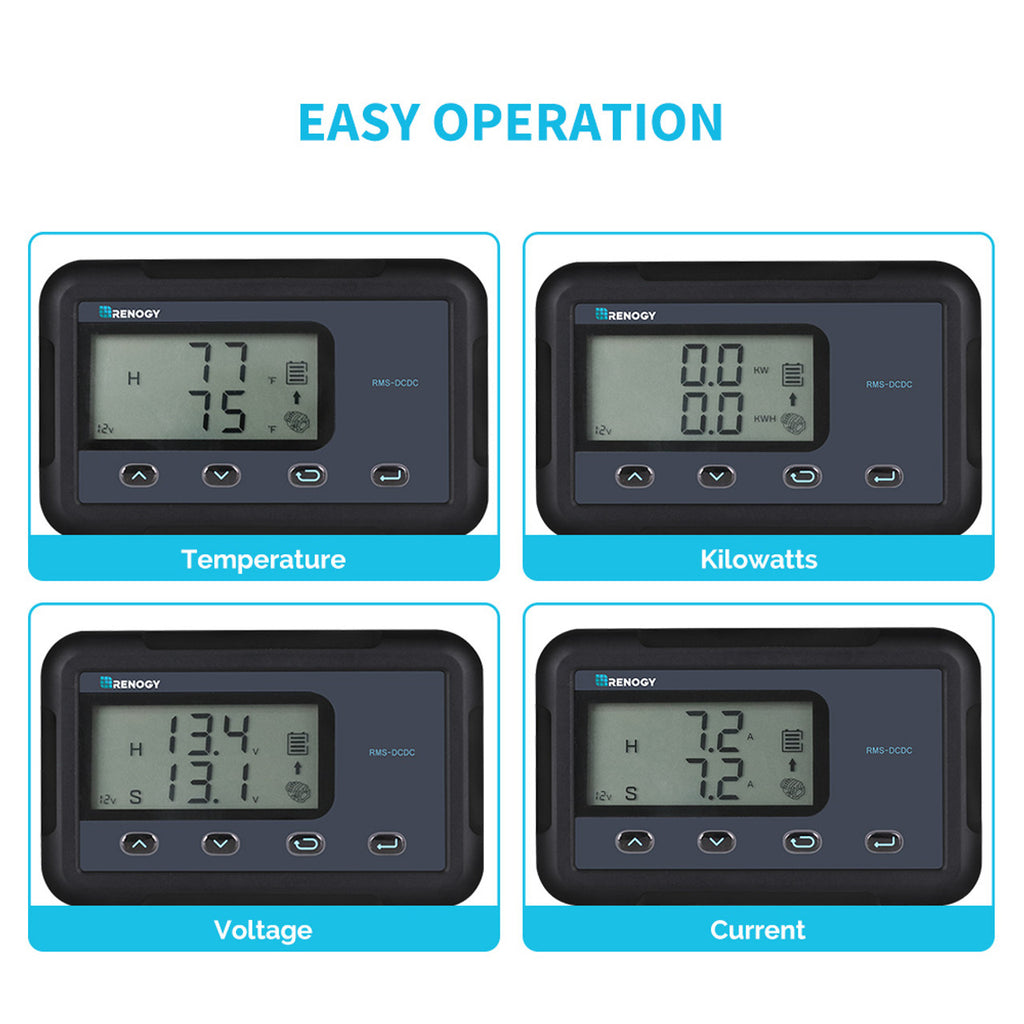

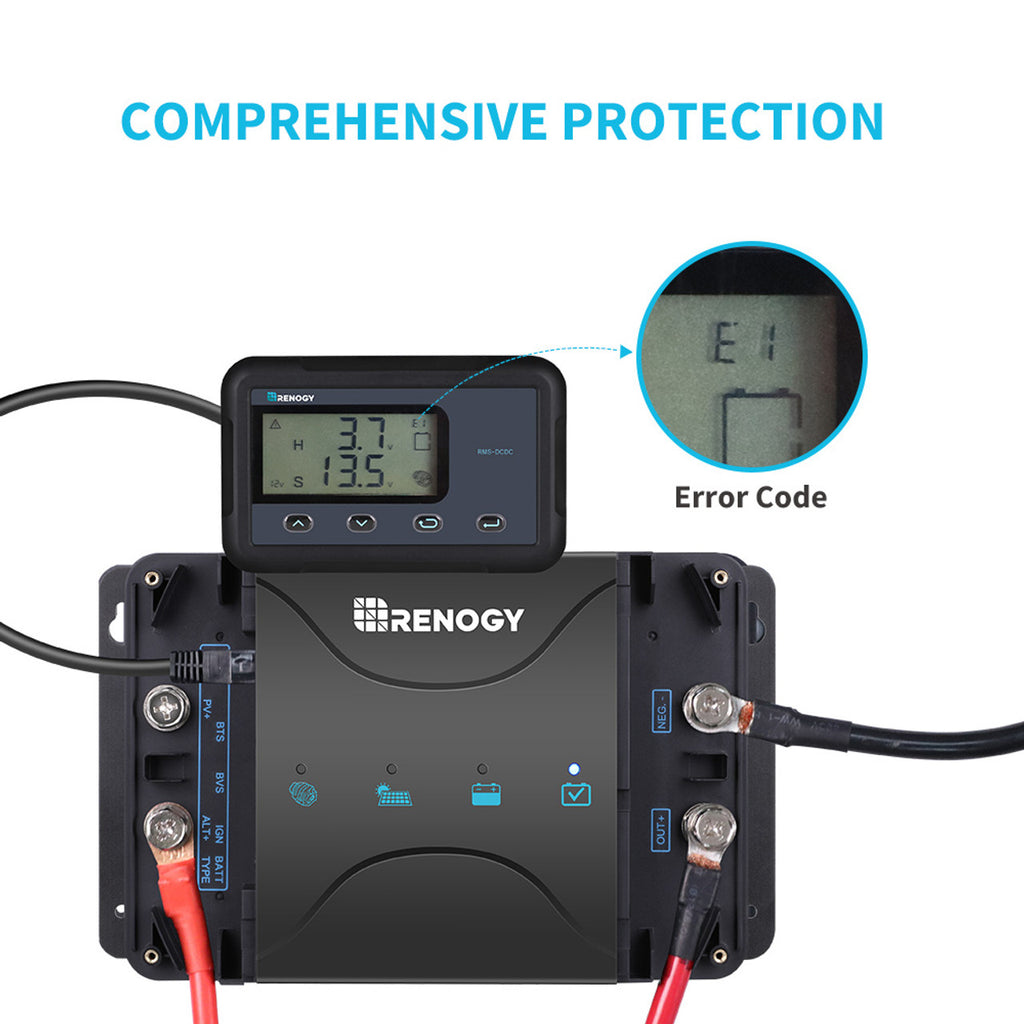

Renogy DC-DC comes with 4 keys that lets you navigate through the LCD to read system info, configure charging parameters and to identify any error codes.
Highlights:
- Dual battery monitoring - house and auxillary batteries

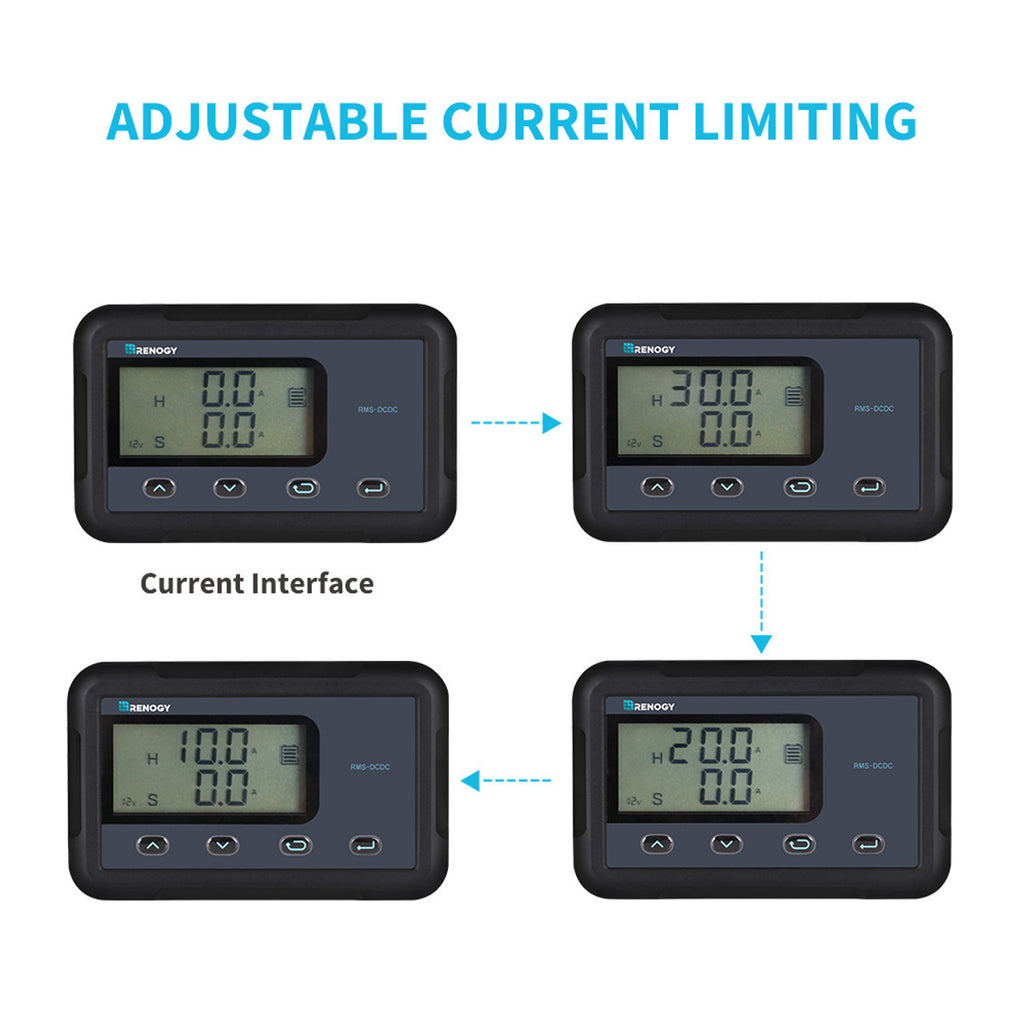

- Remotely adjust parameters - volts, amps - through the screen
- Plug and play module
- Accurate info with precise tracking of solar and alternator charging
Specifications:
Supply Voltage: 5VDC

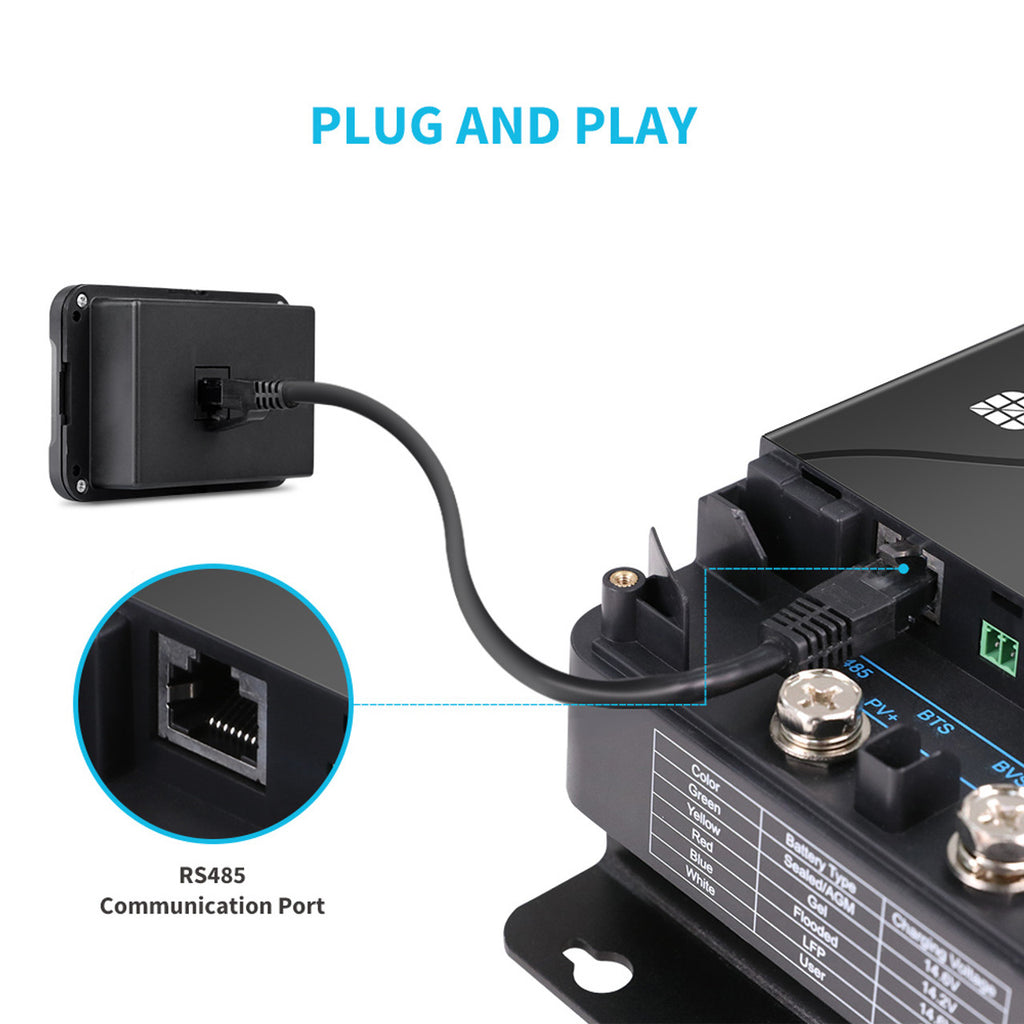

Communication Port: RJ45 (RS485 Protocol)
Supply Current: 30mA
Display: Backlit LCD
Power Consumption: <1W
User Interface: 4 Front Menu Buttons
Operating Temperature Range: -4°F~113°F / -20°C~45°C
Mounting System: Wall Mount
Voltage Accuracy: ±0.1V
Dimension: 2.76 x 4.33 x 1.25 inch
Current Accuracy: ±0.1A
Weight: 0.14 lbs
Wire Length: 16.4ft / 5m
Certifications: FCC
Warranty: 1-year material warranty
What's in the Box:
1 x Monitoring Screen for DC-DC MPPT Battery Charger Series
1 x User Manual
