Renogy DCC30S 12V 30A DC-DC On-Board Battery Charger with Renogy One
Bring home the gift of sustainable solar energy with Renogy DCC 30S, a 12V 30A DC-DC On-Board battery charger with 30V solar input, optimal thermal dissipation, a faster and efficient charging solution with 400W power even at 113-degree F. Monitor all your charging analytics with the handy Renogy One core and DC Home app.

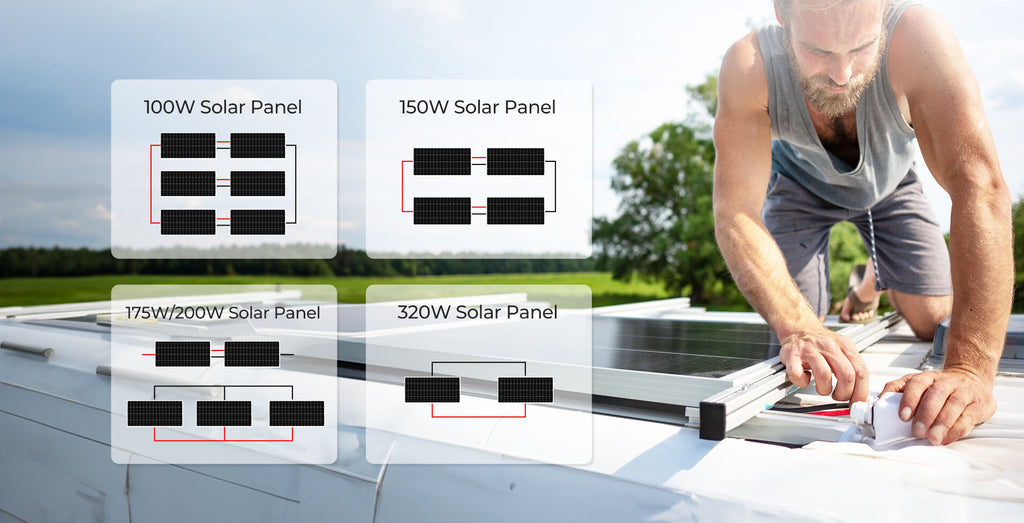

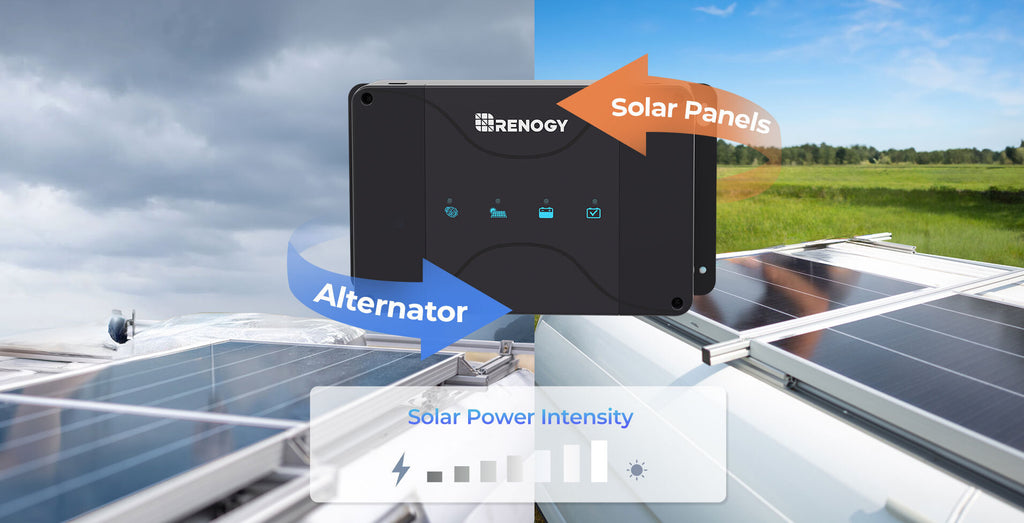

A versatile charging option, Renogy not only allows you to expand your solar modules with series connectivity but using advanced logic switches to the alternator for optimal performance in variable weather conditions when it encounters Low Solar Cutoff Mode.

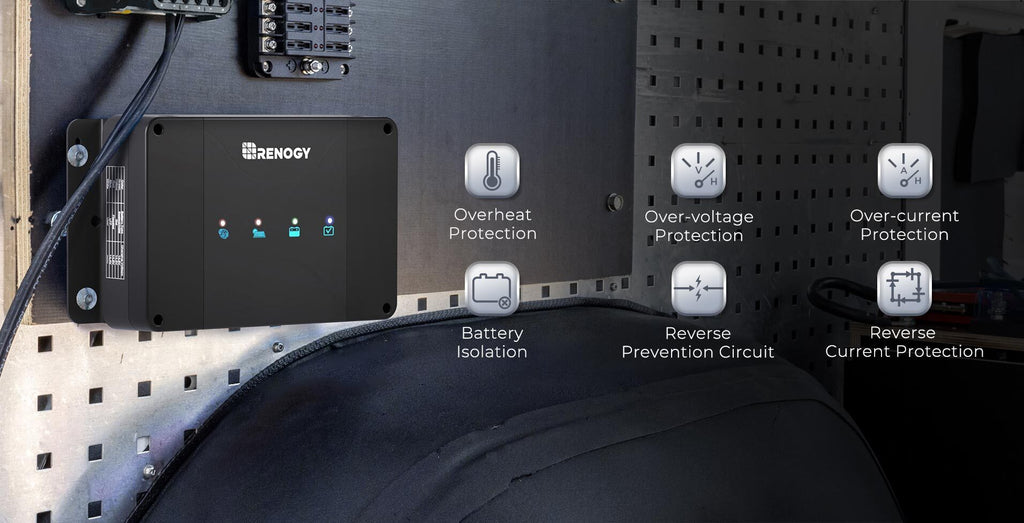

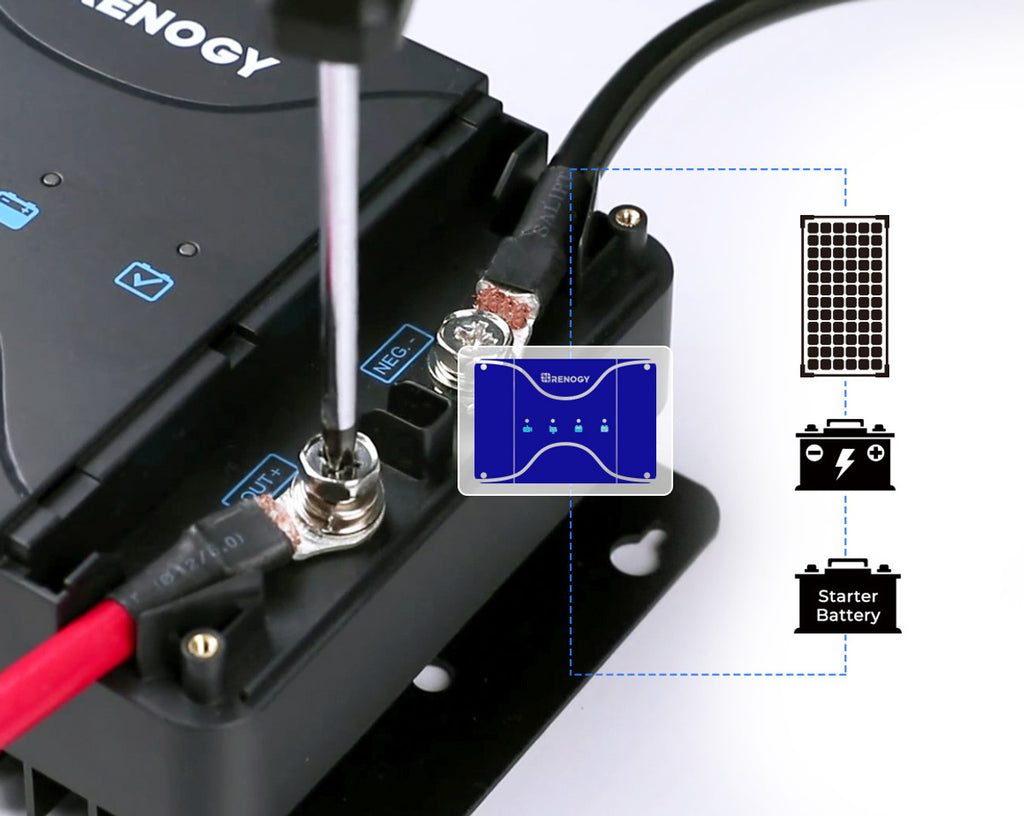

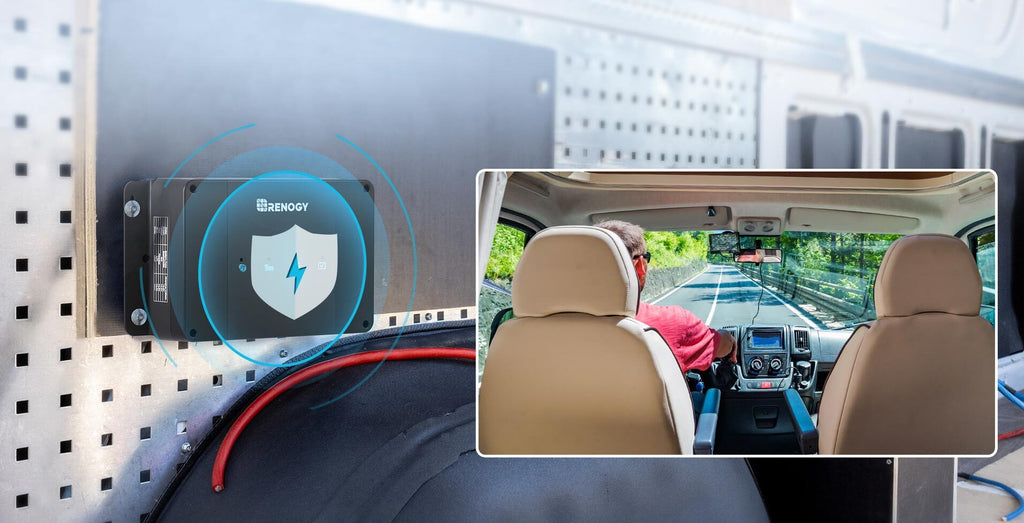

A space saving energy generator, the NEG-terminal design integrates solar panel array, starter battery and house battery terminals for easy and efficient installation. Comprehensive system protections are in place safeguarding your power solution ensuring optimal charging and consistent supply even in extreme temperatures.
While the reverse current protection keeps your solar panels protected at night from potential damages, Renogy's soft start circuit design ensures the charger's input voltage increases gradually, preventing sudden over voltage or discharge.
Specifications:
System Voltage: 12VDC
Battery Voltage Range: 9-16VDC
Maximum Charging Current: 30A
Battery Types: AGM/SLD , GEL ,FLD ,LI ,USER
Service Battery Charging Mode: MPPT
Charging Efficiency: 94%
Max. Solar Input Voltage: 30V
Max. Solar Input Power: 400W
Alternator Input Voltage: Traditional Alternator: 13.2-16VDC ; Smart Alternator (Euro 6): 12-16VDC
Max. Alternator Input Power: 400W
Self-consumption: 60mA
Temperature Compensation (Non-Lithium): -3mV / ℃ / 2V
Temperature Compensation (Lithium): 0mV / ℃ / 2V
Idle Power Consumption: ＜30mA
Ground Type: Negative
Terminal Size: M8*1.25 - 10mm
Terminal Range: 8AWG-4AWG
Operating Temperature Range: -31℉ to 149℉/-35℃ to 65℃
Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
Operating / Storage Humidity: 0%-95%, No Condensation
Dimensions: 9.61 x 5.75 x 3.03 in.
Weight: 3.11lbs
Communication Protocol: RS485
Certification: CE;ROHS;FCC Part 15 class B; ETL listed to UL 1741 & CSA C22.2
Material and workmanship warranty: 2 Year
Battery Chargers: DCCS Dual Input
Charge Controllers: DCCS Dual Input

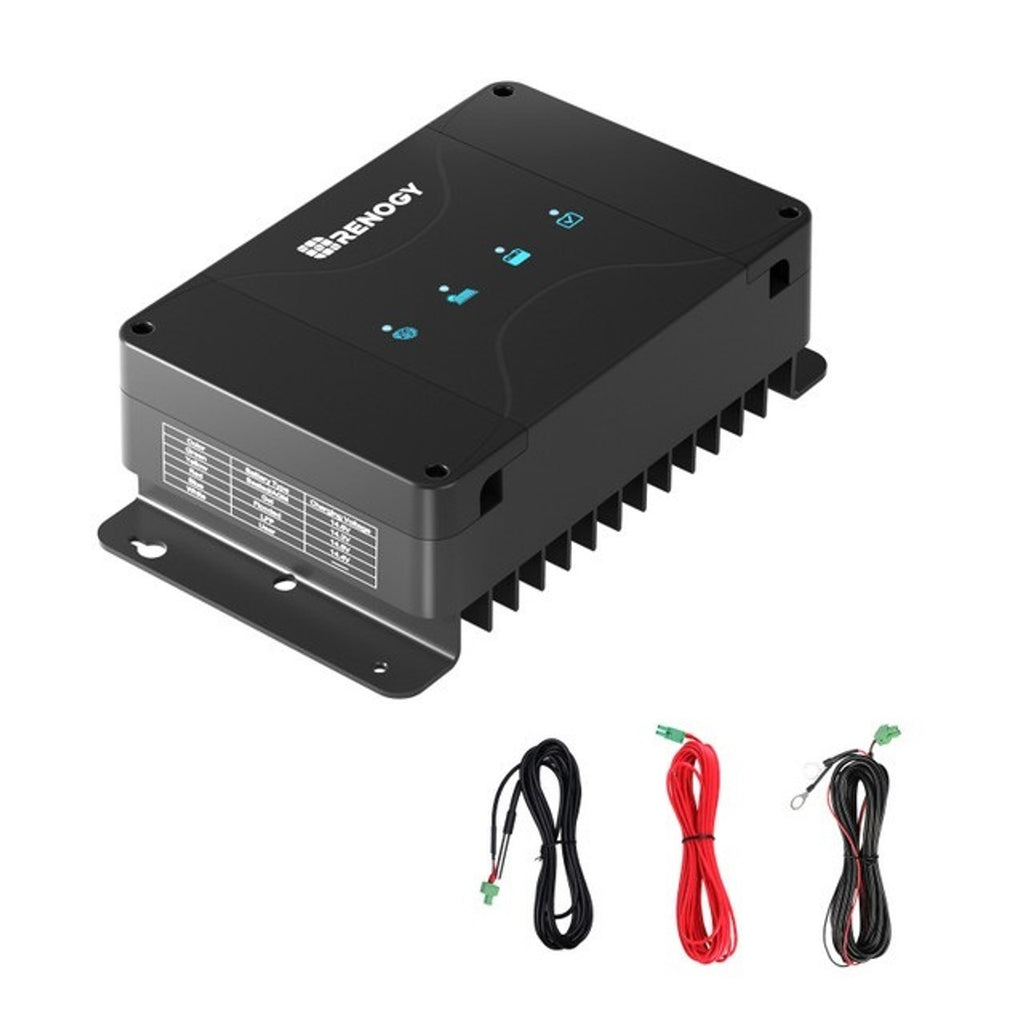

What's in the Box:
1 x 12V 30A DC-DC On-Board Battery Charger with Renogy ONE
1 x Battery Temperature Sensor
1 x Battery Voltage Sensor
1 x IGN Signal Wire
4 x Terminal Rings
1 x 40A ANL Fuse
2 x Solar Adapter Cable
1 x User Manual
