Renogy Deep cycle 12V 100Ah Core lithium battery

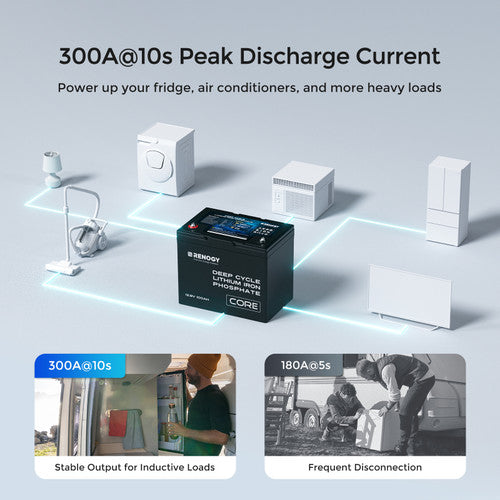

Boost your solar power system with Renogy Deep Cycle 12V 100Ah Core Lithium Battery, guaranteed to give 6% more than its rated capacity, 300A @10s peak power to handle heavy loads, supports series, parallel, and series-parallel connections, a 61% lighter, 14% smaller 100Ah core designed for next-level performance.
UNPARALLED PERFORMANCE

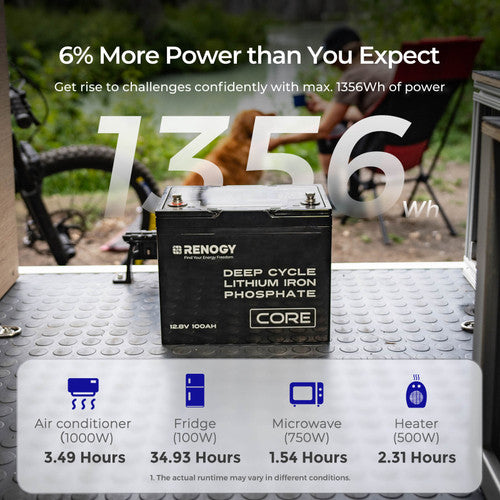

Enjoy 2.3 x more power and 10 x extended life with Renogy 100Ah Core Lithium Battery designed to tackle heavy power loads. At 1356Wh capacity Renogy's lithium battery can brave storms, hurricane, wildfire and any challenge that nature throws yet continue to deliver max 6% more than its capacity.
POWERFUL TO THE CORE
Renogy Deep Cycle 12V 100Ah LiFePO4 features EV-grade battery cells to last 10 x longer than any average lead acid battery and ensure consistent, lasting performance.
YEAR ROUND PROTECTION
Perfected to handle extreme weather conditions, Renogy comes with a built-in 100A battery management system (BMS) that effectively cuts off charge to battery when mercury plunges below 32°F.
RUGGED DESIGN
No matter how bumpy your ride gets, Renogy Lithium Battery's rugged structural design keeps its components well protected from bumps and hits, ready to power your home devices for 4 whole days.
Specifications:
Battery Type: Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C): 100Ah
Voltage: 12V
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charge Voltage: 14.4V
Maximum Charge Current: 100A
Maximum Discharge Current: 100A
Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

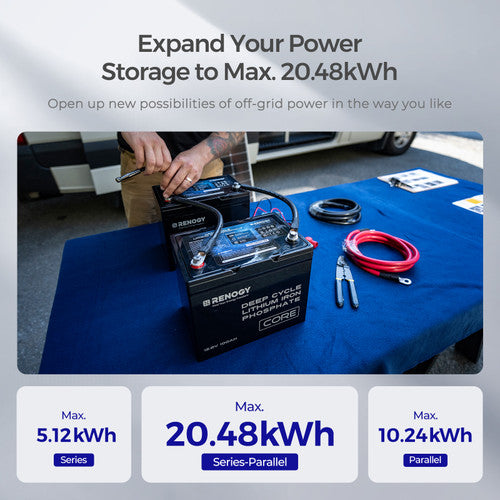

Connection Method: "Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)"
Communication Protocol: N/A
Recommended Terminal Torque: 10 N·m
Protection Rating: IP65
Housing Material: ABS
Terminal Bolt Size: M8
Dimensions: 10.24 x 6.65 x 8.31 in
Weight: 23.15 lbs.
Long Terminal Bolts (2): M8
MSDS, UN38.3, FCC , PSE, CE, UKCA, IEC62619: YES
Material and Workmanship Warranty: 5 Years
Shop By Scenario: RV, Vans & Camper
What's in the Box:
1 x Core - 12V 100Ah Lithium Iron Phosphate Battery
2 x Long Terminal Bolts
2 x Insulating Sleeve
1 x User Manual
