Renogy Deep Cycle 12V 200Ah Core lithium battery
Redefine the way you go off-grid with Renogy Deep Cycle 12V 200Ah Core lithium battery, a trusted upgrade from regular lead-acid, experience 2713Wh of green energy with 400A@10s to power heavy loads.
EXTRA JUICE MORE POSSIBILITIES
With more power comes more possibilities and Renogy Core now delivers 6% more than its max capacity, specifically engineered to provide you with uninterrupted power even during the worst storms, hurricane or blackouts.
POWERFUL TO THE CORE
Boasting of 10X life than any lead-acid battery, Renogy 12V 200Ah Core LiFePO4 boasts of EV-grade battery cells for consistently efficient performance in the long run.
YEAR ROUND PROTECTIONS
Renogy's built-in battery management system (BMS) senses low temperatures when mercury plunges below 32°F and automatically cuts off charging to protect battery against any fluctuations.
DURABLE CONSTRUCTION
No mattery how bumpy your terrain gets, Renogy battery's rugged structural design is crafted with precision to protect components from any movement as you navigate the wildest of trails.

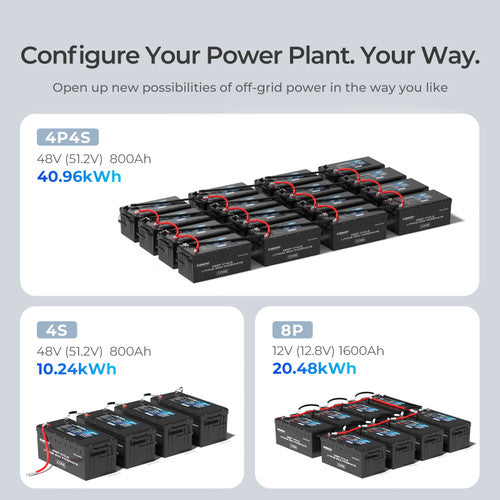

EXPAND YOUR ENERGY SYSTEM
Connect this 12V 200Ah core battery in series to build or upgrade your existing RV system to a 48V power generator. You can also connect our batteries in parallel to achieve extended runtime to stay off-grid as long as you desire. Yield max power by connecting sets of Renogy 12V Core lithium batteries in series-parallel to brace weather emergencies.
Specifications:
Rated Capacity (0.5C, 25°C): 200Ah
Voltage: 12V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charge Voltage: 14.4V
Maximum Continuous Charge Current: 100A
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 400A@10s
Operation Temperature Range: Charge: 32°F to 131°F / 0°C to 55°C Discharge: -4°F to 140°F / -20°C to 60°C
Storage Temperature Range: -13°F to 149°F / -25°C to 65°C
Operation Relative Humidity: 10% to 95%
Dimension (L x W x H): 20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm
Weight: 47.3 lbs. / 21.45 kg
Terminal Bolt Size: M8 x 1.25 x 15 mm
Protection Rating: IP65
Long Terminal Bolts (2): M8
MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES
Material and Workmanship Warranty: 5 Years
What's in the Box:
1 x Core - 12V 200Ah Lithium Iron Phosphate Battery
2 x Long Terminal Bolts
2 x Insulating Sleeve
1 x User Manual
