Renogy IP67 DC-DC with MPPT Battery Charger

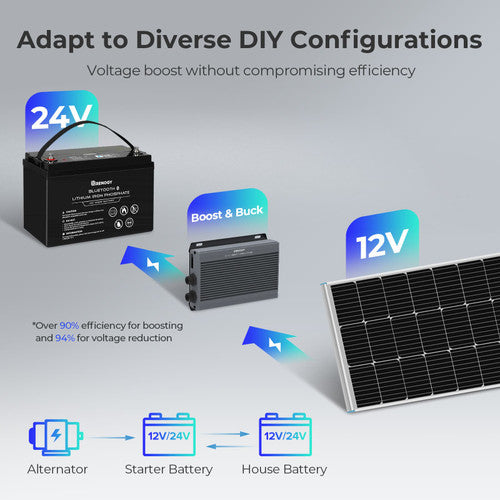

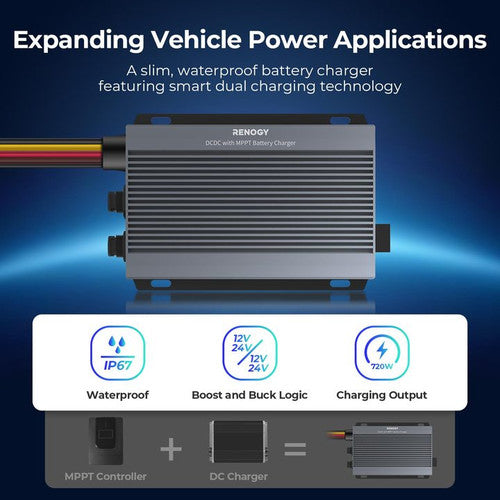

Renogy IP67 DC-DC with MPPT battery charger is the dual charging solution tailor-made for compact spaces. This slim, waterproof charger with intelligent boost and buck logic delights DIY enthusiasts with 12V/24V-12V/24V voltage systems compatibility.
A perfect add on to your solar energy system, Renogy battery charger's intelligent logic prioritizes solar energy, taking the load off your generator and efficiently powering your house battery with sustainable, renewable green energy.

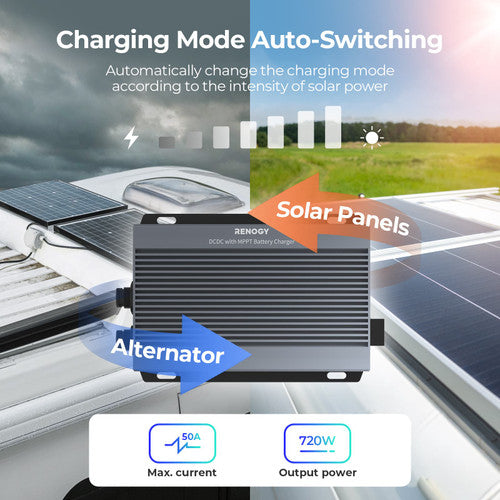

An impressive 720W output supplies sufficient power to your RV appliances and home gadgets. Renogy IP767 dual input charger automatically adjusts modes based on sunlight intensity for optimal energy tapping.

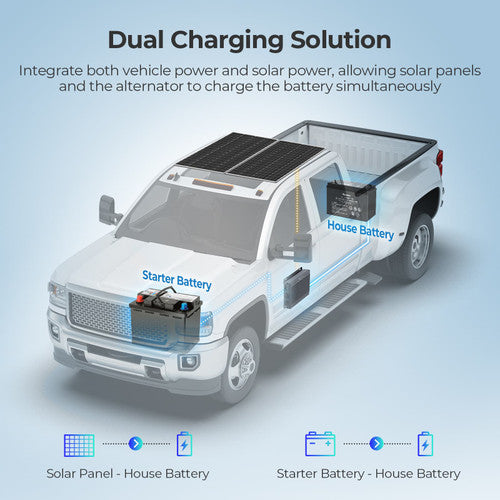

A sustainable energy solution for your eco-friendly goals, Renogy 12V/24V DC-DC boasts of a robust 50A current and efficiently toggles between solar and generator charging providing you with an uninterrupted power supply.
Highlights:
- Intelligent Dual Charging Mode
- Compatible with wider range of voltage
- Space optimized, lightweight, compact construction
- Optimized charging efficiency
- Comprehensive electronic protections for safe charging
- Robust and resilient design
Specifications:
System Voltage: 12V/24V - 12V/24V
Solar Input Voltage: 50 VDC
Output Voltage: 9-32 VDC
Alternator Input: 9-32 VDC
Maximum Output Current Rating: 12V@50A ; 24V@25A
Output Power: 720W
Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating: 75A-100A
Output Fuse Rating: 75A-100A
MPPT Tracking Efficiency: 99%
MPPT Charging Efficiency: 97%
Conversion Efficiency: 94%
Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption: ＜100mA
Terminal Range: 8AWG-4AWG
Communication Protocol: Modbus ; RV-C
Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
Humidity: 0%-95%, No Condensation
Maximum Operating Altitude: 3500m
Enclosure Rating: IP67
Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
Weight: 4.10 lb / 1.86 kg
Certification: UL1741;CE;RoHS;FCC Part 15 class B
Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
Material and workmanship warranty: 3-year material warranty
What's in the Box:
1 x IP67 50A DC-DC Battery Charger with MPPT
1 x Battery Temperature Sensor
4 x Terminal Rings
1 x Install Screw (ST4 * 20mm)
1 x User Manual
