Renogy 400W 12 Volt Complete Solar Kit with Two 100Ah Deep-Cycle AGM / LiFePO4 Batteries
The ultimate Solar Kit from Renogy, the 400W 12Volt with 2 100Ah Deep-Cycle AGM / LiFePO4 Batteries is a complete DIY kit with every knick-knack you will ever need to set up your sustainable, reliable, green energy on the go. From medium to large camper RVs, garden sheds, your craving to go off-grid has arrived with Renogy.
ULTIMATE SOLAR PANEL
Renogy with its Grade A+ Solar Cells at 166mm with absolutely no microcracks and 9 bus bars is without doubt the ultimate solar panel that guarantees optimal energy conversion and minimal power loss.
WATER RESISTANCE
A splash resistant junction box with waterproof solar connectors keep your solar panel well protected against rains or splashes, perfect for your watery adventures.
WINTER-READY SOLAR
No matter where your trail takes you, our low iron tempered glass with a rugged aluminum frame can withstand snow loads of up to 5400pa and brave winds up to 2400pa so you will never run out of power even in challenging weather conditions.
SAFER BATTERY CHARGING
Even as the panels are busy harvesting the supreme solar power, Renogy Rover 40A MPPT Solar Charge Controller actively monitors voltage to safeguard your batteries and systems from short circuit, overvoltage, overcurrent, reverse current, overcharge and over discharge.
PRECISION CHARGING
Track your battery's temperature all year round with the included temperature sensor that helps avoid under-charging in the colder -40 degree F and over charging in the hottest 149 degree F.
MAINTENANCE FREE POWER
Renogy boasts of proprietary quinary alloy plates and treated plate grids, rugged enough to handle both low internal resistance and discharge currents of 2000A (5s). No sloshing of electrolytes even if your RV is moving in good speed as the contraption is tightly sealed in absorbed glass mat separators.
Specifications:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs
ROVER LI 40A MPPT CHARGE CONTROLLER
Nominal System Voltage: 12V/24V Auto Recognition
Rated Charge Current: 40A
Max. PV Input Voltage: 100 VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Max Battery Voltage: 32V
RENOGY 2000W 12V PURE SINE WAVE INVETER
Continuous Output Power: 2000W
Peak Power Rating: 4000W
Output Voltage: 115V
Dimensions: 17.8 x 8.6 x 4 in
Weight: 11.7 lbs
DEEP CYCLE AGM BATTERY 12 VOLT 100Ah
Battery Type: AGM
Rated Capacity: 100Ah (10 Hour Rate to 10.5V)
Nominal Voltage: 12V
Cycle Use Voltage: 14.4V~14.8V
Dimensions: 13.1 x 6.9 x 8.6 in
Weight: 63.9lbs
100Ah SMART LITHIUM IRON PHOSPHATE BATTERY W/ BLUETOOTH & SELF-HEATING FUNCTION
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100AH
Voltage Range: 10V to 14.8V
Dimensions: 10.6 x 7.6 x 8.1 in
Weight: 26.9 lbs.
WARRANTY
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty

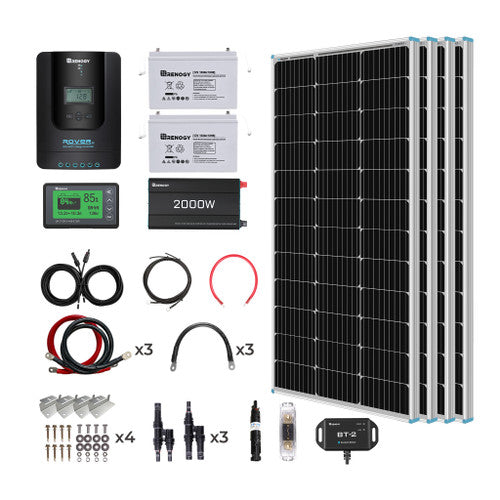

What's in the Box:
2 x 2 Pieces of 100W Monocrystalline Solar Panel
1 x 40A MPPT Solar Charge Controller
2 x 12V 100Ah Deep Cycle AGM Battery
1 x 2000W 12V Pure Sine Wave Inverter
4 x 4 Set of Solar Panel Mounting Z Bracket
3 x Solar Y Branch Connectors MMF+FFM Pair
1 x 20FT 10AWG Solar Panel to Charge Controller Adaptor Kit
1 x 8FT 8AWG Battery to Charge Controller Tray Cables
2 x 16In 4AWG Copper Battery Interconnect Cable for 5/16 in Lugs
1 x 2FT 8AWG ANL Fuse Cable with Double Ring Terminals for 3/8 in Lugs
1 x 40A ANL Fuse Set w/ Fuse
1 x 30A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
2 x Battery Inverter Cables for 3/8 in Lugs
1 x 500A Battery Monitor With Shunt
1 x BT-2 Bluetooth Module
1 x User Manual
