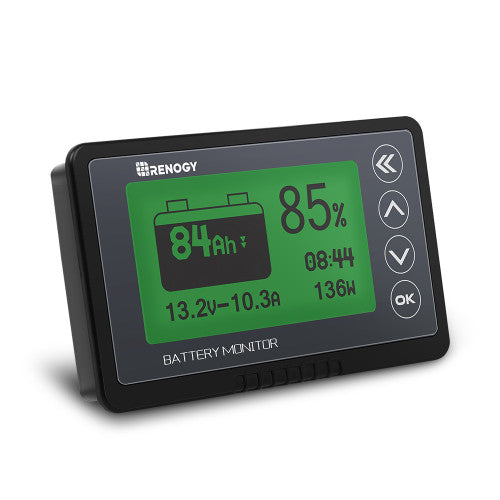

Renogy RBM500 - 500A Battery Monitor

Eliminate guess work of your battery health with Renogy RBM 500A Battery Monitor, a precision performance monitor for most kinds of batteries. Compatible with voltage ranges of 10V - 120V and up to 500A, this shunt type monitor gives you most accurate real-time voltage and current draw info.

LOW POWER CONSUMPTION DESIGN ensures the backlight is shut off when charging current is <100mA. Equipped with data storage, it automatically saves the last test data when shut off.

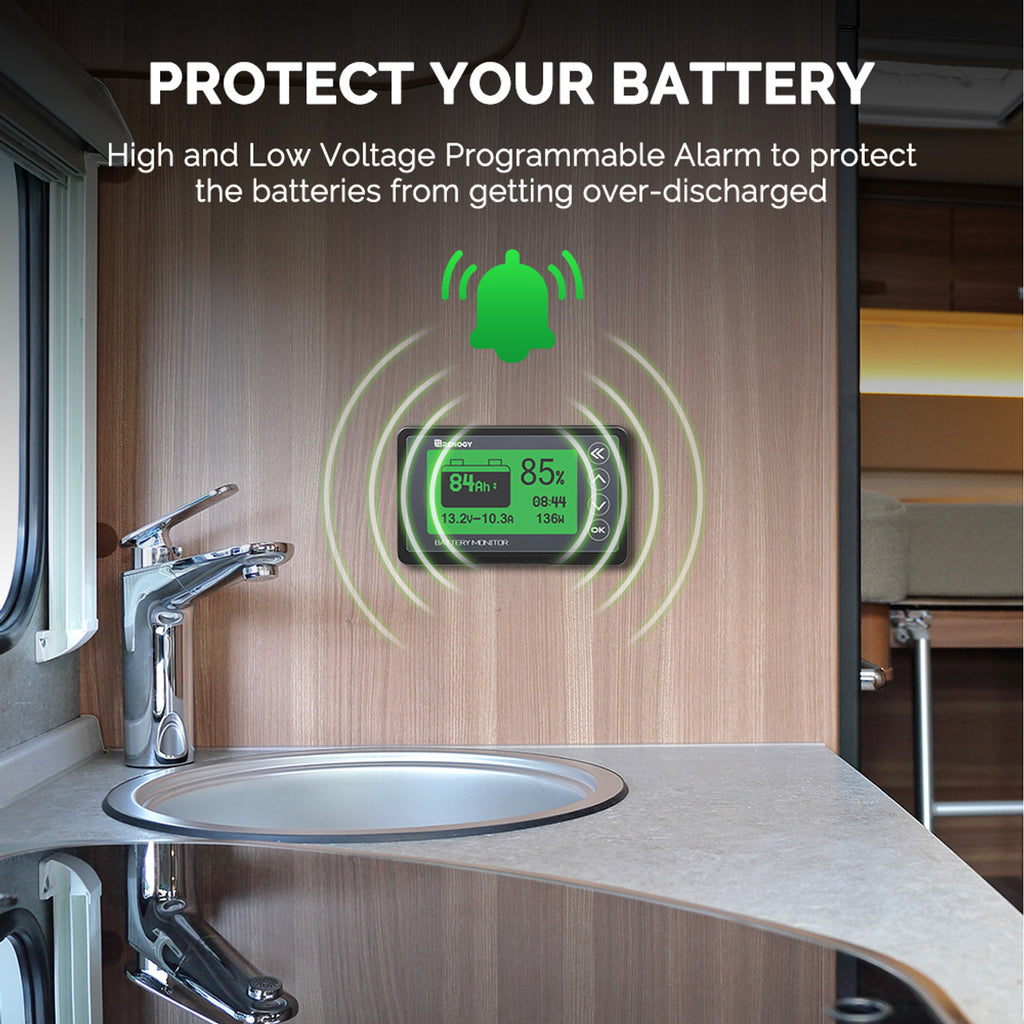

ULTIMATE BATTERY PROTECTION with Renogy 500A battery monitor, doesn't just let you monitor the current detection and charge accuracy, it also allows you to set alarm for voltage fluctuations and instantly alerts you with the backlight and voltage value.

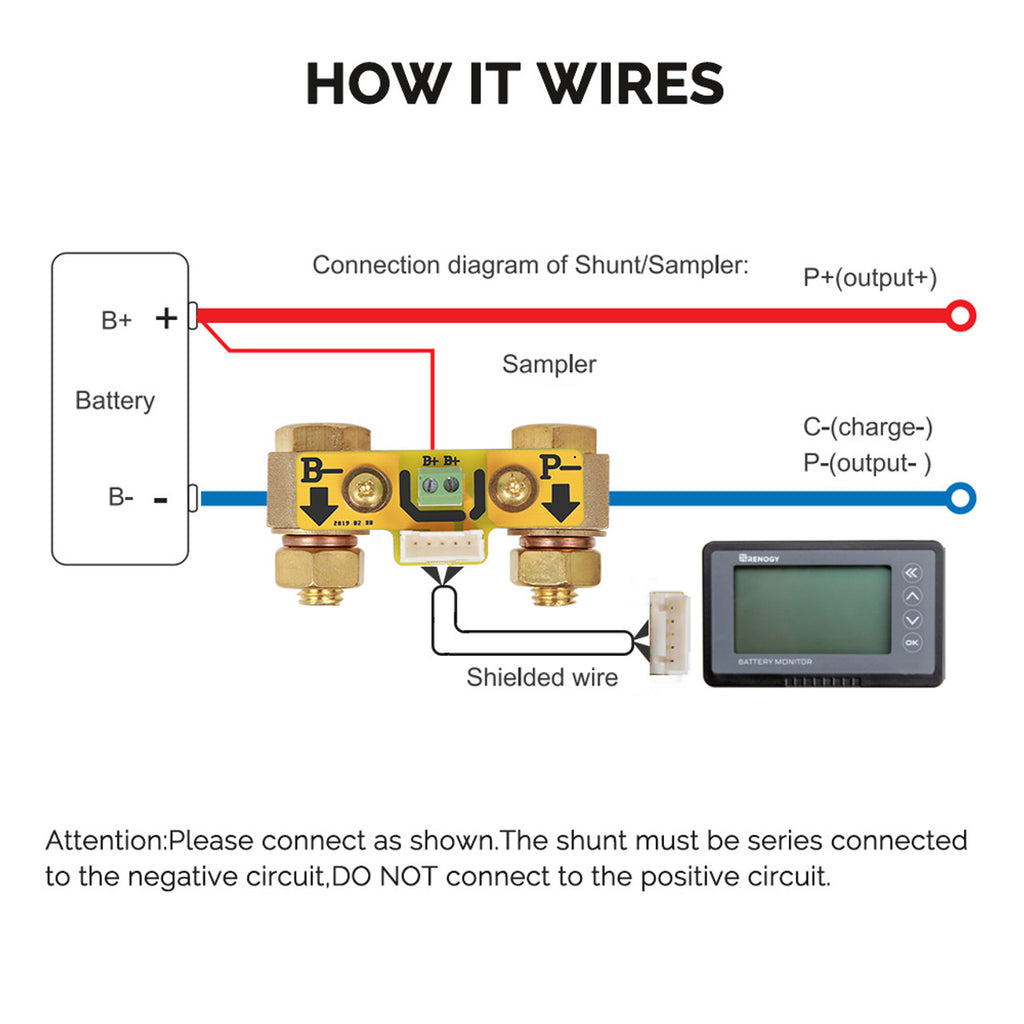

EASY INSTALLATION the package includes every knick-knack required to mount the monitor and the shunt for remote monitoring.

Specifications:

Working Voltage: 10-120V

Standby Dissipation: 1-2mA

Working Dissipation: 10-15mA

Preset capacity value: 0.1-9999.0 AH

Backlight on current (>50A): 100mA

Compatible Battery: Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid

Display: LCD with Green Backlight (brightness is adjustable)

Capacity Accuracy: ±1%

Current Accuracy: ±1%

Voltage Accuracy: ±1%

Shielded Wire Length: 20 ft/6 m

Weight (LCD Interface): 2.6 oz / 75 g

Size (LCD Interface): 3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm

B+ Wire Length: 3 ft/1 m

Temperature range: 14-140°F(-10-60°C)

Material Warranty: 1 Year

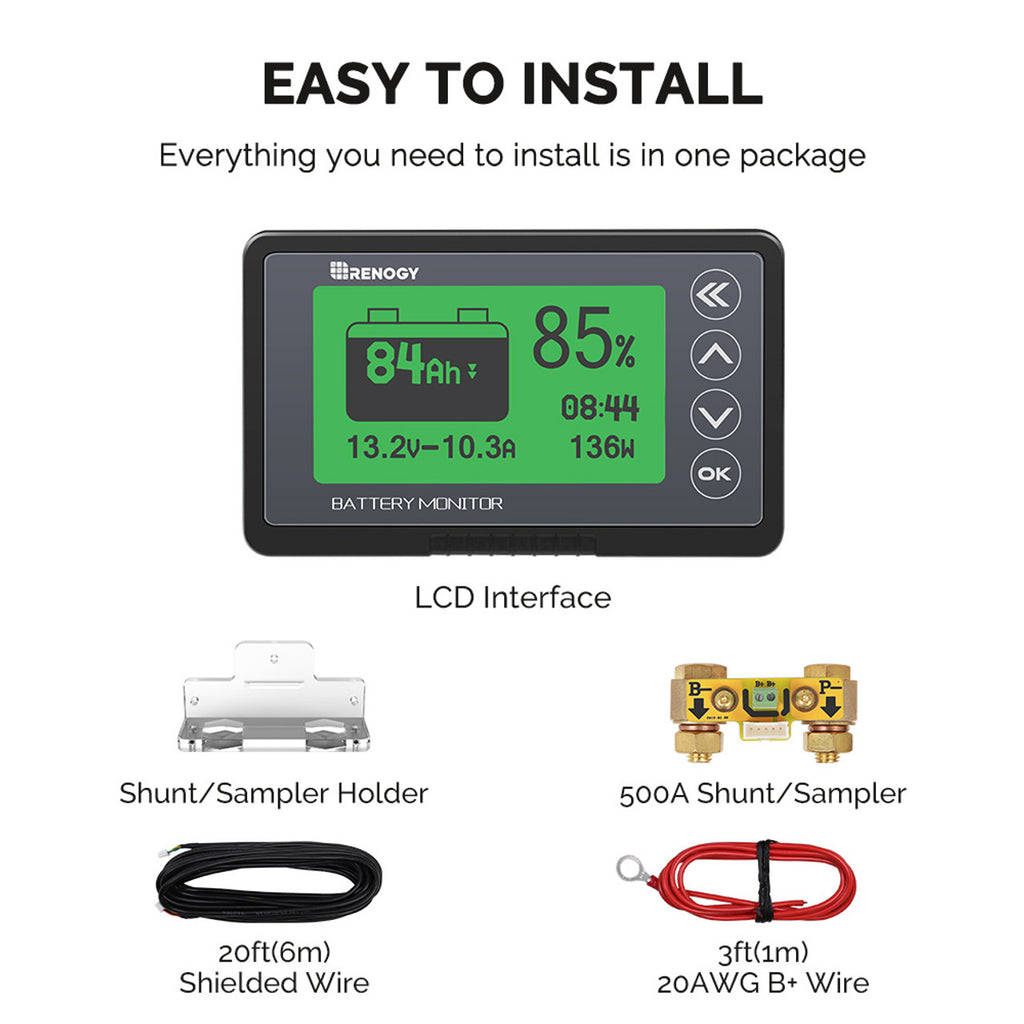

What's in the Box:

1 x LCD Interface

1 x 500A Shunt/Sampler

1 x Shielded Wire

1 x B+ Wire

1 x Shunt Holder

1 x User Manual
