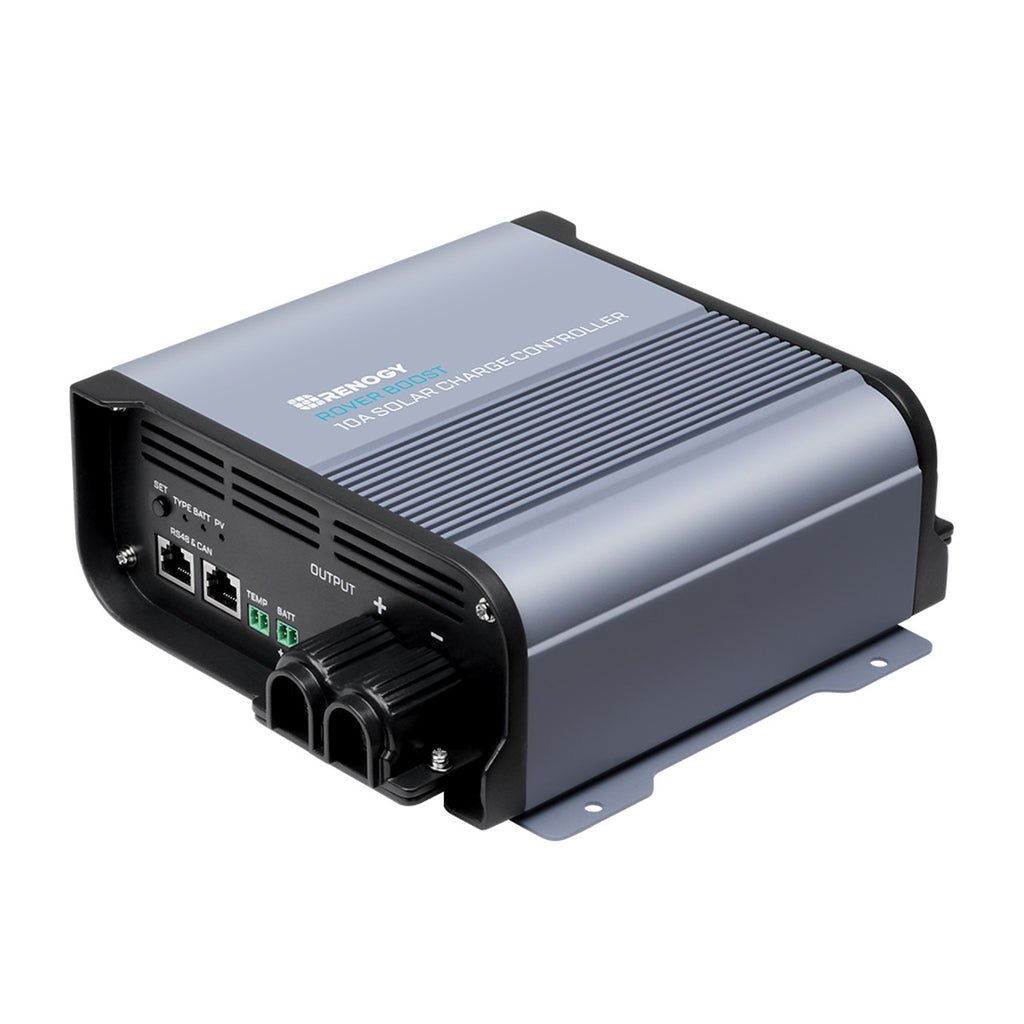

Renogy RCC10RVRB - Rover Boost 10A MPPT Solar Charge Controller

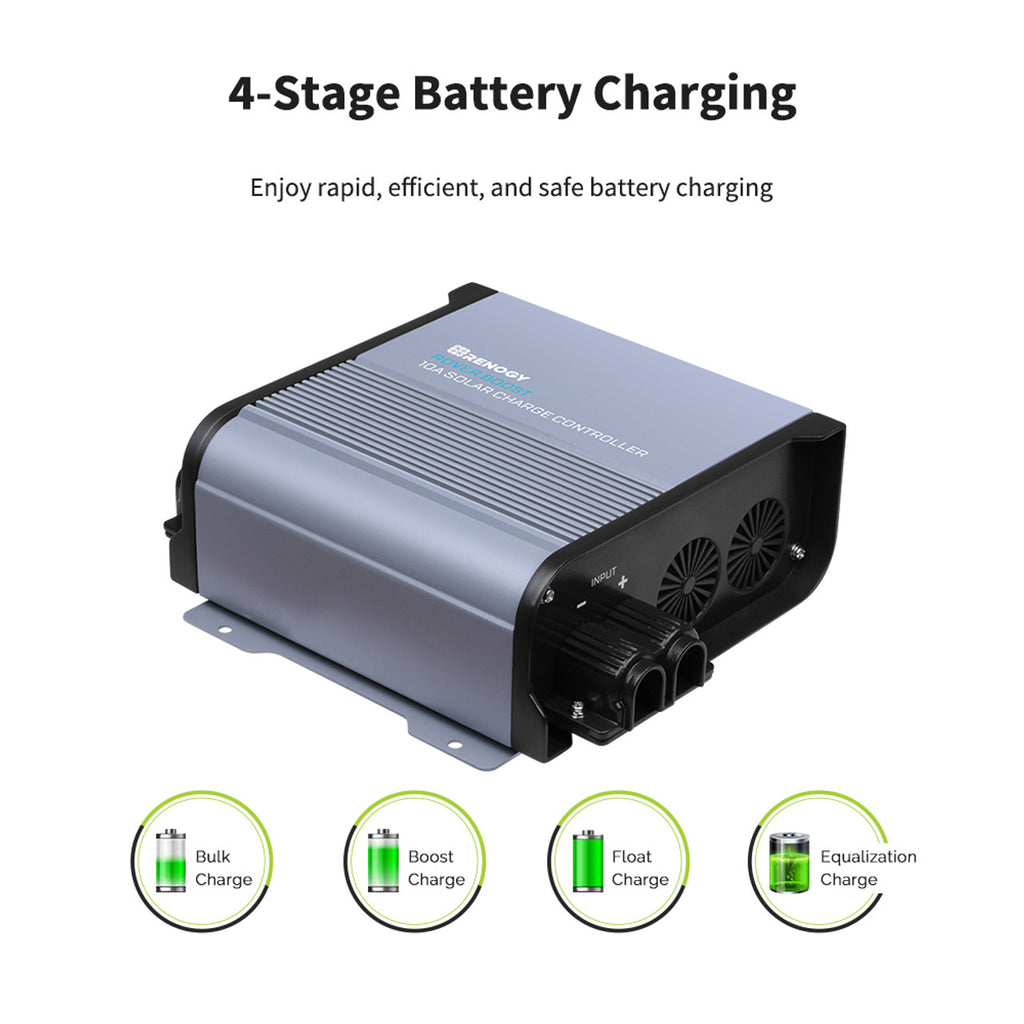

Renogy introduces Rover Boost, the 10A MPPT solar charge controller to boost the voltage of your 12V/24V solar panel to charge 36V/48V batteries. Renogy's advanced MPPT technology provides 99% tracking efficiency and 90% charge conversion with 4 preset charging modes for all types of batteries.
Tailor-made for golf carts and electric vehicles, this 10A rover boost MPPT solar charge controller is designed for confined spaces. Rover Boost needs minimal configuration and comes preset to charge lead-acid and lithium batteries. Customize your charge profiles to accommodate AGM/Sealed, Gel, Flooded batteries.

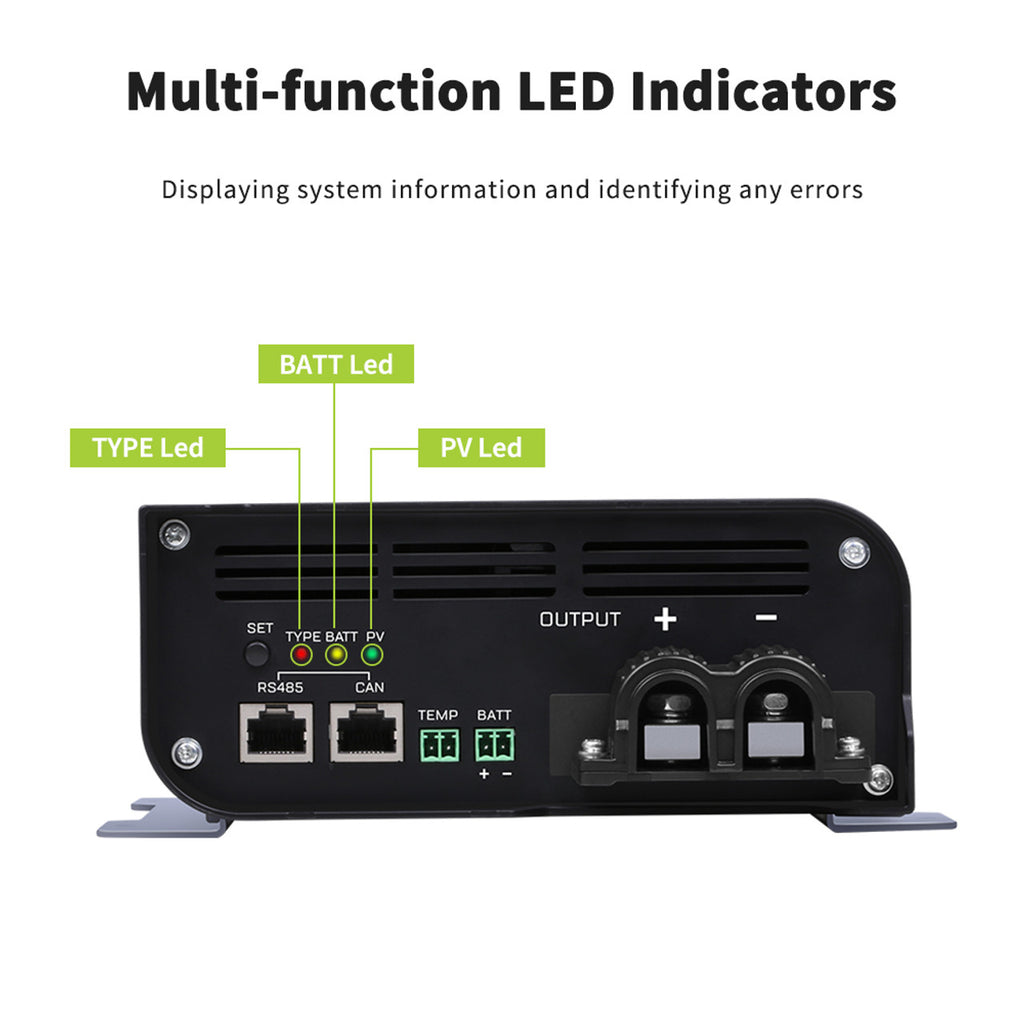

Compatible with Renogy Bluetooth monitor, the 10A MPPT solar charge controller can be remotely monitored and controlled via smartphone. Intuitive LED indicators are in place that help identify any errors in the performance.
Specifications:
Nominal System Voltage: 36V / 48V, Auto Recognition (Non-Lithium)
Rated Charge Current: 10A
Max. PV Input Power: PV Input Power: 500W/36V; 650W/48V；Charging Power: 450W/36V; 600W/48V
MPPT Voltage Range: 15 ~ 25VDC / 36V；15 ~ 40VDC / 48V
Solar Input Voltage Range (VOC): 15 ~ 25VDC / 36V；15 ~ 40VDC / 48V
Max Input Current (short-circuit, Isc): 35A
Power Limiting Protection: Up to 600W/36V; 800W/48V
Battery Operating Range: 30 ~ 65 VDC
Power Consumption: ≤ 2W
Ground Type: Common Negative Lug (M3)
Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*

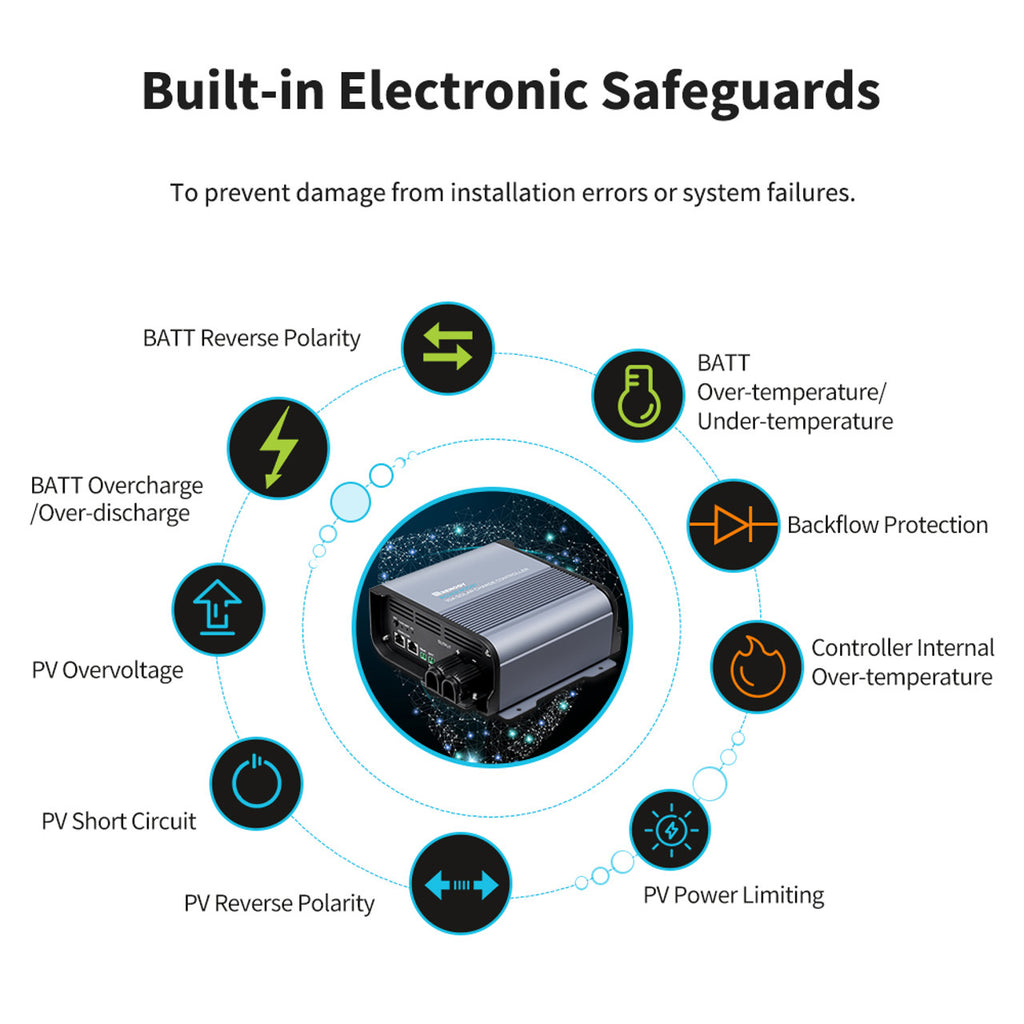

Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection
Protection Level: IP20
Operating Temperature Range: -31°F ~ 149°F / -35℃ ~ + 65℃
Storage Temperature Range: -40°F ~ 176°F / -40℃ ~ + 80℃
Operating / Storage Humidity: 0-95% RH
Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)； 0mV / ℃ / 2V; no compensation (Lithium)Dimensions: 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm
Weight: 2.65 lbs / 1.2 Kg
Max. Terminals Size: 16 ~ 2 AWG, M6-12x1
Material and workmanship warranty: 2 Year
What's in the Box:
1 x 36V/48V Rover Boost 10A MPPT Solar Charge Controller
1 x User Manual
