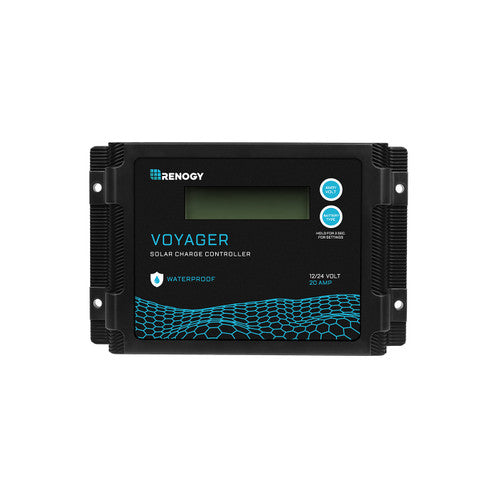

Renogy RCC20VOYP - Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller, 20 Amp
A smart add on to your solar energy system, the Renogy New Edition Voyager is a 20A solar charge controller with advanced smart PWM tech that boosts the charging efficiency of your batteries. This waterproof design is perfected for outdoors and supports 12V and 24V off-grid scenarios.

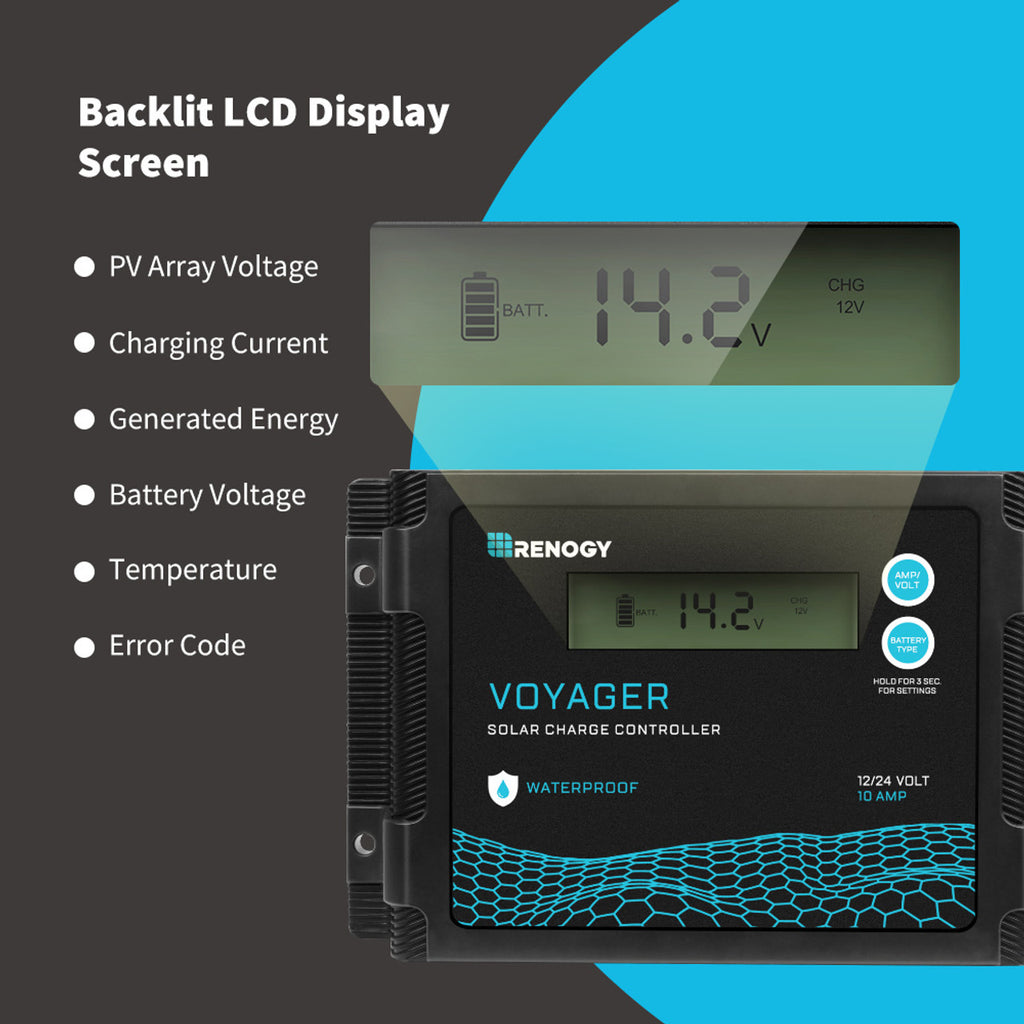

Compatible with 4 different battery types including lithium iron phosphate, the controller features a backlit LCD monitor through which you can track system info of solar panels, battery and controller protections.
Highlights:

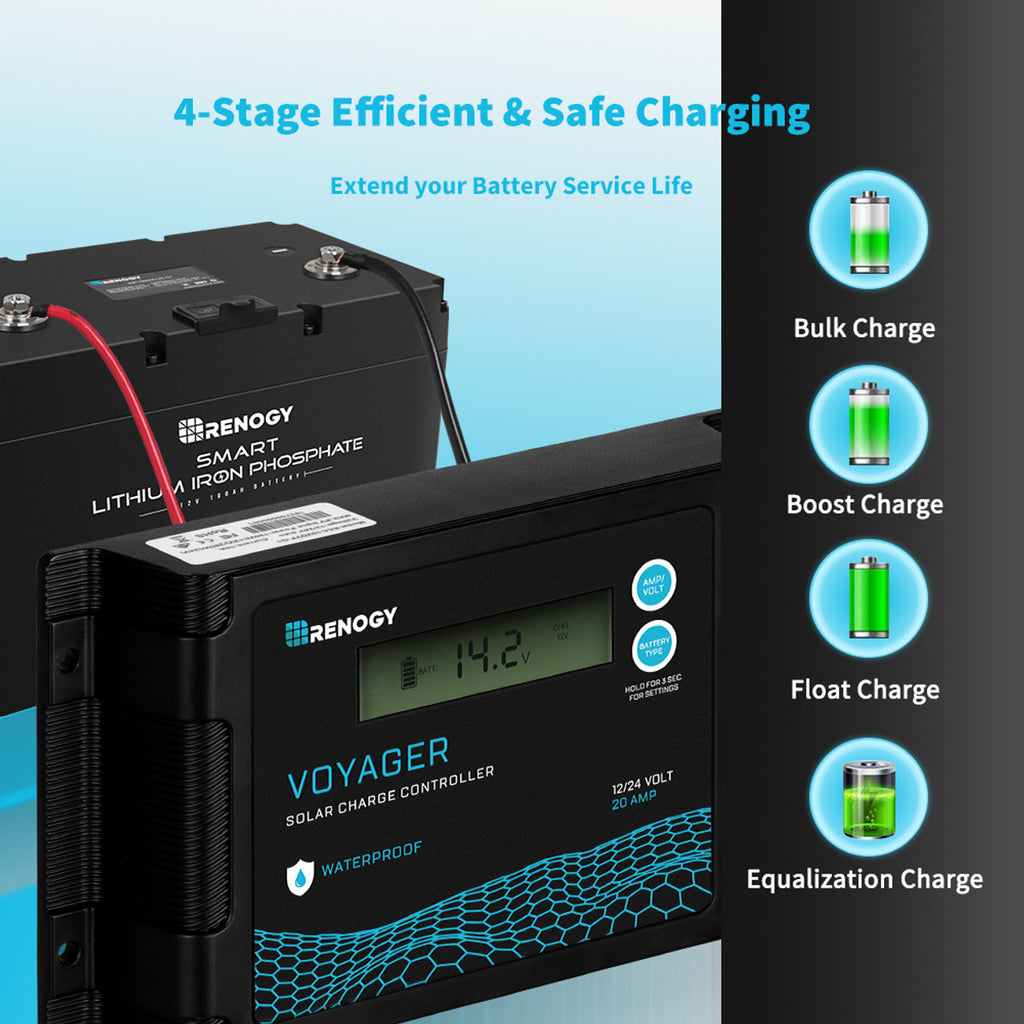

- Efficient 4-stage safe charging - Bulk, Absorption, Float, Equalization
- Compactly designed to fit confined spaces
- Common positive ground controller ensures charging safety
- Temperature sensor port to record climate changes
- Accurate temperature compensation to allow consistent and safe charging
- Requires only 0.22w/h energy level to charge your battery
- Automatic voltage detection of 12V and 24V systems
Specifications:
Nominal System Voltage: 12/24V Auto-Detection (For Non-Lithium Batteries)
Rated Charge Current: 20A
PV Input Voltage Range: 15V-55V
Max. Pv Open Circuit Voltage: 12V@25V 24V@55V
Max. PV Input Power: 12V @ 260W / 24V@520W
Battery Types: SLD/AGM, GEL, FLD. LI
Power Consumption: 12V @ 0.24W / 24V@0.74W
Max Battery Voltage: 32V
Ground Type: Positive

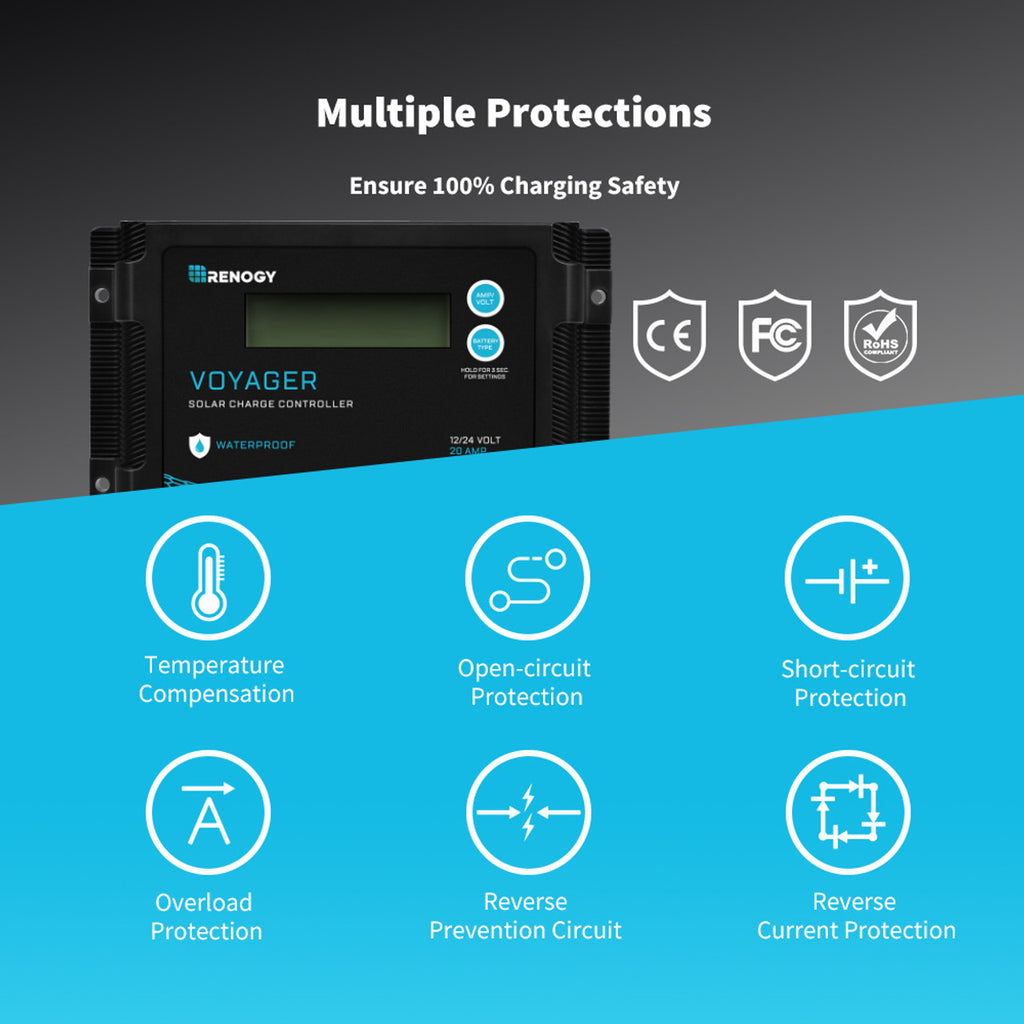

Electrical Protection: Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection

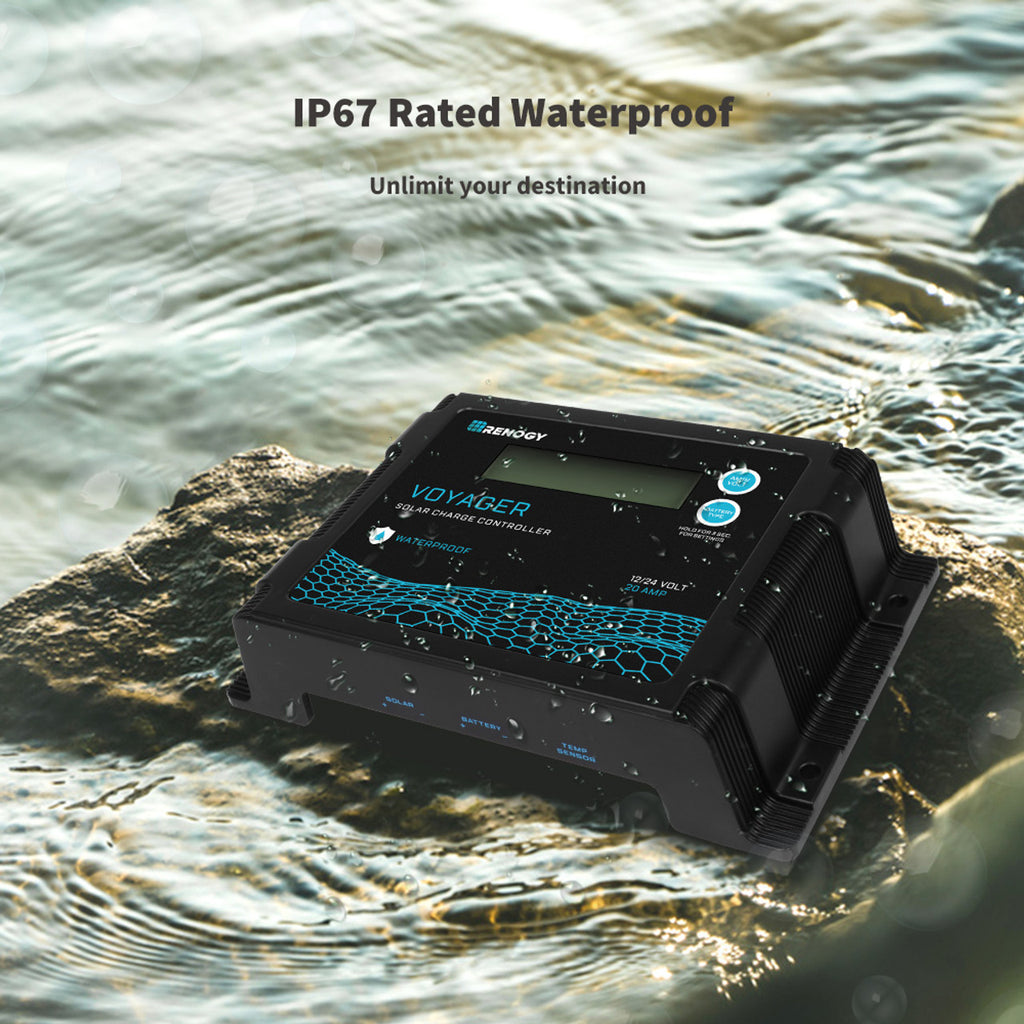

Protection Level: IP67
Operating Temperature Range: -31°F - 113°F
Storage Temperature Range: -31°F - 167°F
Operating / Storage Humidity: 10%-90%, No Condensation
Temperature Compensation: '-3mV/C/2V excludes LI
Dimensions: 6.08*3.83*1.40 in
Weight: 0.55Ibs
Max. Cable Size: 6 AWG
Controller Terminals: 20 - 6 AWG, 2-pin terminals
Accessories: 2-year material warranty
What's in the Box:
1 x New Edition Voyager 20A PWM Waterproof Solar Charge Controller, 20 Amp
1 x User Manual
