Renogy RCM-HUB - Renogy Communication Hub

Connect one BT-2 Bluetooth module to several Renogy appliances with an RJ45 connector and RS485 communication protocol using the Renogy Communication Hub. You can now monitor multiple devices at once with your phone! It also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices.

Highlights:

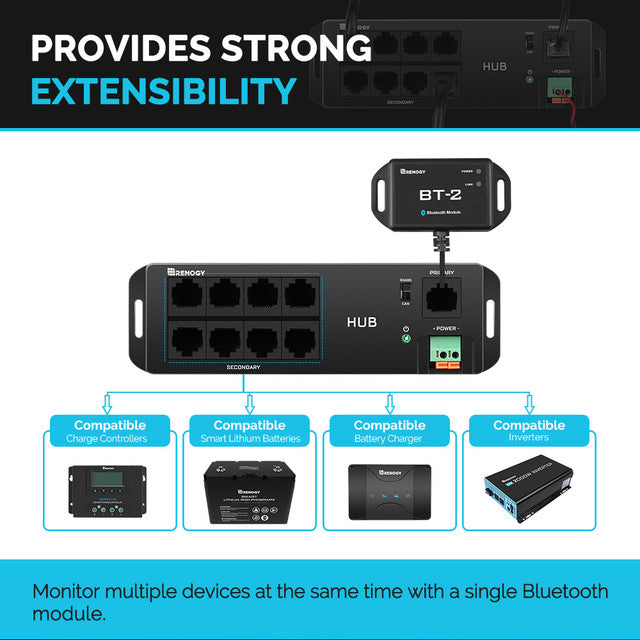

•    Monitor multiple devices at the same time with a single Bluetooth module

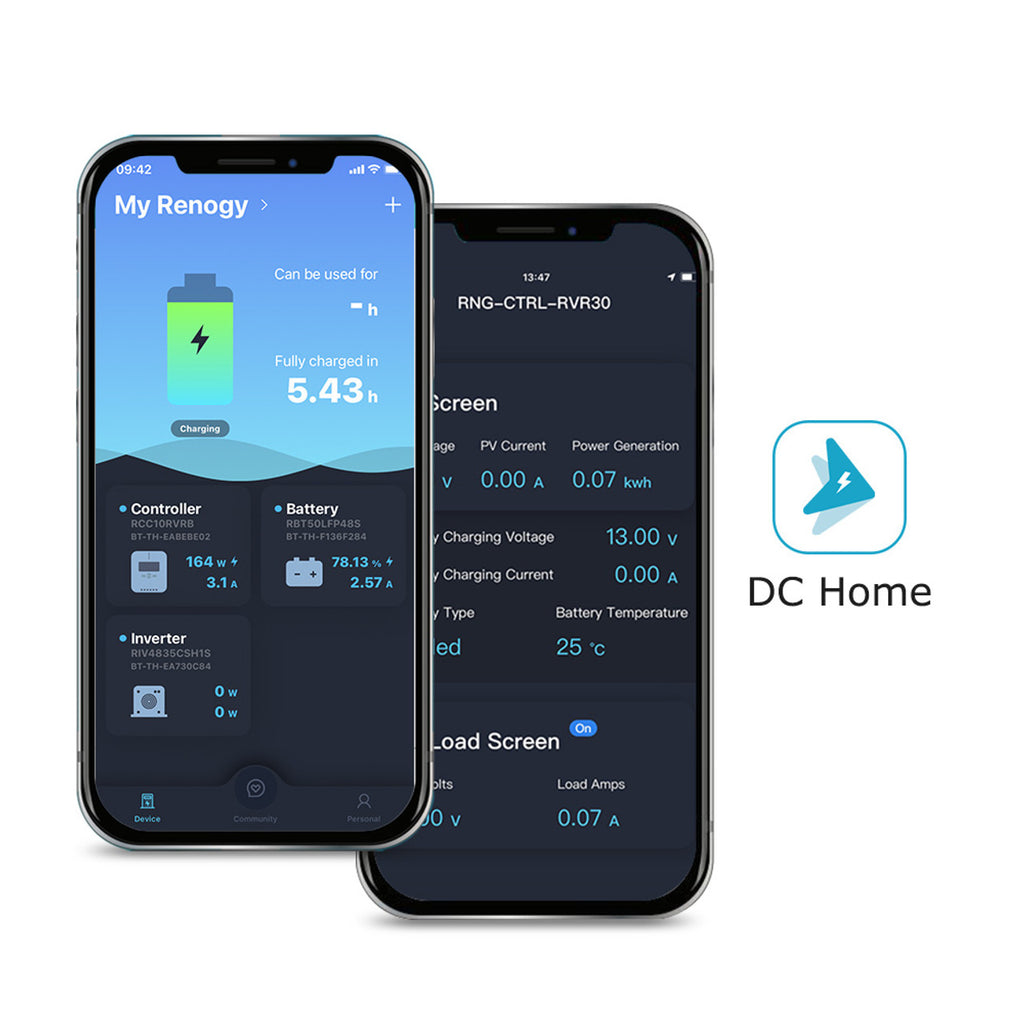

•    Connect to the smartphone App and Renogy DC Home to keep track of your system
•    Supports both RS485 and CAN communication protocol

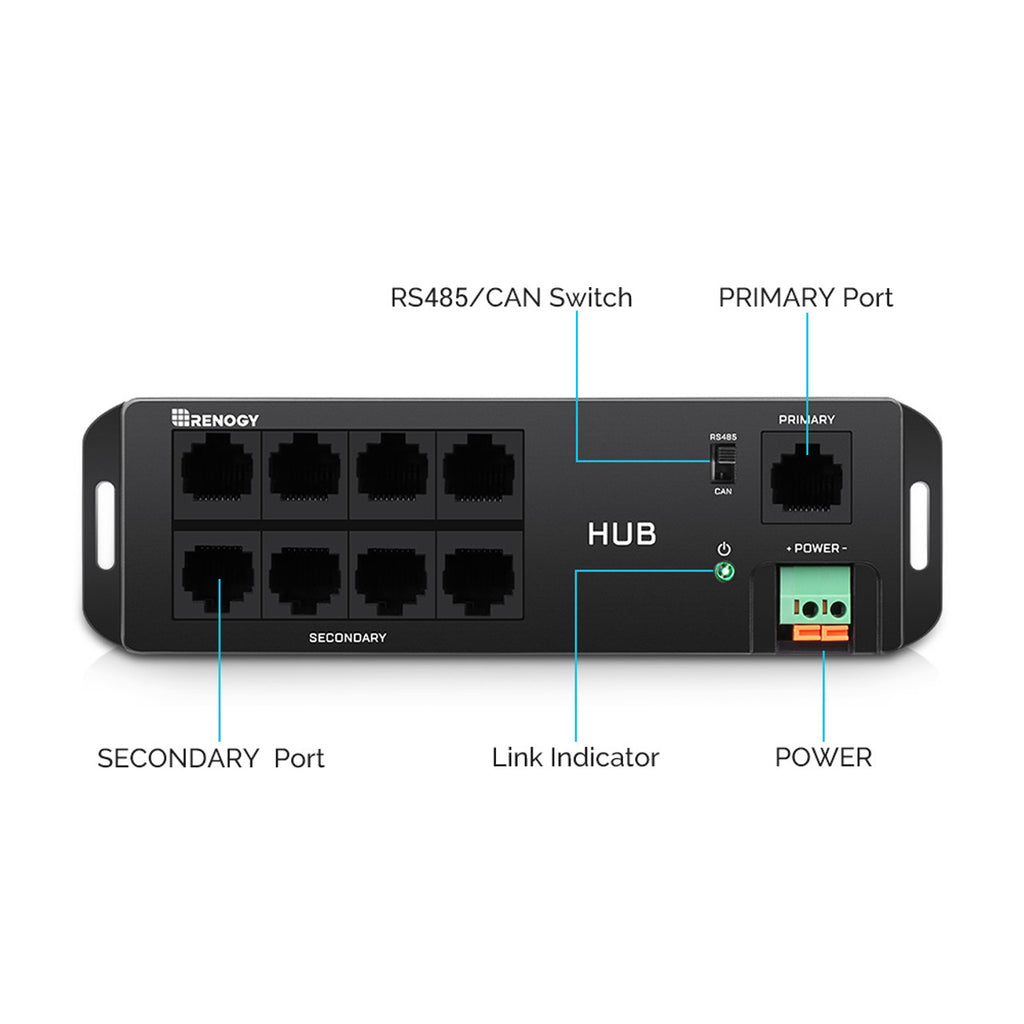

•    Green LED lights to indicate which communication is on

SPECIFICATIONS:

Input Voltage: 9V-60V

Port Type: RJ45

Standby Power Consumption: 0.324W

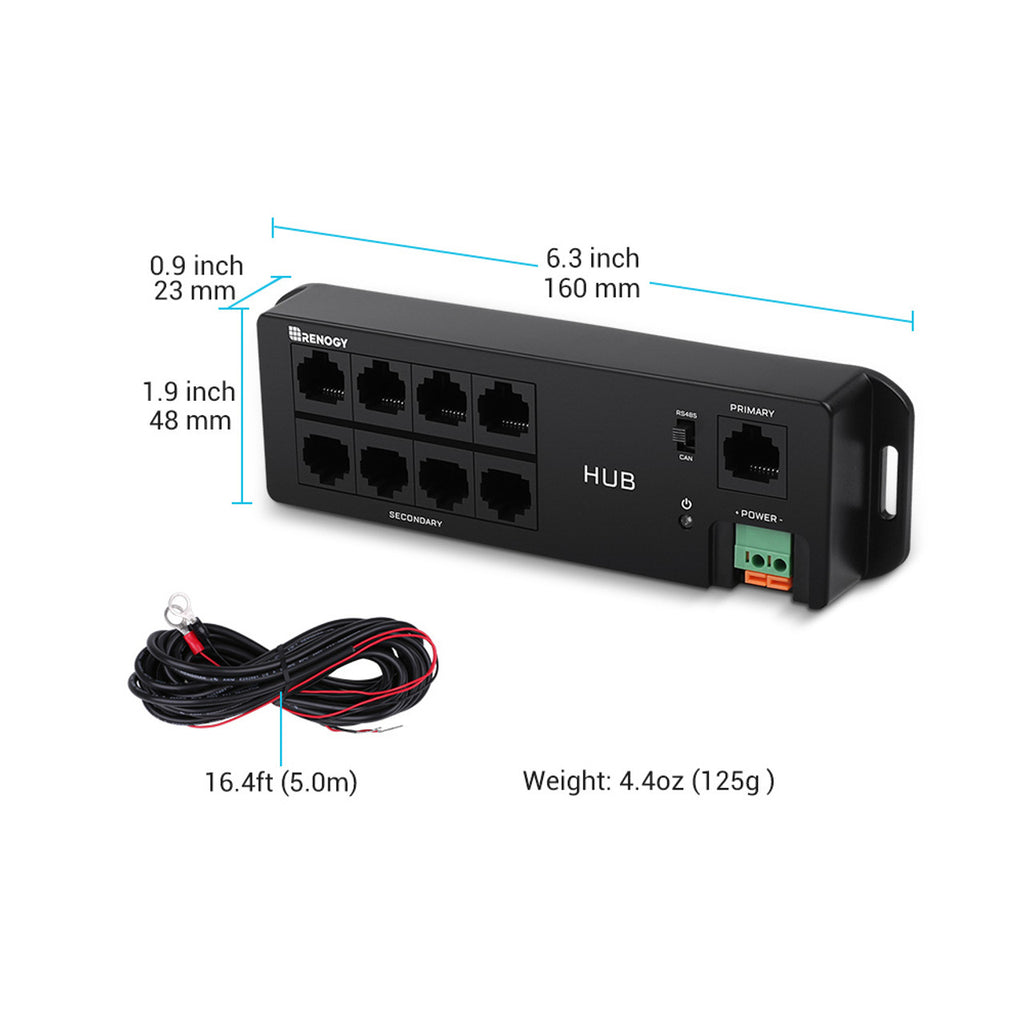

Cable Length: 5.00m (16.4ft)

Operating Power Consumption: <0.35W

Dimension: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm)

Communication Range: ≤82ft

Installation Dimension: 151.4 φ3.5mm (5.96 φ 0.14in)

Serial Baud Rate: RS485-9600 bps CAN-500 kbps

Operation Temperature: -20°C~85°C;(-4°F to 185°F)

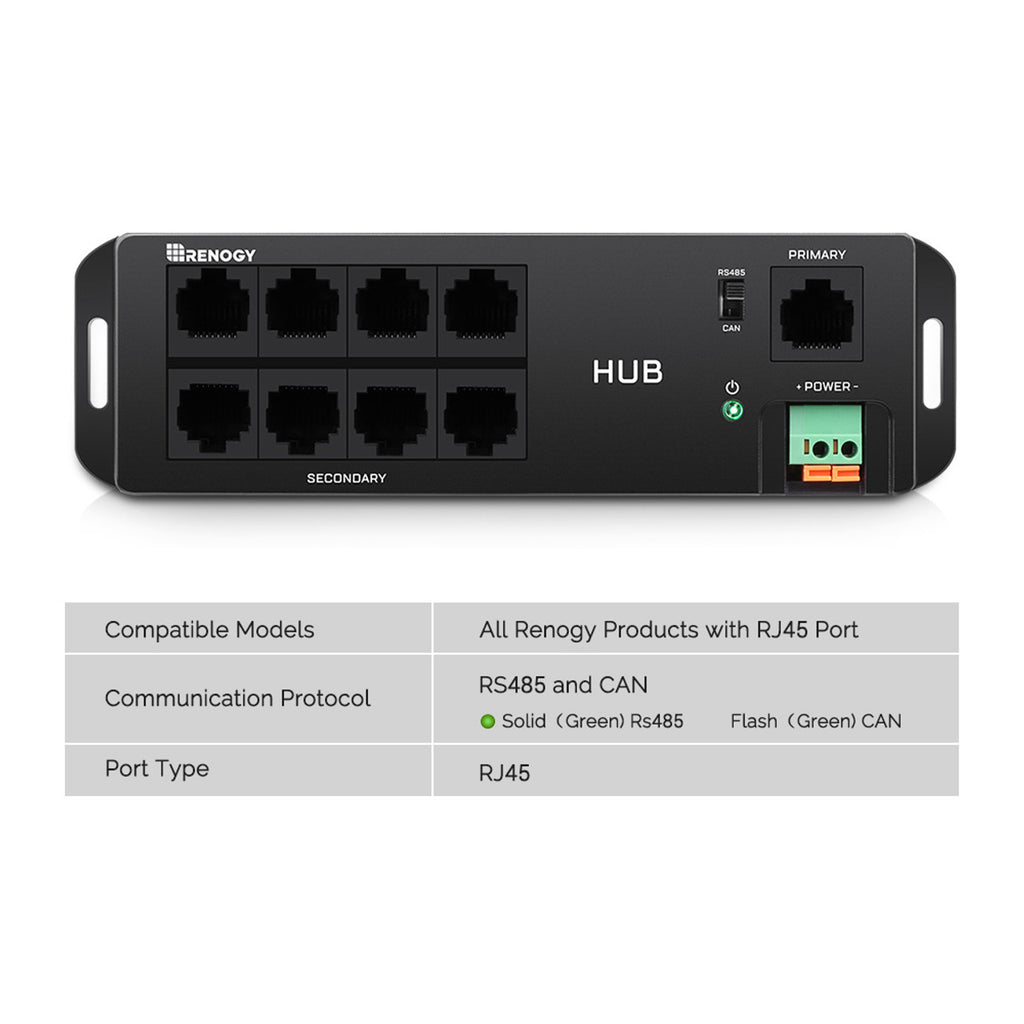

Communication Protocol: RS485 CAN

Weight: 125g (4.41oz)

Warranty Information: Accessories 1-year Material and Workmanship Warranty

WHAT’S IN THE BOX:

1 x Renogy Bluetooth Hub

1 x Power Cable
