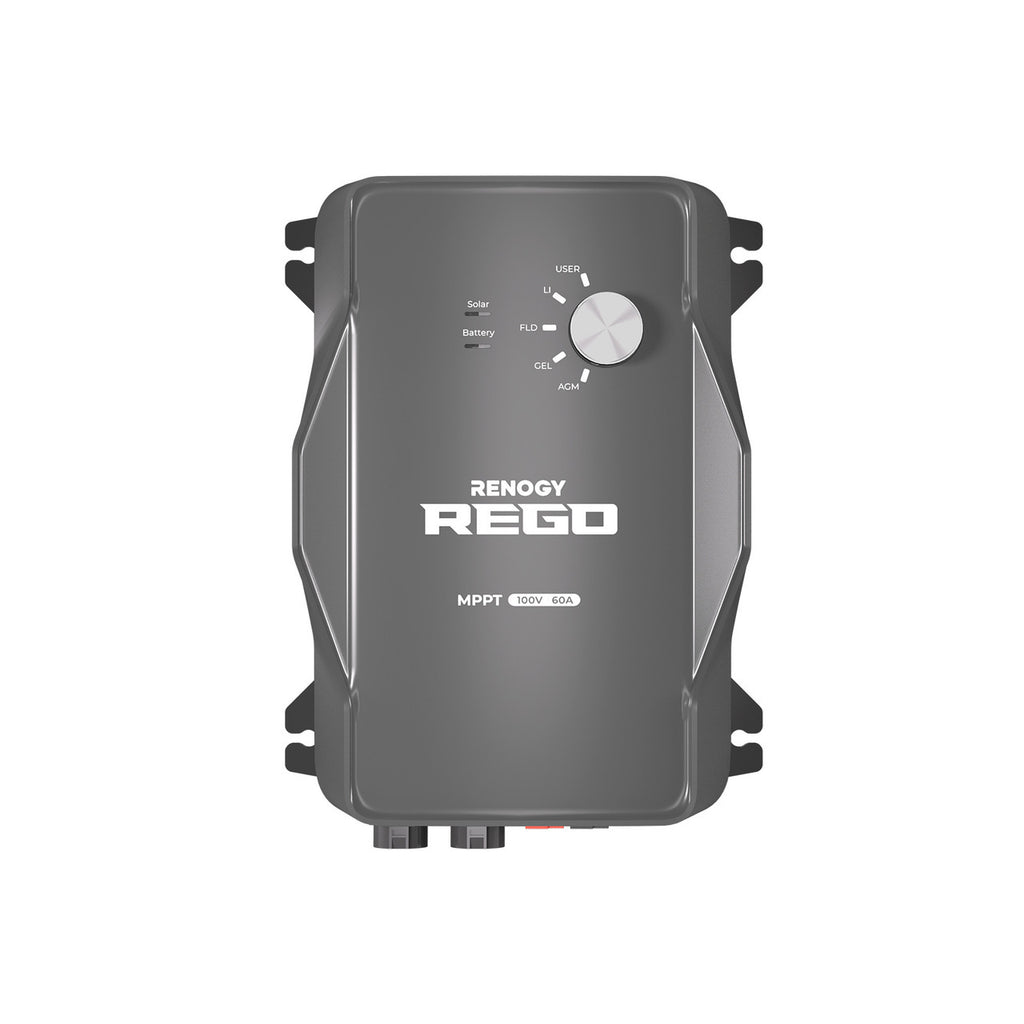

Renogy REGO 12V 60A MPPT Solar Charge Controller +5Ft Power Cable

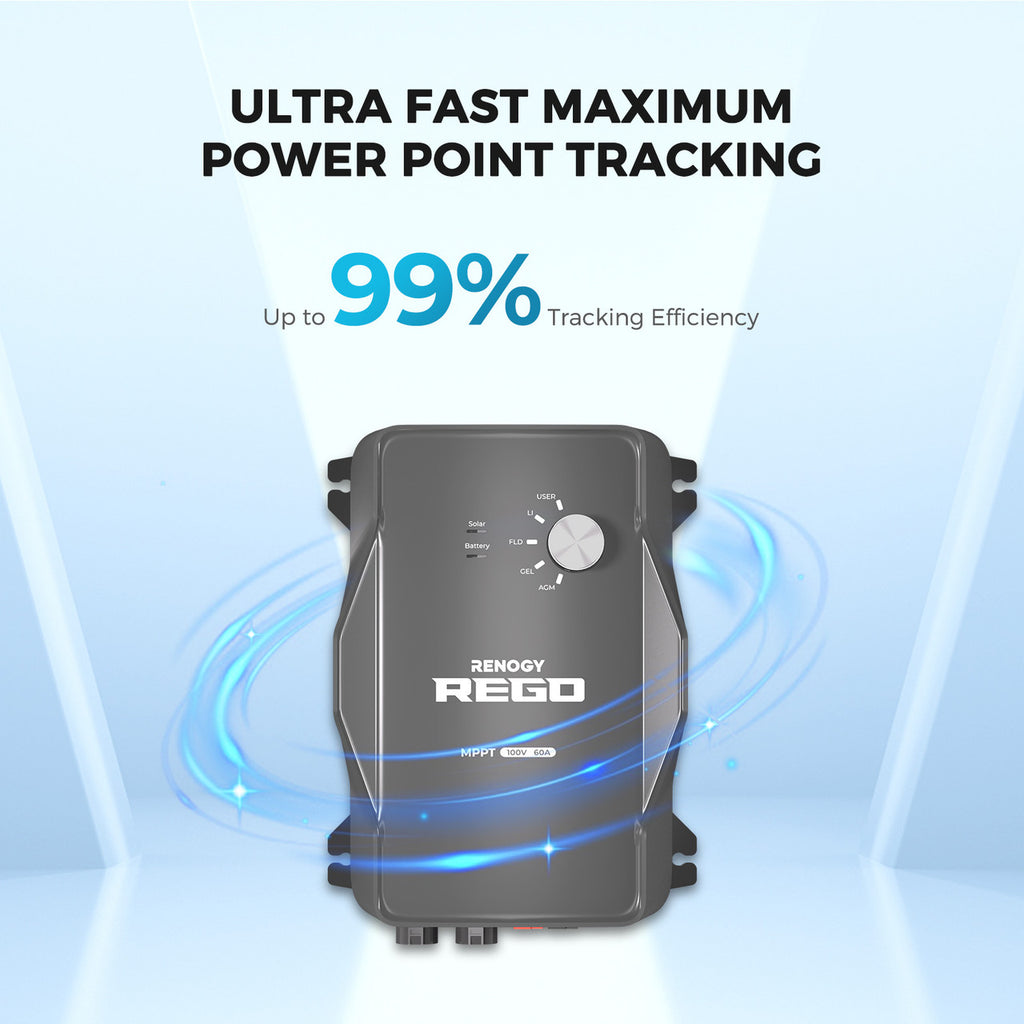

Renogy REGO 12V 60A is a reliable MPPT solar charge controller with simple installations and comprehensive protection tailor-made to secure your solar power system. Designed to work with Renogy ONE core for smart battery management via Renogy DC Home App, enjoy REGO's 99% tracking efficiency and 98% conversion efficiency for the ultimate off-grid lifestyle.

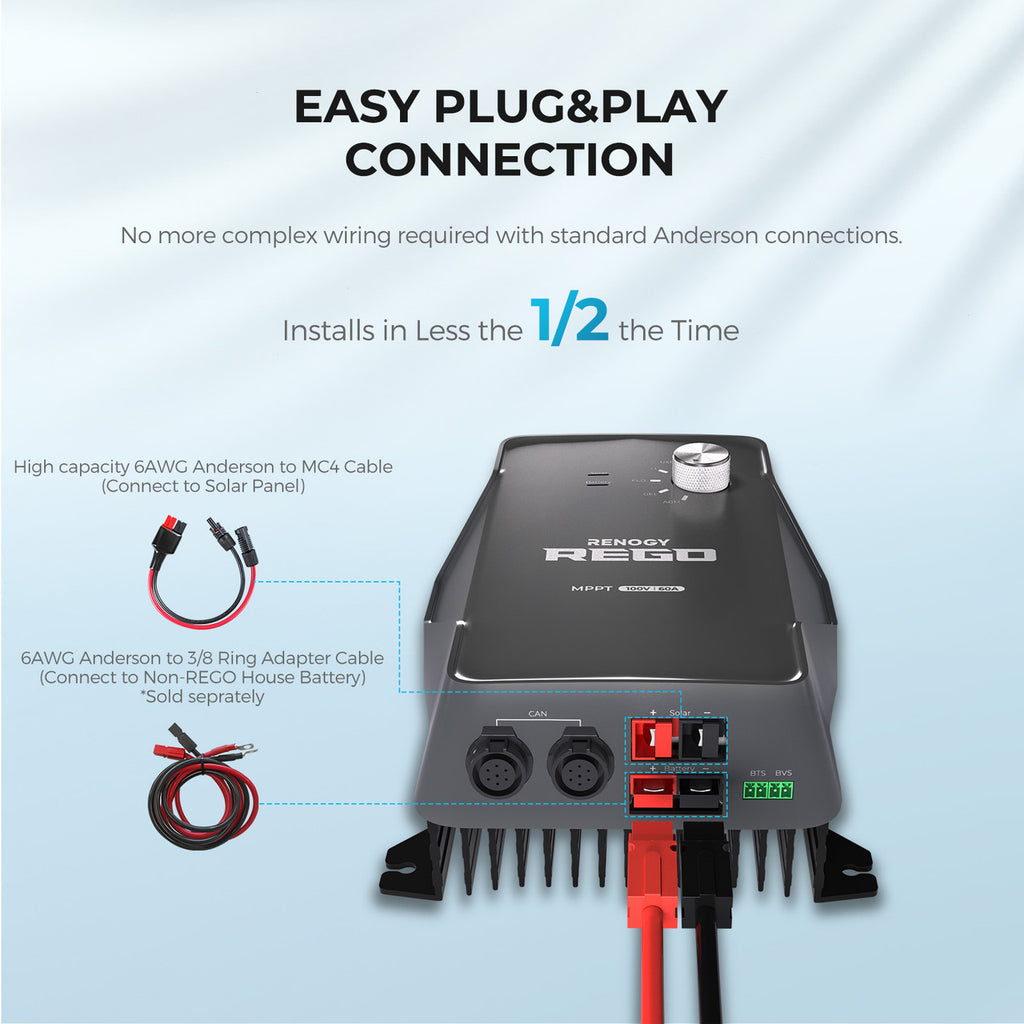

REGO 12V MPPT solar charge controller is compatible with a wide range of batteries including AGM, SLD, Flooded, Gel and Lithium. Using the versatile Anderson terminals with specially designed Anderson to MC4 adaptor cable, REGO MPPT solar charge controller is a simple plug and play module that establishes efficient rapid connection saving precious time on mundane installations.
Adapting the four-stage charging - Bulk, Boost, Float, EQU - to charge up the lead-acid batteries, REGO MPPT solar charge controller efficiently switches to 2-stage charging for lithium-ion batteries. REGO charge controller's operating temperature range of -4 °F to 140 °F guarantees efficient power performance even in extreme weather conditions.

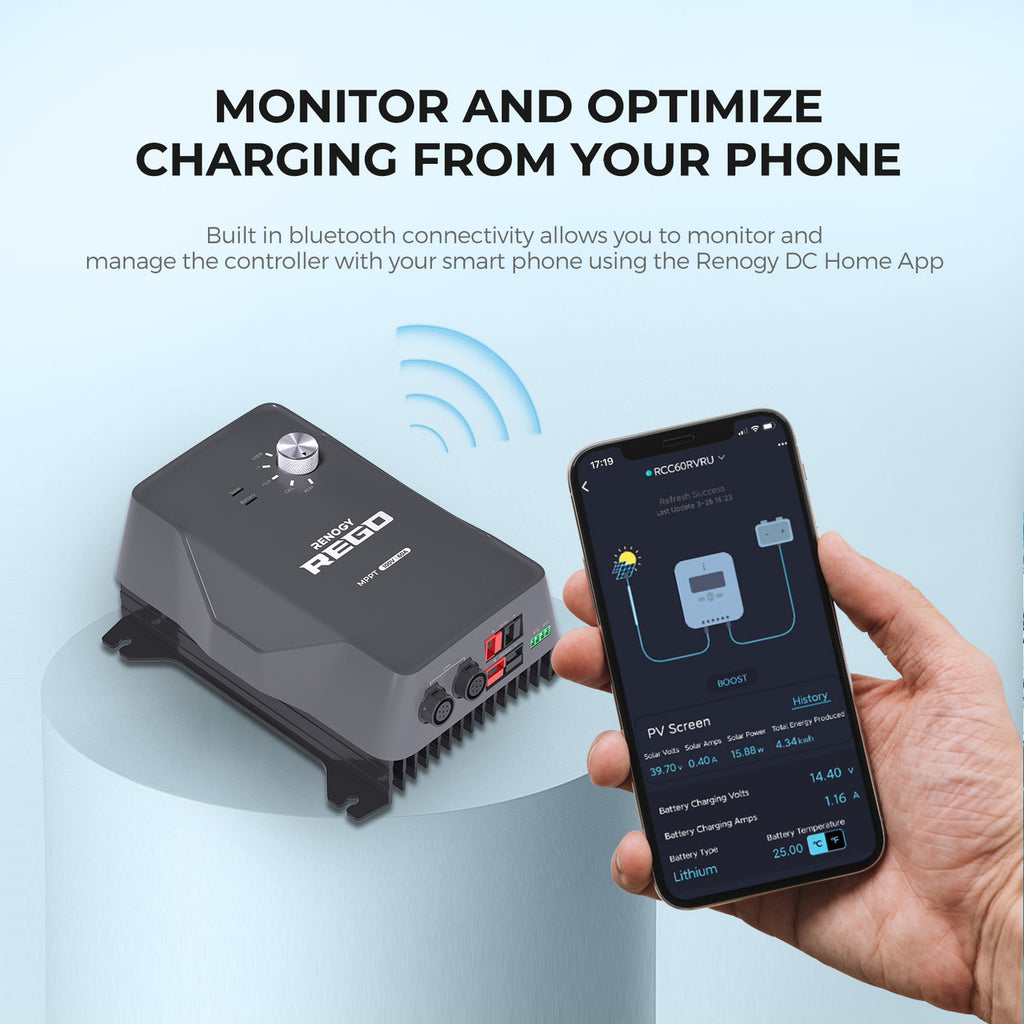

Hook up the charge controller to your smartphone with the Renogy DC Home App via Bluetooth and you stay in control of the controller with real-time monitoring. A fancy gadget, REGO boasts of advanced chassis design to effectively dissipate heat and maintain the device's temperature at optimal operating levels.
Specifications:
Nominal System Voltage: 12 V
Rated Charge Current: 60A
Max. PV Input Power: 800W
MPPT Voltage Range: 15 - 100 VDC /12V
Solar Input Voltage Range (VOC): 100 V
Max Input Current (short-circuit, Isc): 50A
Power Limiting Protection: Up to 800W/12V
Battery Operating Range: 10 -16V
Power Consumption: ≤0.5 W
Ground Type: Common Negative Lug

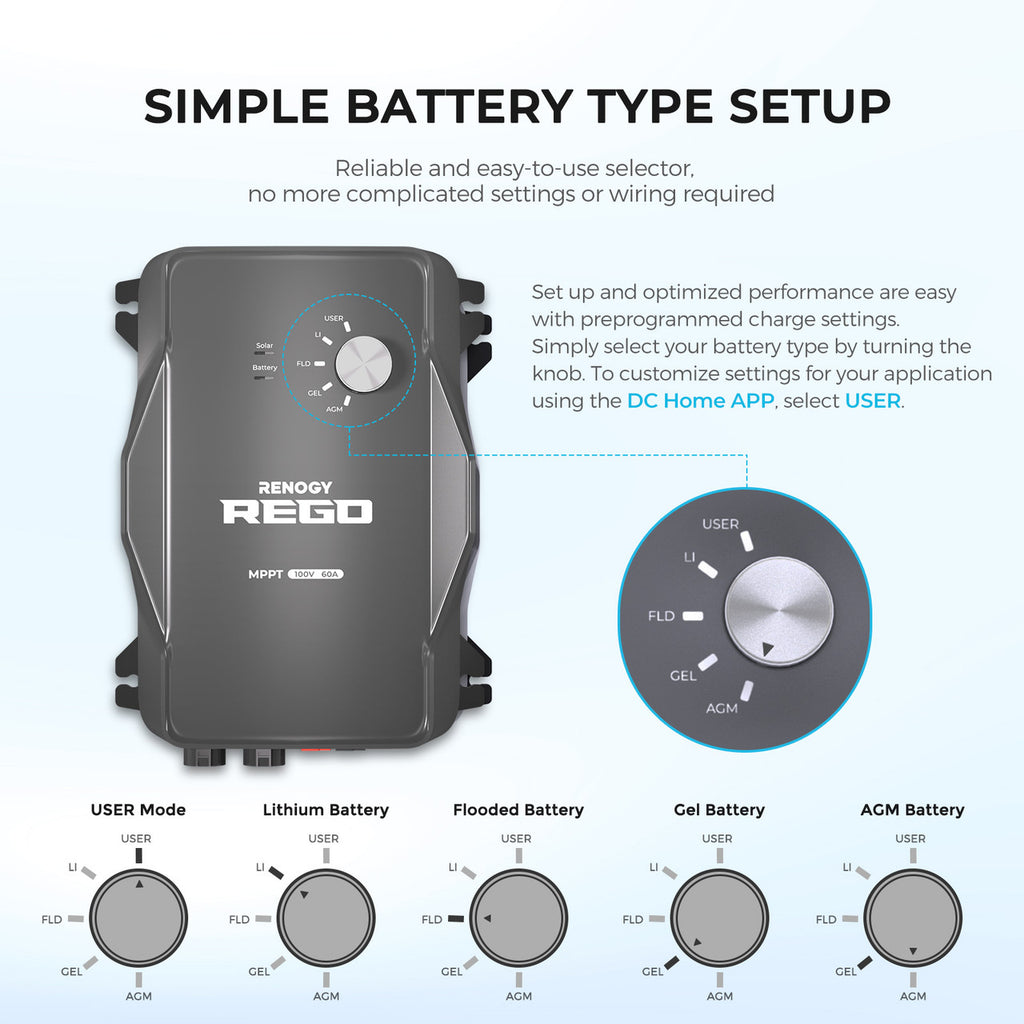

Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*

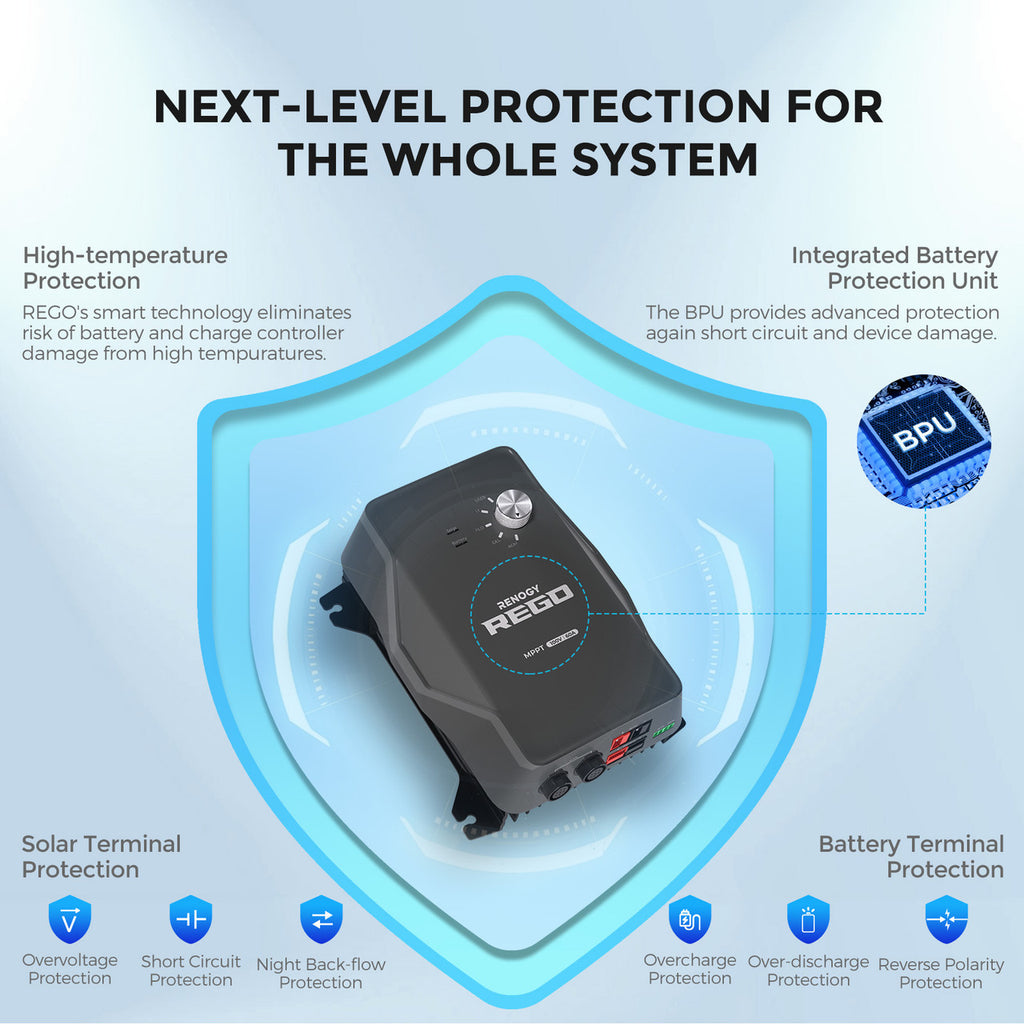

Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection
Operating Temperature Range: -20 ℃ - 60℃
Storage Temperature Range: -25 ℃ - 65℃
Operating / Storage Humidity: 0%-90% RH
Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium)

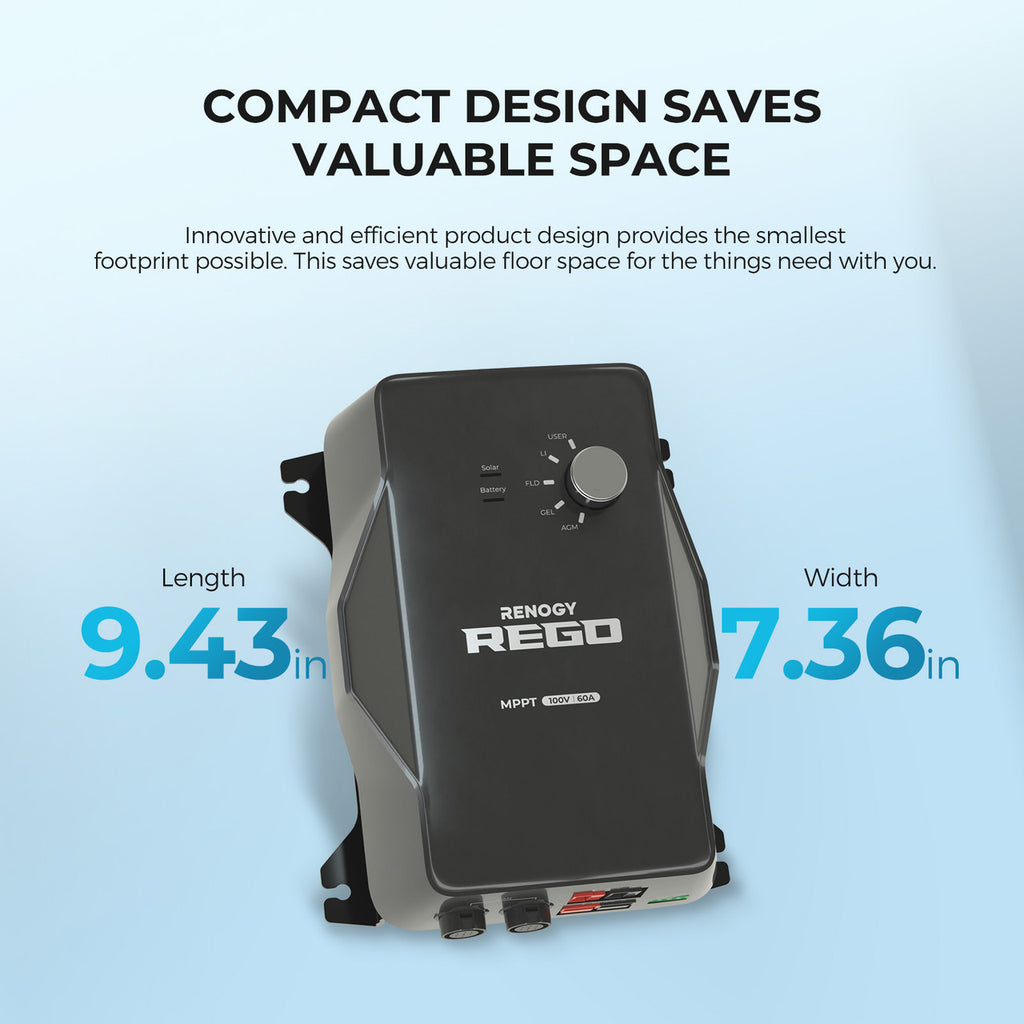

Dimensions: 9.43 x 7.36 x 4.28 in.
Weight: 5.07lbs
Terminals Size: Anderson PP75
Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal)
CE and RoHS compliant: YES
FCC Class B Part 15 Compliant: YES
Material and workmanship warranty: 5 Year

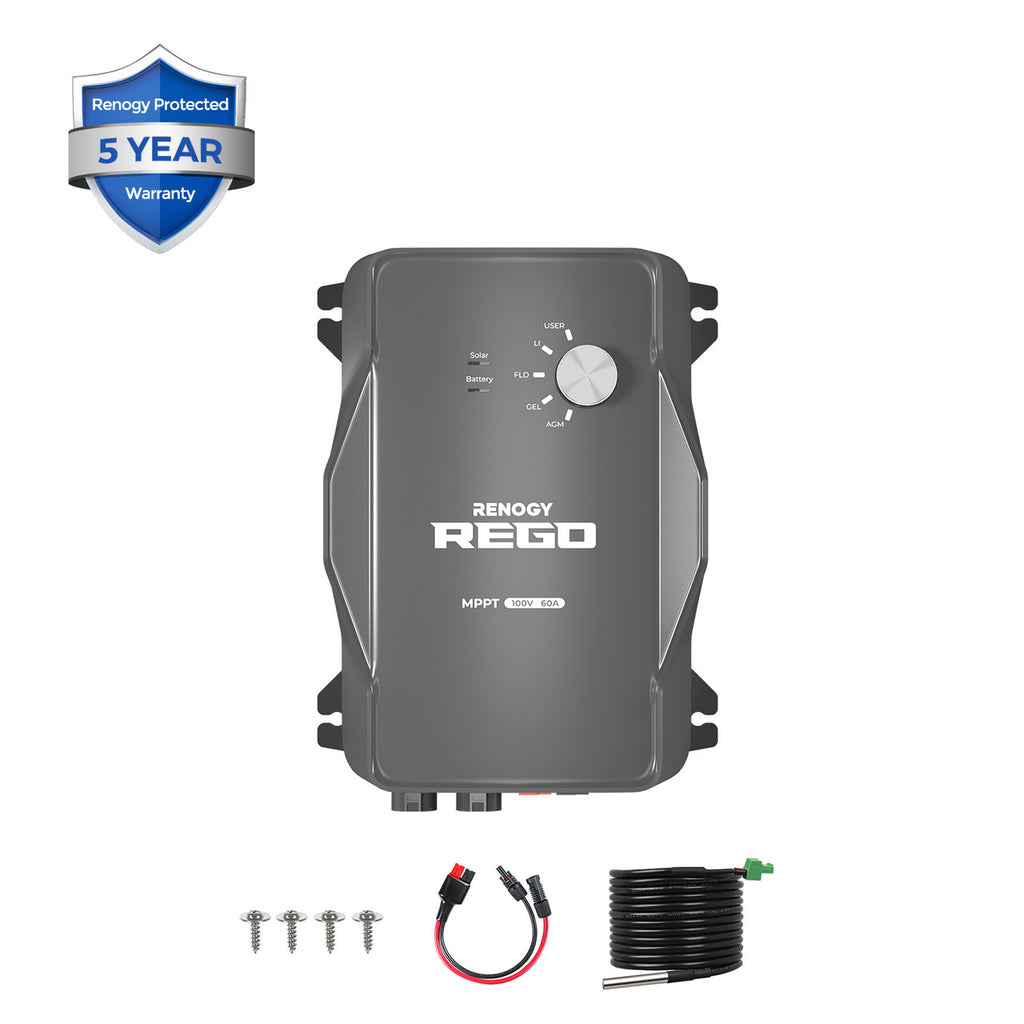

What's in the Box:
1 x REGO 12V 60A MPPT Solar Charge Controller
1 x Renogy Temperature Sensor
1 x Solar Adapter Cable
4 x Mounting Screws
1 x 5FT 6AWG Anderson Adapter Cable
1 x User Manual
