Renogy RKIT800DPM-RVR60 - 800W 12V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller
Take charge of your power needs with the Renogy RKIT800DPM-RVR60 800W Premium Solar Kit. This high-quality kit includes a powerful 800W 12V monocrystalline solar panel and a reliable Rover 60A charger controller to keep your energy flowing smoothly all day long. The kit includes solar panels, charge controllers, electrical wiring, and fuses and is perfect for off-grid and mobile applications.
An economical choice, this premium kit produces a daily average of 2.4kWh of electricity. The eight 100W solar panels are space-efficient and provide enough energy to operate large-sized loads such as televisions, washing machines, and electric stoves. Equipped with the Rover Li 60A MPPT charge controller, the kit supports expansion by adding more panels, like a 24V system expandable up to 1600W.
Easy Installation
The tools required to assemble a new system are included in this Renogy Solar Kit, including Z-brackets, required wires, and pre-drilled holes for quick and safe attachment on the panel's back frame.
Efficient Performance
The panel's bypass diode ensures optimal low-light performance, and the TPT back sheet efficiently removes extra heat so that output remains steady. The maximum efficiency of a module is 17.8%. This kit can be used with the Rover Li 60A MPPT charge controller to handle higher power requirements by adding more solar panels. For example, it supports expansion up to 800W for 12V systems and 1600W for 24V systems.
Full System Protection
With built-in protection, the Rover Li 60A MPPT Charge Controller safeguards your system from reverse polarity, overcharging, overload, short-circuiting, and reverse current.
Auto Detect and Powerful Compatibility
It detects DC system voltages of 12V, 24V, 36V, or 48V automatically. The LCD screen and several LED indicators show information on solar charging and battery operation, as well as fault codes and configurable parameters.
Quality

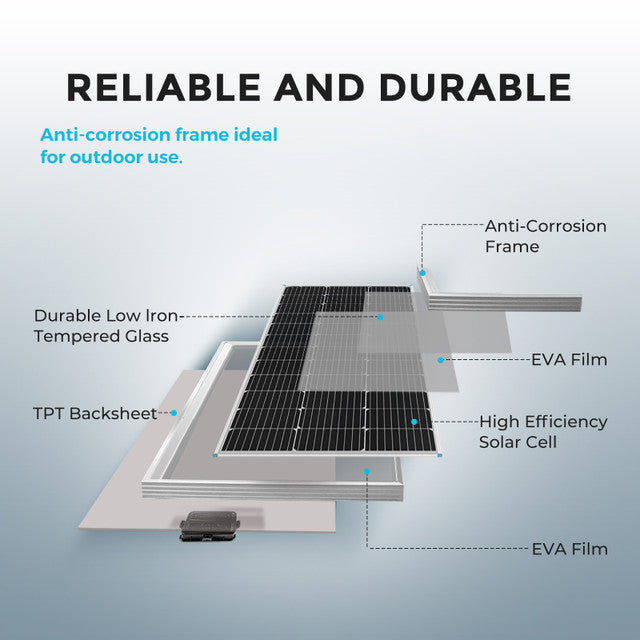

Cell performance is enhanced and a long service life is provided by the advanced encapsulation material with multi-layered sheet laminations that shields cells from physical damage or deformation.
Weatherproof
Low-pressure water jets and environmental particulates are both prevented by the IP65 Junction Box. When used outdoors for an extended period, these IP67 waterproof solar connectors guarantee that neither water nor dust will get inside the connector, effectively stopping water infiltration.
Build a reliable and environmentally friendly power supply with the Renogy RKIT600DPM-RVR60 600W 12V Monocrystalline Solar Premium Kit, perfect for a yard, barn, RV, boat, or camper!
Highlights:
• Efficient performance
• Full system protection
• Auto detect and powerful compatibility
• Solid quality
• Weatherproof
• Ready and easy installation
• Full kit including 100W solar panel, 60A MPPT solar charge controller, a pair of 8Ft tray cables, 2Ft 4AWG fuse cable, a pair of 20Ft 10AWG solar adaptor kit, 15A in-line fuse holder, 60A fuse set, Bluetooth module, solar Y branch connectors, and Mounting brackets
• Panels: 25-year power output warranty: 5-year 95% output warranty, 10-year 90% output warranty, 25-year 80% output warranty 10-year material and workmanship warranty; Accessories: 1-year material and workmanship warranty
SPECIFICATIONS:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs/6.4kg

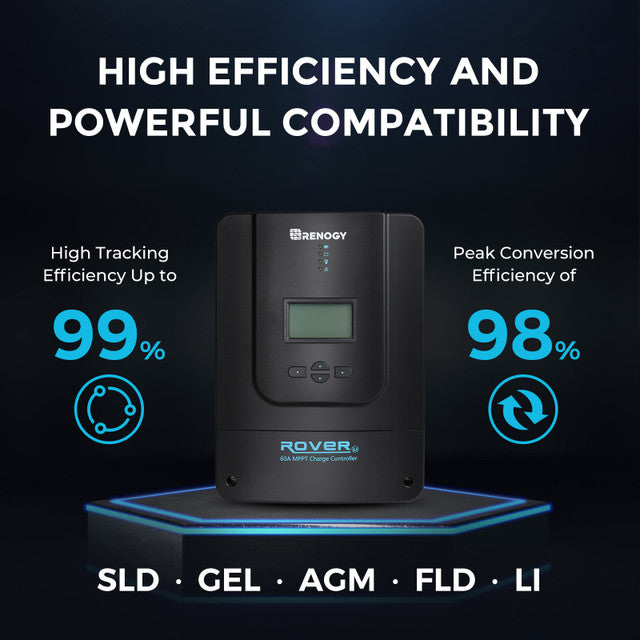

ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER
Rated Charge Current: 60A
Rated Load Current: 20A
Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Self-Consumption: 0.7W-1.2W
Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight: 7.9 lbs.
Enclosure: IP32
Terminals: 25mm2 4AWG

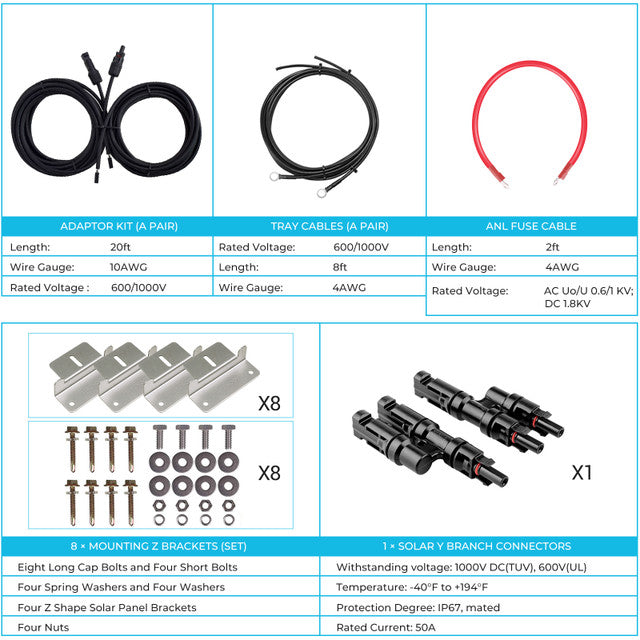

RENOGY 8FT 4AWG TRAY CABLES (A PAIR)
Length: 8ft
AWG: 4
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 2FT 4AWG ANL FUSE CABLE
Length: 2ft
AWG: 4
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature: -40°F to +194°F
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 15A IN-LINE FUSE HOLDER W/FUSE
Rated Current: 15A
Rated Voltage: 1000 V DC
Contact Material: Copper, Silver Plated
Replaceable Fuse: Cylindrical PV Fuse (10 x 38mm)
ANL 60A FUSE SET
Current Rating: 60A
Voltage Rating: 72V
Interrupt Capacity: 360A (48V)

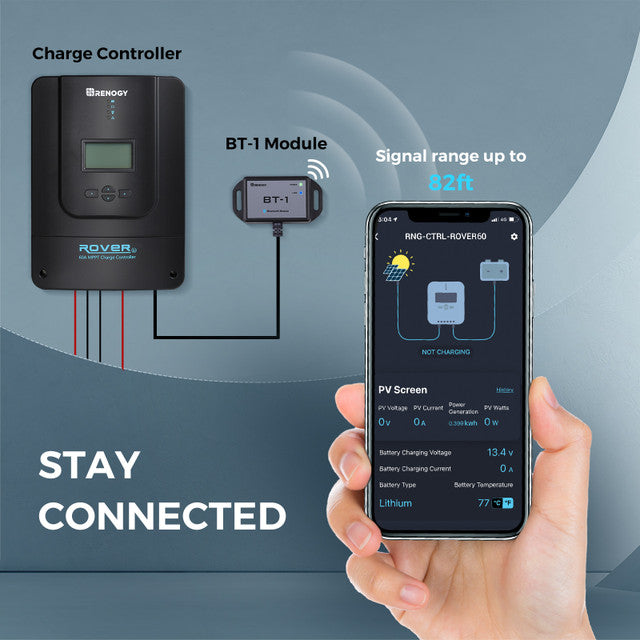

BT-1 BLUETOOTH MODULE
Input Voltage: 5V
Communication Range: ≤82ft
Compatible Models: All Renogy Controllers with RJ12 port
Operation Temperature: -20°C~85°C (-4°F to 185°F)
RENOGY SOLAR SOLAR Y BRANCH CONNECTORS MMF+FFM PAIR
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Protection Class: Class II
Protection Degree: IP67, mated
Insulation Material: PC/PA
Temperature Range: -40°F to 194°F
MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
WARRANTY
Panels: 25-year power output warranty: 5-year 95% output warranty, 10-year 90% output warranty, 25-year 80% output warranty 10-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty

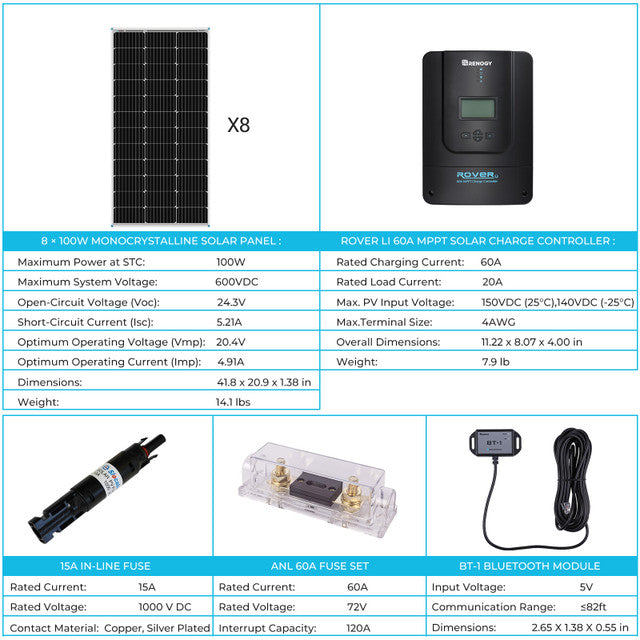

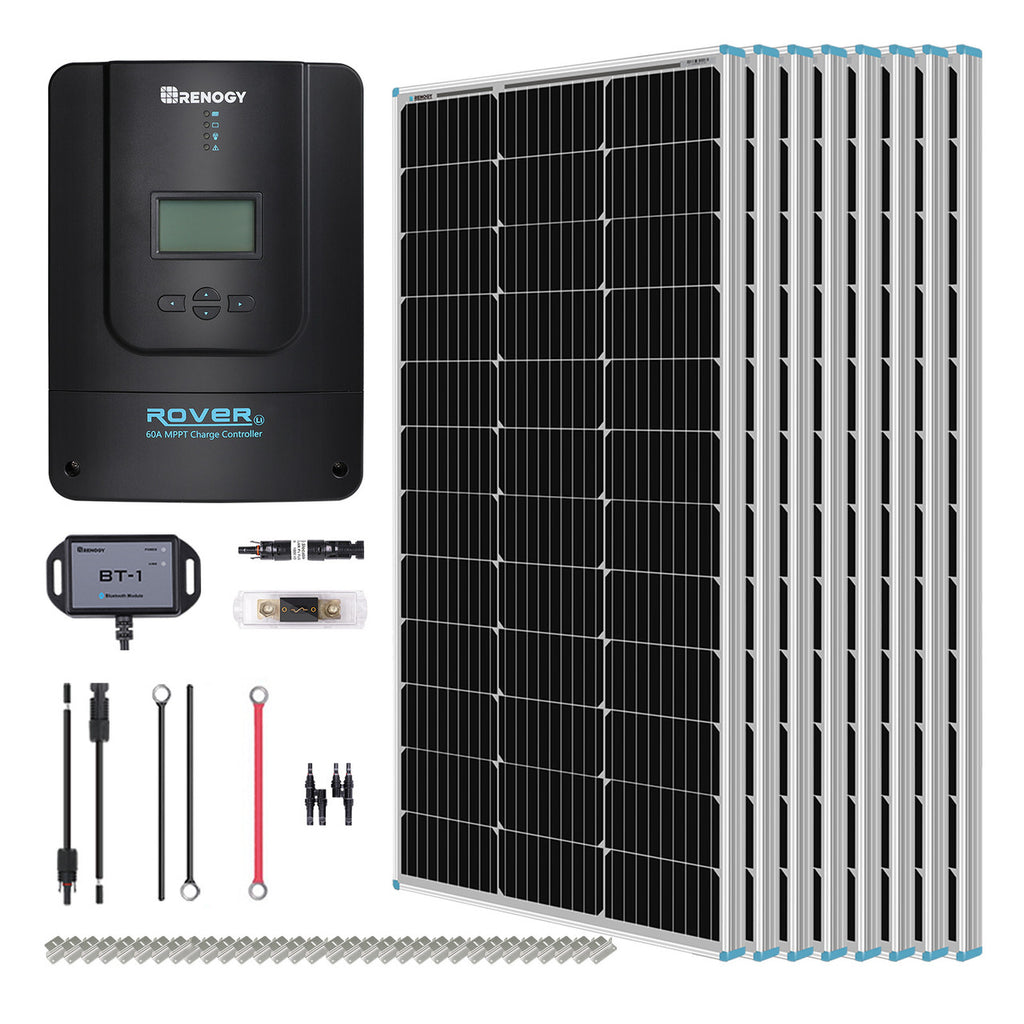

WHAT’S IN THE BOX:
8 x 100W Mono Solar Panel
1 x Rover Li 60A MPPT Charge Controller
1 x 20ft 10AWG AK
1 x 2ft 4AWG Fuse Cable
1 x 8ft 4AWG Tray Cable
8 x Mounting z Brackets (Set)
1 x 15A In-line Fuse and 60A ANL Fuse
1 x Renogy Solar Y Branch Connectors MMF+FFM Pair
1 x BT-1 Bluetooth Module
