Renogy RNG-CNCT-MC4BC - RENOGY MC4 Y Branch Connectors Solar Connectors Extra Long Cable MFFFF + FMMMM Pair

Roll over image to zoom in Click on image to zoom

Free Shipping. Ships in 1-3 Days

This item qualifies for 2% Cashback

Renogy RNG-CNCT-MC4BC - RENOGY MC4 Y Branch Connectors Solar Connectors Extra Long Cable MFFFF + FMMMM Pair

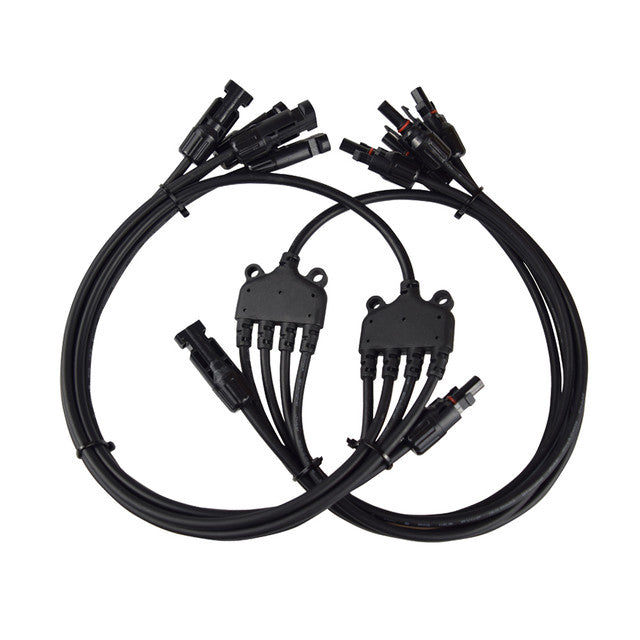

Make wiring parallel solar panels a breeze with these extended 4 to 1 Solar Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.

Highlights:
• Hard plastic
• Quick and simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Includes one male to four female and one female to four male

SPECIFICATIONS:

Withstanding voltage: 1000V DC(TUV), 600V(UL)

Test Voltage: 6500V (50HZ, 5Min)

Wiring Size: Main: 10AWG; Branch: 12AWG

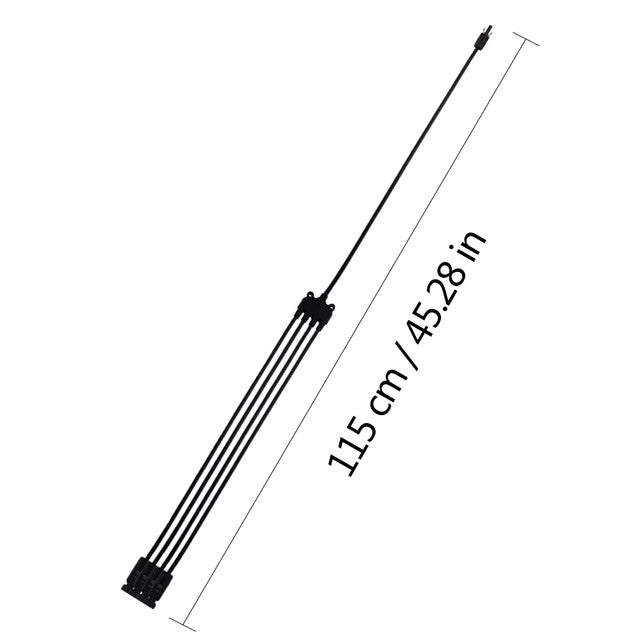

Length: Overall: 3.5ft; Branch: 1.5ft

Protection Degree: IP67

Rated Current: 30A

Insulation Material: PC/PA

Contact Material: Copper, silver plated

Temperature: -40°F to +194°F

Accessories: 1-Year material warranty

WHAT’S IN THE BOX:

1 x 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Product FAQs

Name: Renogy RNG-CNCT-MC4BC - RENOGY MC4 Y Branch Connectors Solar Connectors Extra Long Cable MFFFF + FMMMM Pair
Brand: Renogy
SKU: RNG-CNCT-MC4BC-G1-US
Price: 24.99 USD
Availability: InStock

What is the maximum voltage these Renogy MC4 Y Branch Connectors can withstand?

These connectors can withstand up to 1000V DC (TUV) and 600V (UL).

What are the wiring sizes for the main and branch connections?

The main wiring size is 10AWG, and the branch wiring size is 12AWG.

What is the protection degree of the Renogy RNG-CNCT-MC4BC connectors?

The protection degree is IP67.

What materials are used for the insulation and contacts?

The insulation material is PC/PA, and the contact material is copper with silver plating.

What is the temperature range for these connectors?

The connectors are rated for a temperature range of -40°F to +194°F.
