Renogy RNG-CTRL-ADV30-LI - Renogy Adventurer-Li 30A Negative-Ground PWM Flush Mount Charge Controller w/LCD Display - Compatible wit
Renogy RNG-CTRL-ADV30-LI - Renogy Adventurer-Li 30A Negative-Ground PWM Flush Mount Charge Controller with LCD Display is the perfect solution for keeping your solar panel system running efficiently and effectively.
Embedded with two great features, the first one is lithium battery charging capability. The Adventurer-Li can charge the majority of lithium batteries available on the market thanks to its customizable lithium charging voltage. The second feature includes the RS232 port that is used to communicate with the new Renogy BT-1 Bluetooth module, where the Bluetooth module will be used to pair the Adventurer-Li with the upcoming Renogy APP.

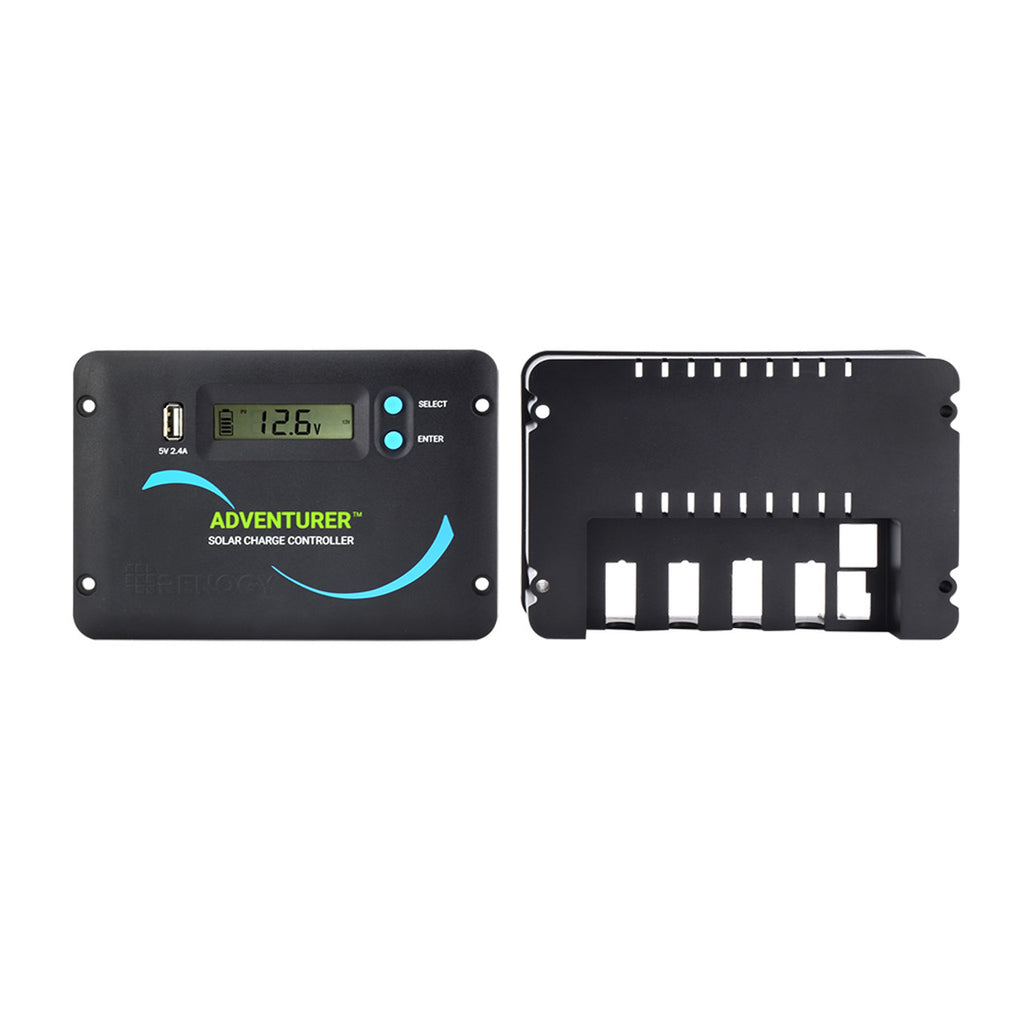

The Renogy Adventurer-Li is a 30A PWM solar power charge controller designed for use with 12V or 24V photovoltaic systems. It comes with a Surface Mount Attachment for easy installation on RV or camper walls. This sophisticated negative-ground controller regulates the amount of charge going from the solar panels to the battery bank, extending battery life through highly efficient PWM charging. The controller features an LCD panel displaying operational data and allows for complete control over parameter settings. Additionally, it is equipped with an extensive self-diagnostic system and electrical protective features to guard against installation errors or system faults.
Choose the Renogy RNG-CTRL-ADV30-LI, a reliable and efficient choice for your solar power needs!
Highlights:
• Unique USB port on the front display

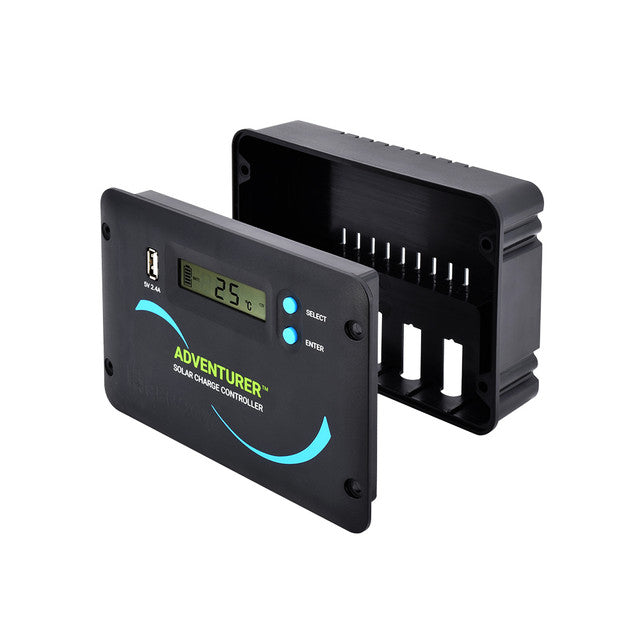

• The only Renogy controller with flush mount capabilities

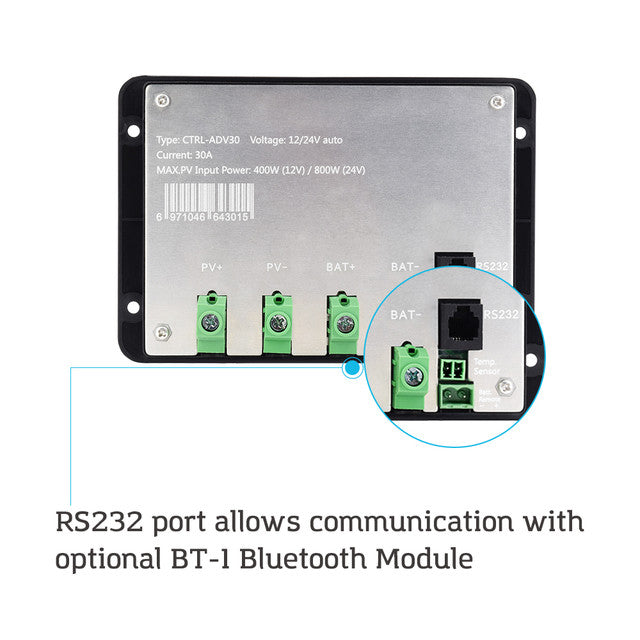

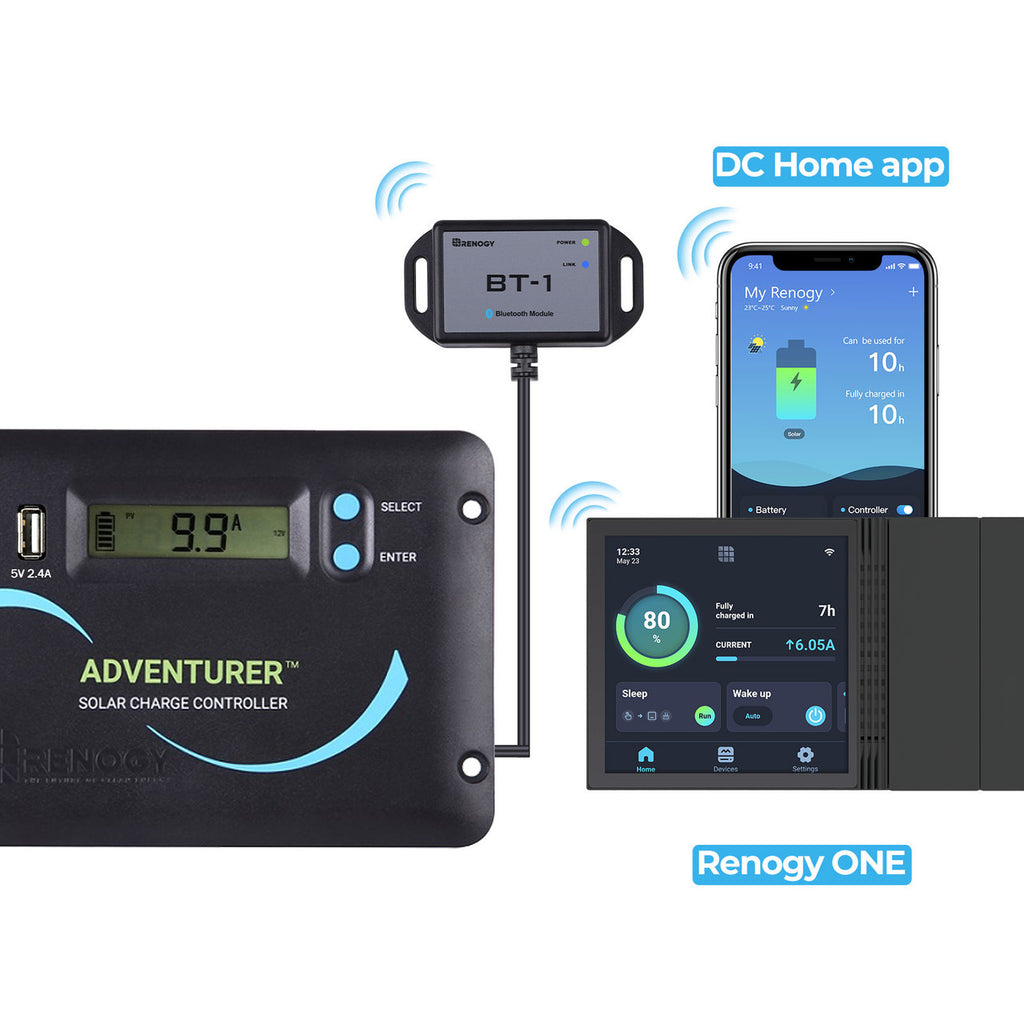

• The RS232 port can work with the BT-1 Bluetooth module to deliver real-time energy data across the DC Home smartphone and Renogy ONE M1
• Negative-ground controller
• Protection against overcharging, overload, short-circuit, and reverse polarity
• 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging
• 12V and 24v compatibility

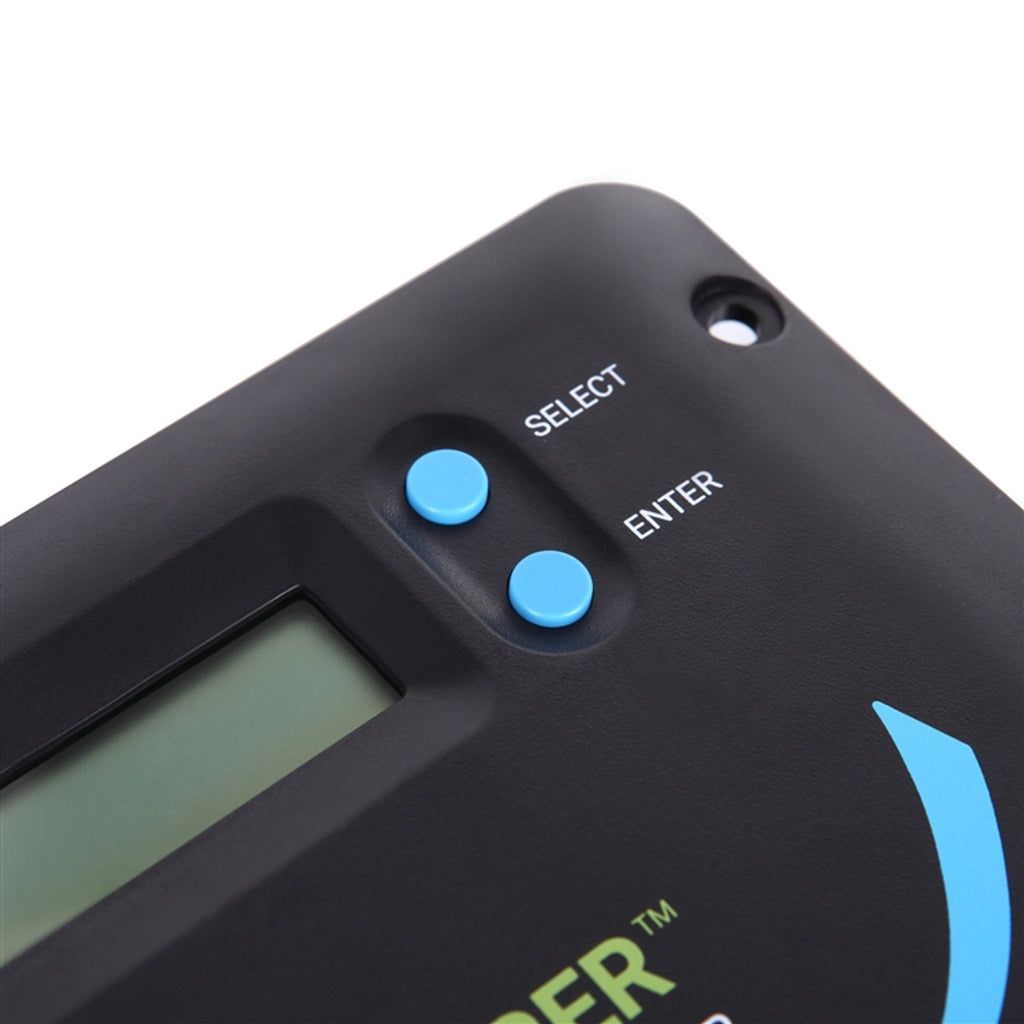

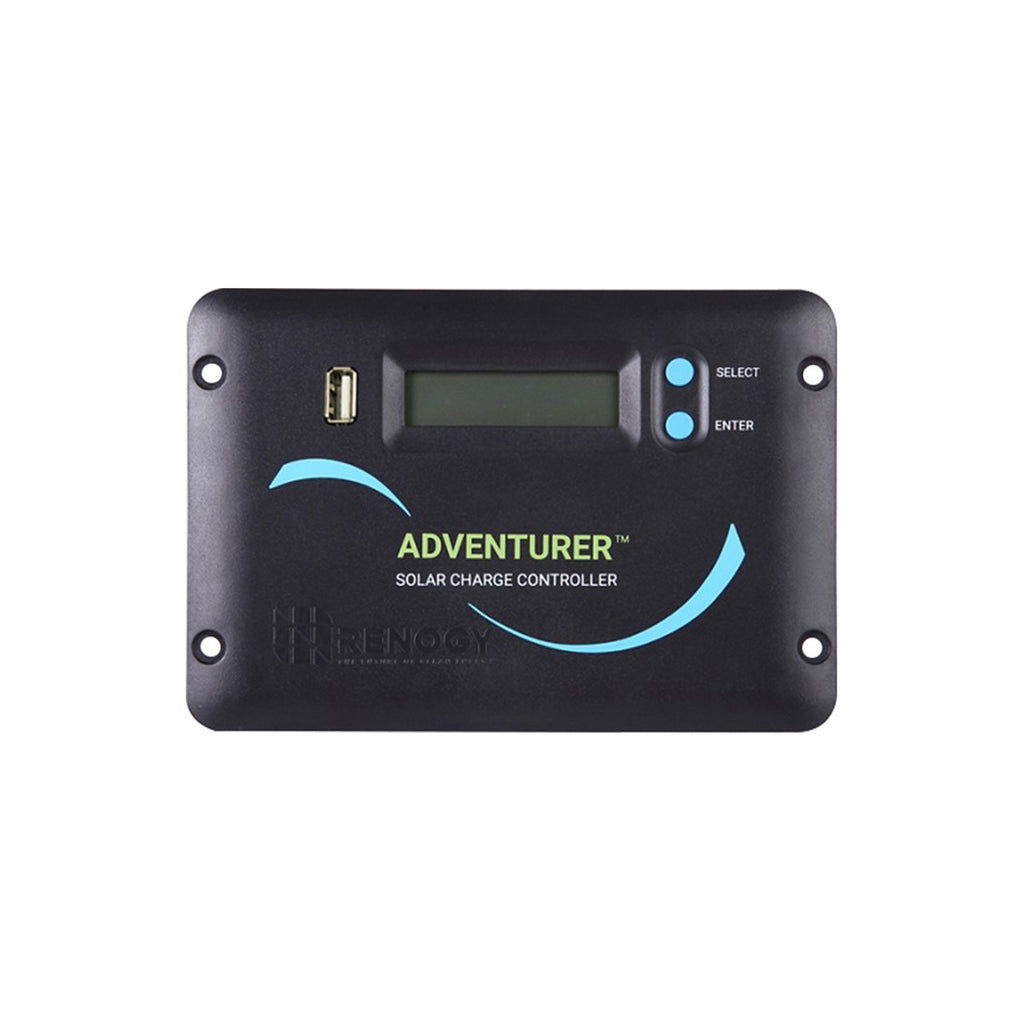

• LCD screen for displaying operating information and data
• Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity
• Compatible with Sealed, Gel, Flooded, and Lithium batteries
SPECIFICATIONS:
Nominal Voltage: 12 VDC/ 24 VDC
USB Output: 5V, 2.4A Max
Rated Charge Current: 30A
Max. PV Input Voltage: 50 VDC
Equalization Voltage: Sealed: 14.6 V; Gel: None; Flooded: 14.8 V
Boost Voltage: Sealed: 14.4 V; Gel: 14.2 V; Flooded: 14.6 V; Lithium: 14.2 V
Float Voltage: 13.8 V
Max. PV Input Power: 12V(400W) / 24V(800W)
Self-consumption: ≤13mA
Temperature Compensation Coefficient: -3mV/°C/2V
Operating Temperature: -13°F to 131°F
Storage Temperature: -31°F to 176°F
Enclosure: IP20
Dimensions: 6.56 x 4.50 x 1.90 inches

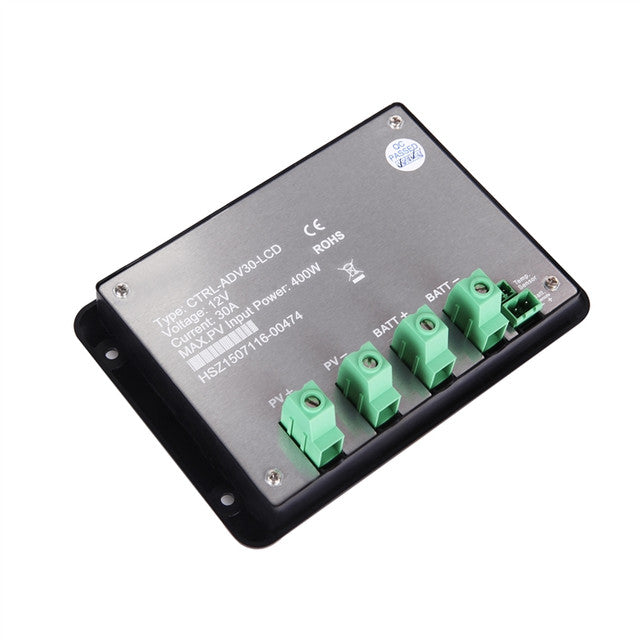

Terminals: Up to 8 AWG
Weight: 0.6 lbs
Certification: CE
Compatible Bluetooth: Renogy BT-1 Bluetooth module
Accessories: 2-Year material warranty
Charge Controllers: Adventurer
WHAT’S IN THE BOX:
1 x Renogy Adventurer Li 30A PWM Charge Controller
1 x Renogy Adventurer Box
