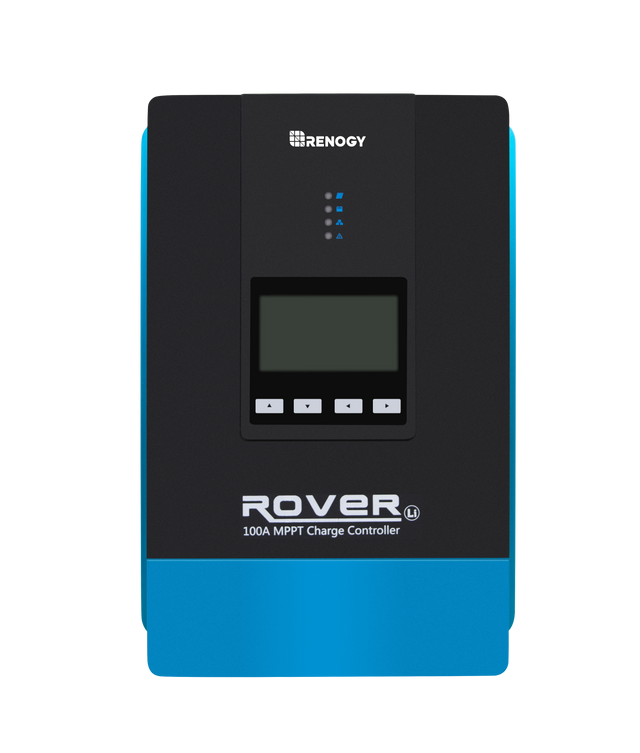

Renogy RNG-CTRL-RVR100 - Rover Li 100 Amp MPPT Solar Charge Controller Regulator Compatible with Lithium, Sealed, Gel, and Flooded B
An ultimate power player for all your solar system needs, the Renogy RNG-CTRL-RVR100 - Rover Li 100 Amp MPPT Solar Charge Controller Regulator is a vigilant gatekeeper, regulating energy flow between solar panels and batteries.
This device is not only compatible with a variety of battery types, including lithium, sealed, gel, and flooded, but also utilizes Maximum Power Point Tracking (MPPT) technology to ensure maximum efficiency and performance. With a hefty 100-amp capacity, it can support up to 1300 watts on 12 volts, 2600 watts on 24 volts, 3900 watts on 36V, and 5200 watts on 48V. Its rated peak conversion efficiency is 98% and its rated tracking efficiency is 99%.

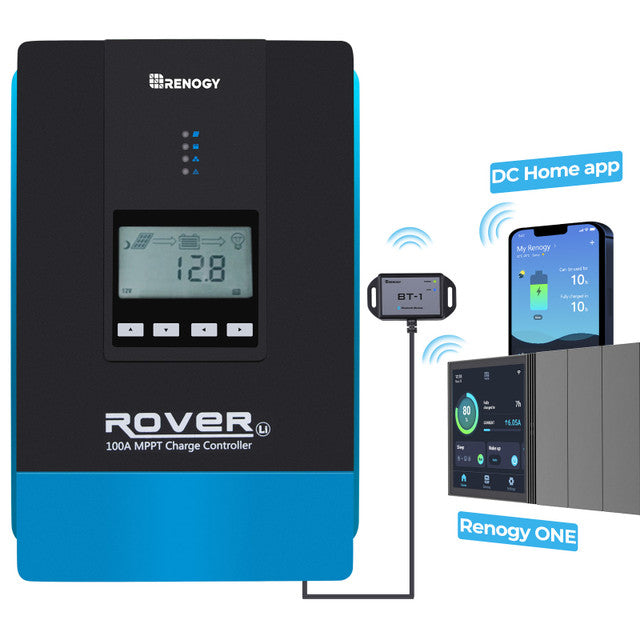

A special feature exclusive to this Rover allows users to connect two 100A Rover controllers in parallel for 200 amps for even more power! In addition to simply self-diagnosing in the event of an issue, this smart charge controller can be remotely operated via the DC Home app using the Renogy BT-1 Bluetooth Module. Consumers can conveniently monitor and control their solar system directly from their phones through Bluetooth pairing the Rover with the new BT-1 and the DC Home app.
The Renogy RNG-CTRL-RVR100 - Rover Li 100 Amp MPPT Solar Charge Controller Regulator can handle even the most demanding energy requirements, making it the perfect choice for off-grid living, RVs, boats, and more!
Highlights:
• Automatically detects 12V, 24V, 36V and 48V DC system voltages (for non-lithium batteries)
• Compatible with AGM, Sealed, Gel, Flooded, and Lithium batteries
• MPPT technology
• High tracking efficiency up to 99%
• Peak conversion efficiency of 98%
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

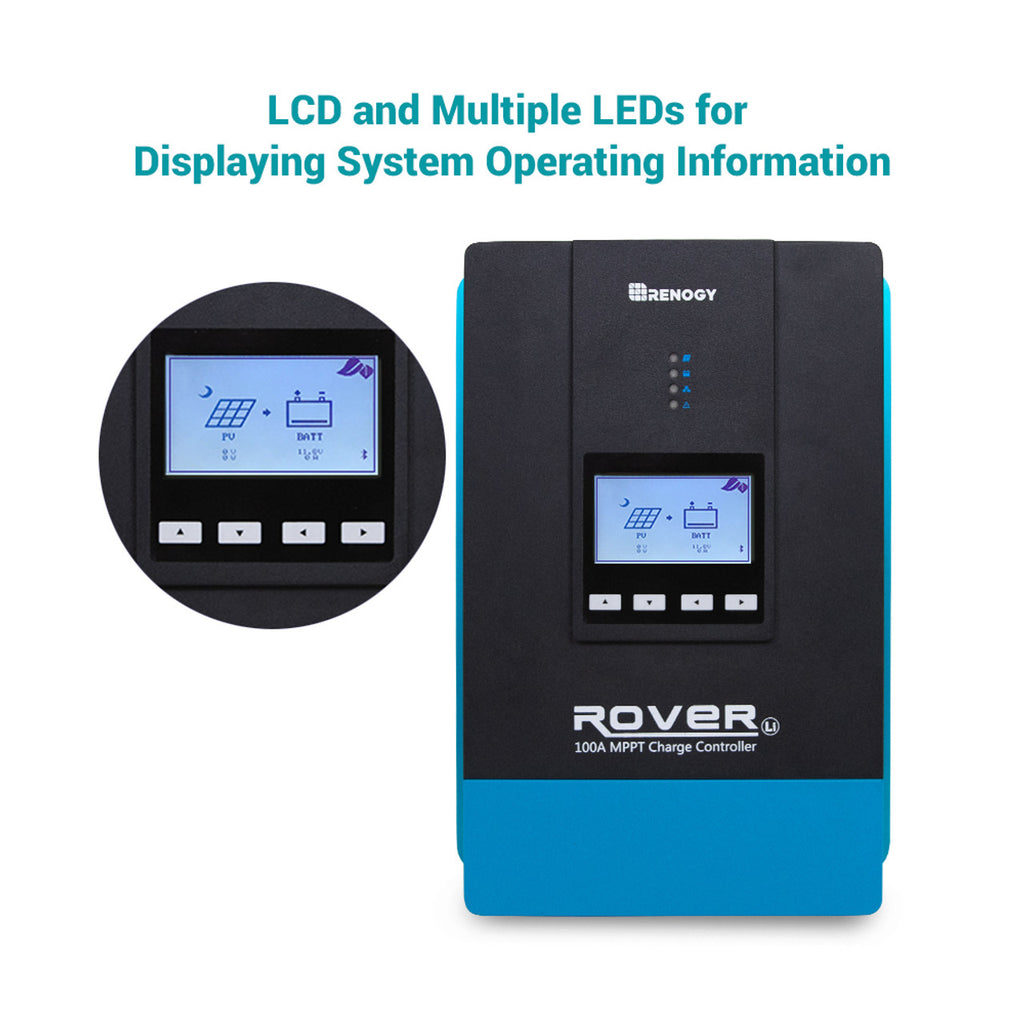

• LCD screen and multiple LED indicators
• Displays system operation information, customizable parameters, and error codes

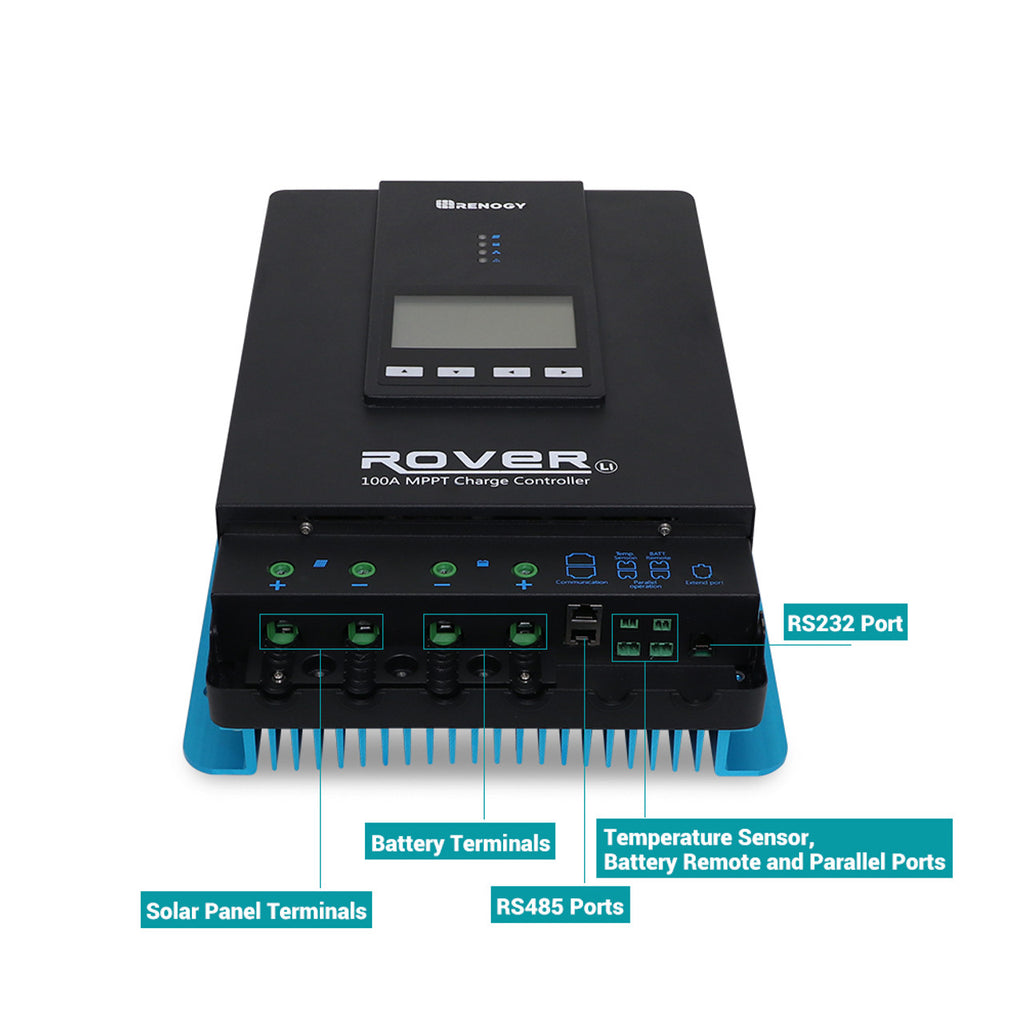

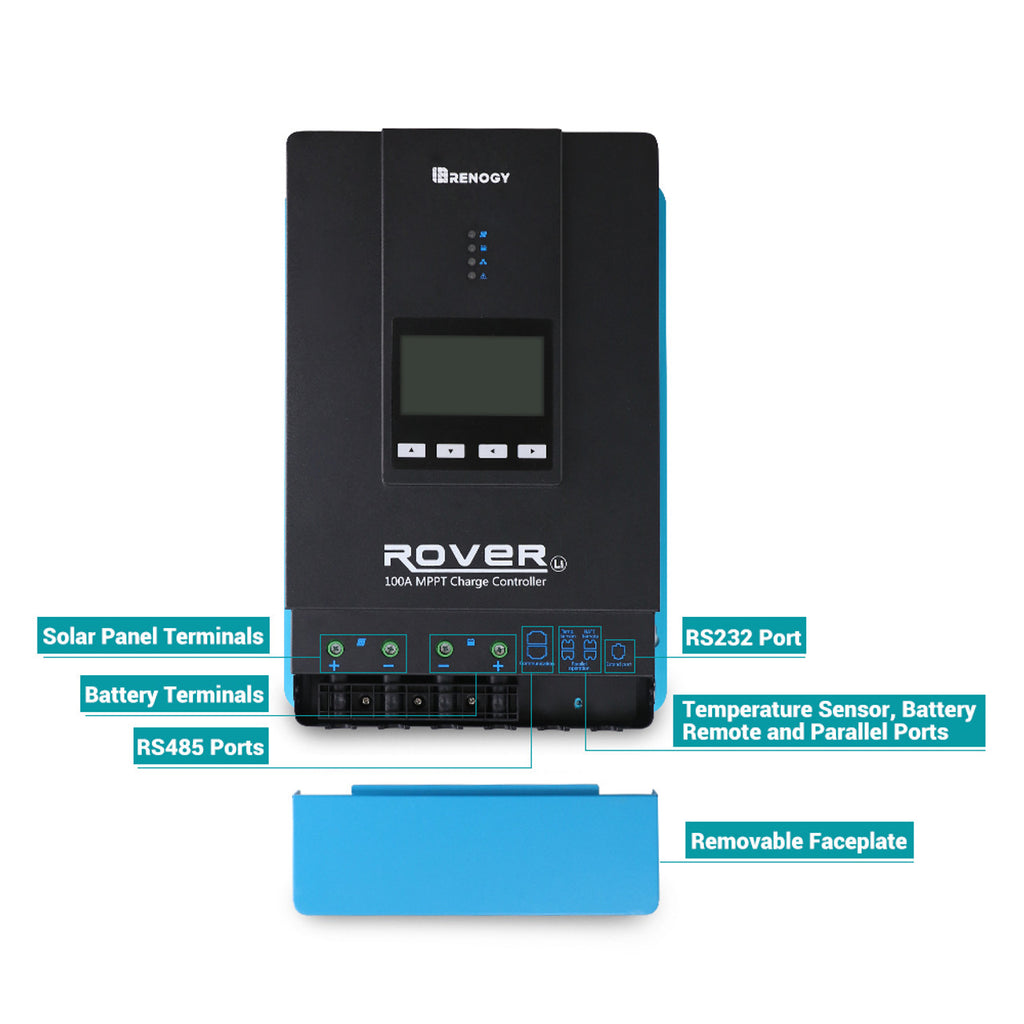

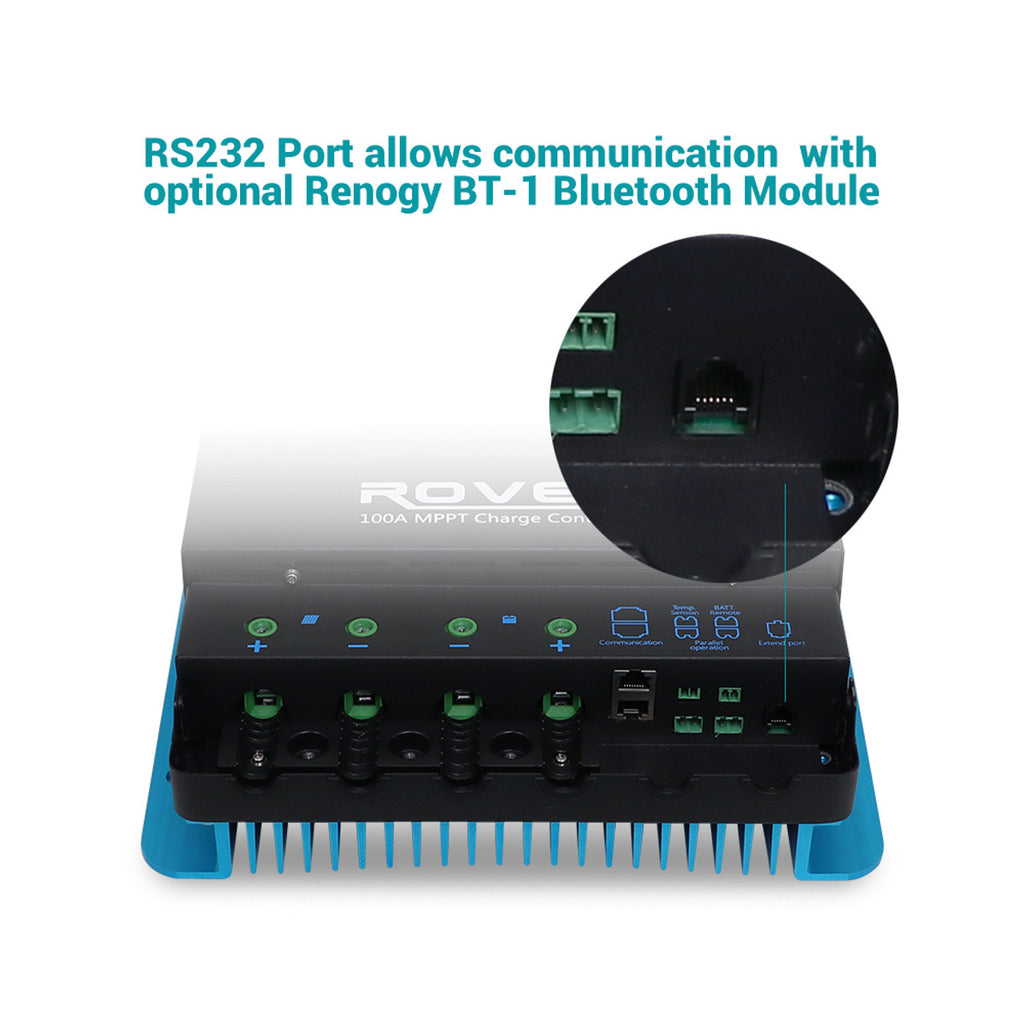

• The integrated RS232 port can work with the BT-1 Bluetooth module
• The RS485 port can work with the BT-2 Bluetooth module
• Delivers real-time energy data across the DC Home smart phone app
SPECIFICATIONS:
Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current: 100A
Max. PV Input Power: 1300W/12V; 2600W/24V; 3900W/36V; 5200W/48V
Max. PV Input Voltage: 150VDC (25°C), 140VDC(-25°C)
Self-Consumption: 2.7W - 2.9W
Operating Temperature: -35°C to +45°C
Temperature Compensation: -3mV/°C/2V (default)
Dimensions: 12.00 x 17.44 x 4.35 in
Weight: 22 lb.
Enclosure: IP32
Terminals: 25mm2, 4AWG
Certification: CE
Compatible Bluetooth: Renogy BT-1 & BT-2 Bluetooth module
Warranty -Accessories: 2-Year material warranty
WHAT’S IN THE BOX:
1 x Renogy Rover 100A MPPT Solar Charge Controller

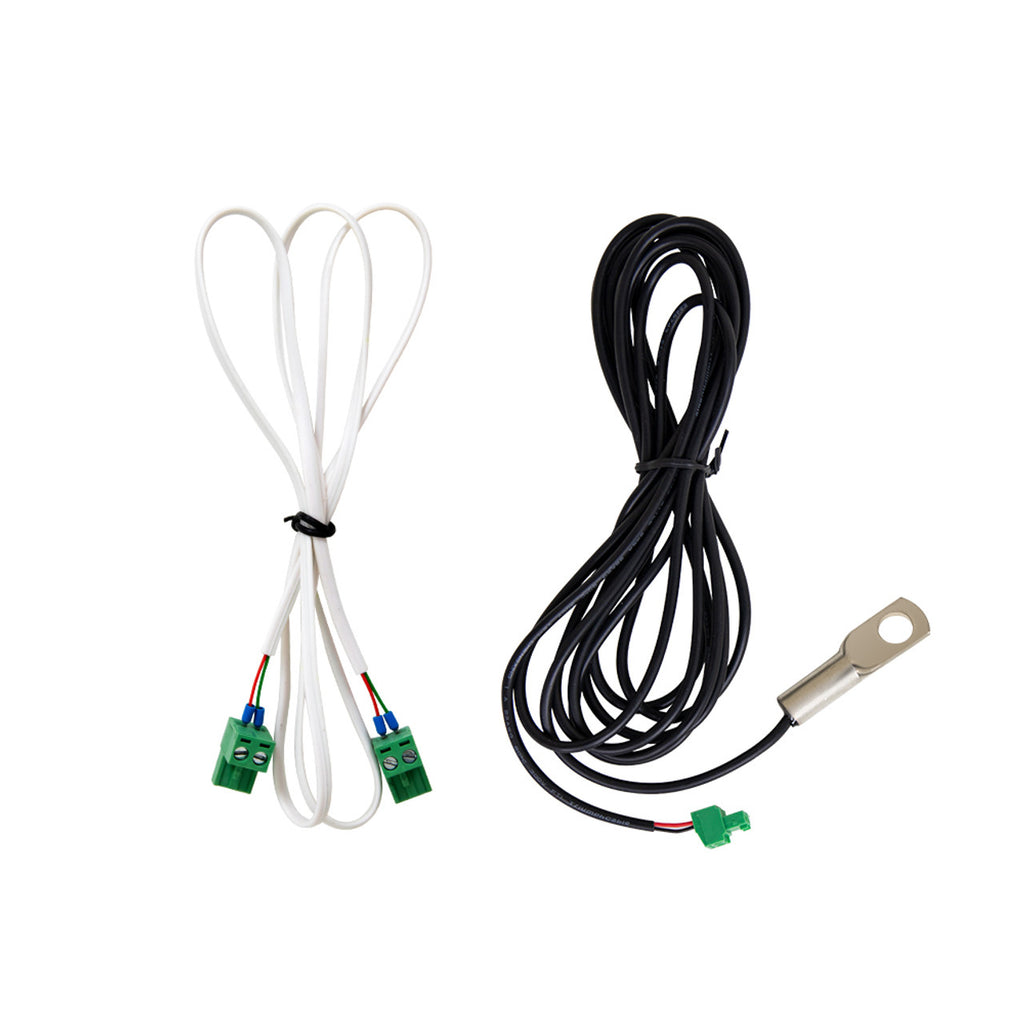

1 x Remote Temperature Sensor
1 x Controller Paralleling Cable
