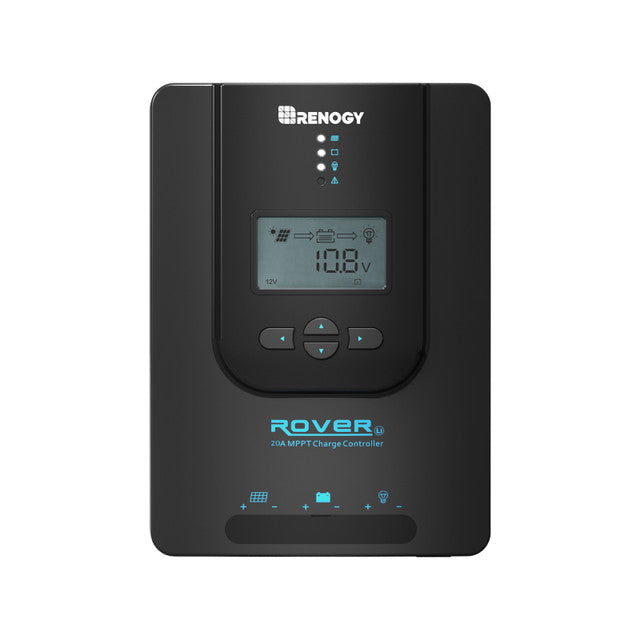

Renogy Rover Li 20 Amp MPPT Solar Charge Controller
Introducing the Renogy Rover Li 20 Amp MPPT Solar Charge Controller - the ultimate power hub for your solar system. Designed to maximize energy efficiency, this advanced charge controller features MPPT technology to optimize the conversion of solar energy into usable power.
With a sleek and compact design, the Rover Li 20 is easy to install and operate, making it perfect for residential and commercial applications. This controller is compatible with all 12V and 24V solar panels, ensuring versatility and seamless integration with your existing setup. Rover charge controllers are unique in that they can quickly dissipate heat, guaranteeing effective operation even in the harshest conditions, and protecting your batteries and other system components.
With our MPPT charge controller, enjoy charging with unmatched efficiency. Using all of the sunshine it receives, this controller makes sure your batteries are charged to their full potential. It can fully charge a 12V 100Ah battery in just 4.9 hours, which makes it the ideal travel companion for off-grid excursions.
Take control of your energy consumption and harness the power of the sun with the Renogy Rover Li 20 Amp MPPT Solar Charge Controller!
Highlights:
• Efficient MPPT technology
• LiPO4 Battery compatibility
• Custom charging parameters
• Real-time monitoring
• Remote energy control
• Unmatched efficiency in tracking, conversion, and heat dissipation
• Intelligent 4-stage charging & automatic 12V/24V voltage detect

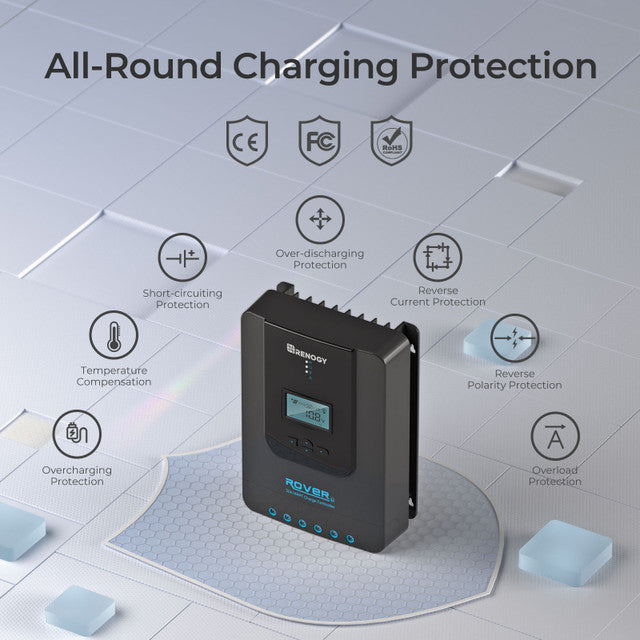

• Multiple electronic protections
• Remote monitoring with RS485 communication port
• Low-temperature charging protection
SPECIFICATIONS:
Electrical Parameters

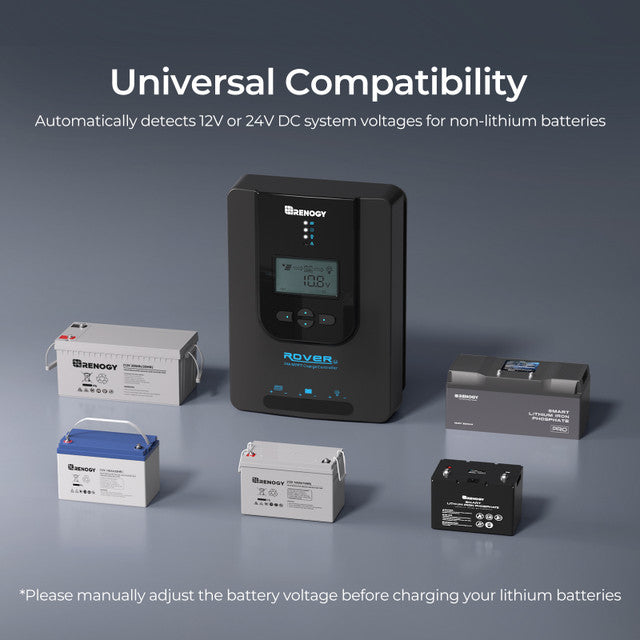

Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)
Rated Charge Current: 20A
Max. PV Input Voltage: 95 VDC
Max. PV Input Power: 12V/260W, 24V/520W
Power Consumption: ＜100mA/12V; ＜58mA/24V
Max Battery Voltage: 32V
Ground Type: Negative
Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level: IP32

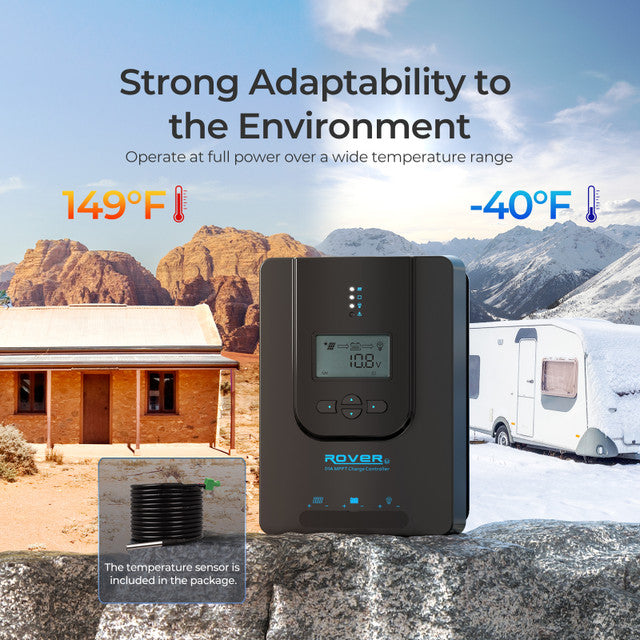

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
Mechanical Specifications
Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in
Weight: 3.1 lbs / 1.4 kg
Max. Terminals Size: 8 AWG 10mm2
Certifications
CE: YES
FCC Class B Part 15 Compliant: YES
Warranty: Material and workmanship warranty: 3 Year

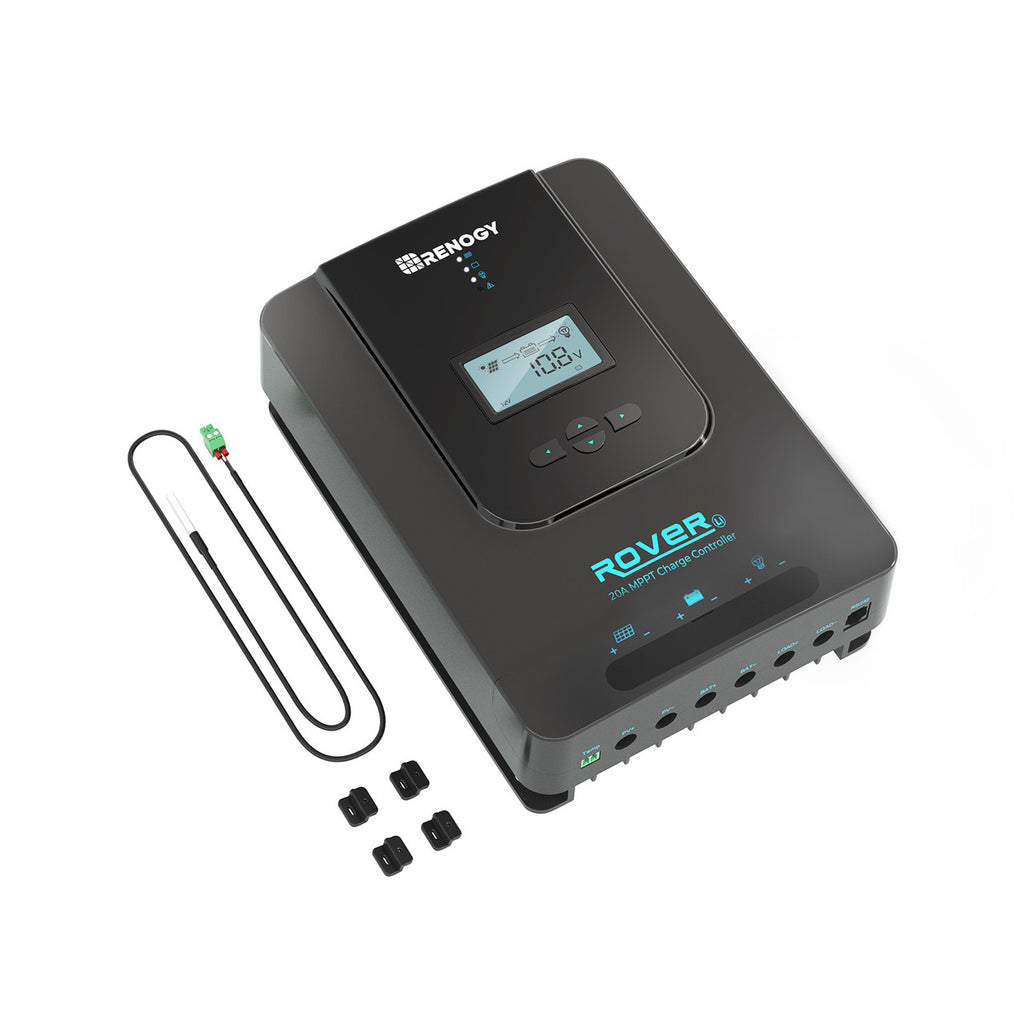

WHAT’S IN THE BOX:
1 x Renogy Rover 20A MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x User Manual
