Renogy Rover Li 30 Amp MPPT Solar Charge Controller with Bluetooth Module + Renogy One Core
Unleash full power in any environment with the ultimate power combo for your solar system setup- the Renogy Rover Li 30 Amp MPPT Solar Charge Controller with Bluetooth Module and the Renogy One Core!

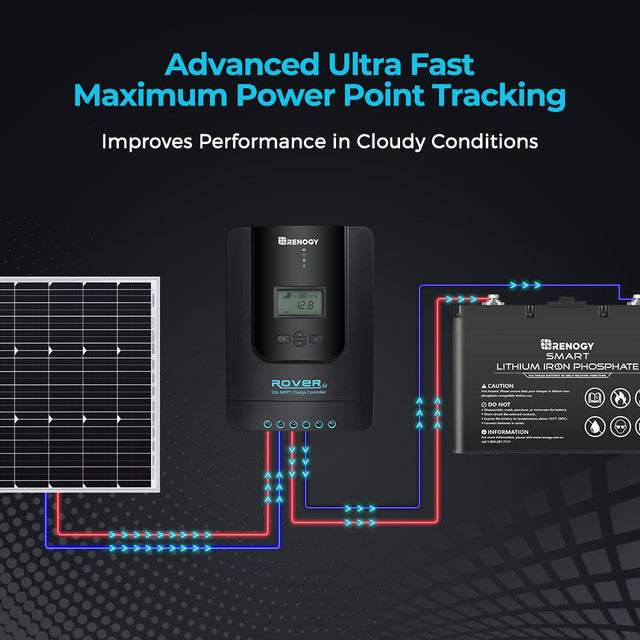

Maximize the efficiency of your solar panels with the Rover Li 30 Amp MPPT Solar Charge Controller, featuring Maximum Power Point Tracking technology (MPPT) with a tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the maximum power point of the solar panels will fluctuate all day. This controller guarantees system safety with its numerous technological protections and low-temperature charging prevention. Take advantage of remote monitoring with the RS485 communication interface, intelligent 4-stage charging, and automatic 12V/24V voltage detection.
Power your adventures faster as the Rover Li 30 Amp MPPT Solar Charge Controller harnesses every bit of sunlight, ensuring optimal charging for your batteries. In just 3.2 hours, it can fully charge a 12V 100Ah battery, making it the perfect companion for your off-grid adventures. To prevent undercharging in cold areas (down to -40°F) and overcharging in hot weather (up to 149°F), the Rover 30A Solar Charge Controller uses an external temperature sensor that is included.

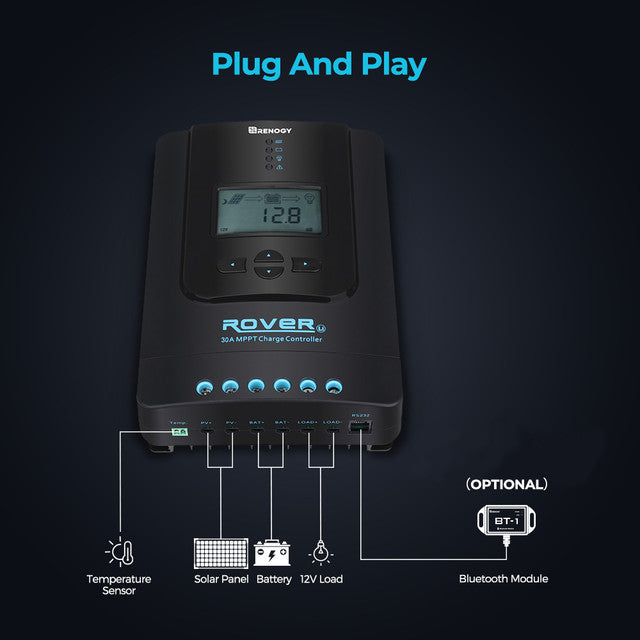

Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller. You can easily connect the Bluetooth Module to monitor and control your solar system right from your smartphone.

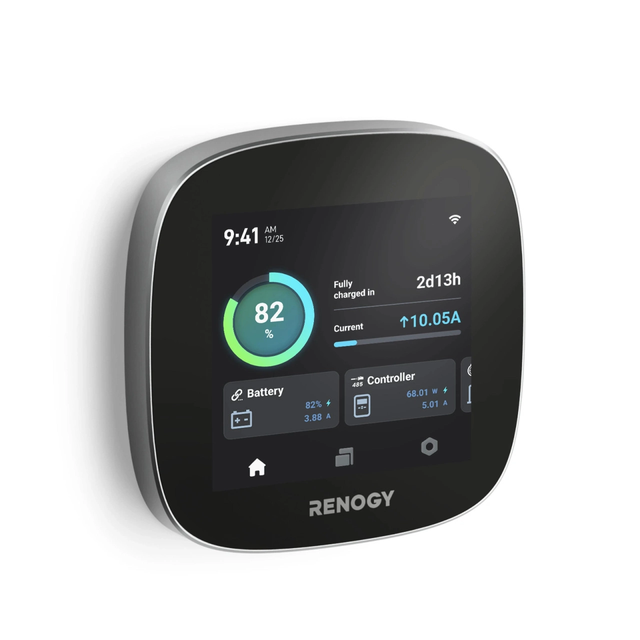

Pair it with the Renogy One Core, a high-capacity lithium iron phosphate battery that offers long-lasting power storage and superior performance. Together, these two products provide seamless integration and smart energy management for your off-grid adventures or emergency power needs.
Upgrade your solar system with the Renogy Rover Li 30 Amp MPPT Solar Charge Controller and Renogy One Core - the perfect combination for reliable, efficient, and high-performance solar power!
Highlights
• Monitoring with Renogy ONE Core
• 30A MMPT solar charge controller
• Innovative MPPT Design
• Excellent heat dissipation and Renogy MPPT with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%
• 12V/24V DC system voltages (for non-lithium battery types)
• LCD screen
• Multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes
• Full system protection

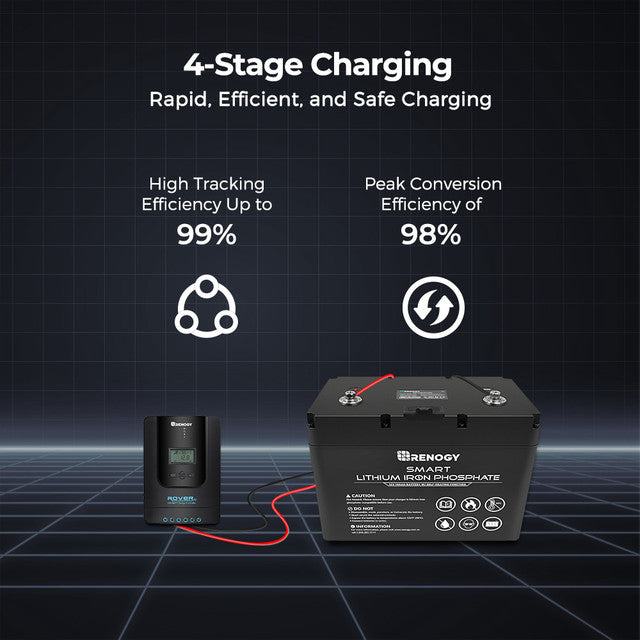

• 4-stage charging- Bulk, Absorption, Float, and Equalization of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for lithium batteries as well as Lithium reactivation
• Diverse load control

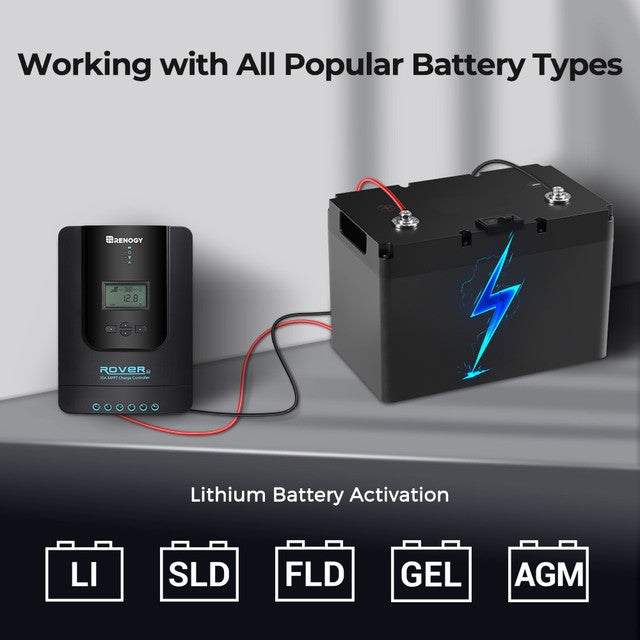

• Compatible with multiple battery types- AGM, Sealed, GEL, Flooded, and lithium batteries
SPECIFICATIONS:
Electrical Parameters
Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium types)
Rated Charge Current: 30A
Max. PV Input Voltage: 95 VDC
Max. PV Input Power: 12V/400W, 24V/800W
Power Consumption: ＜100mA/12V; ＜58mA/24V
Max Battery Voltage: 32V
Ground Type: Negative

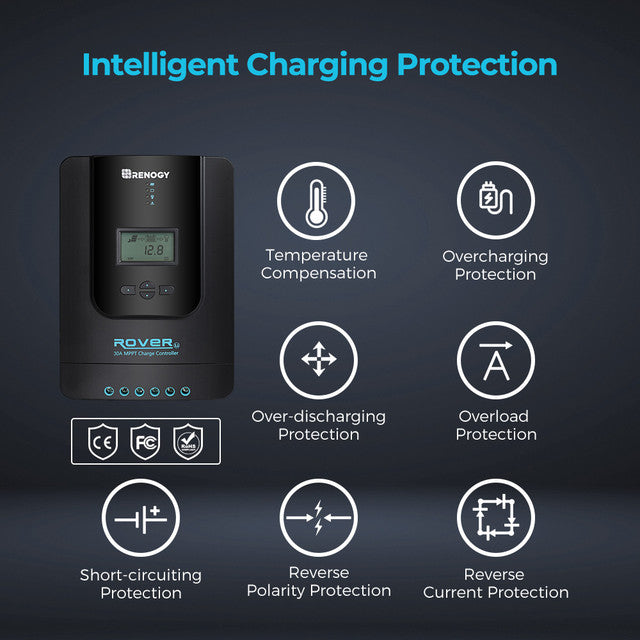

Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level: IP32
Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
Mechanical Specifications

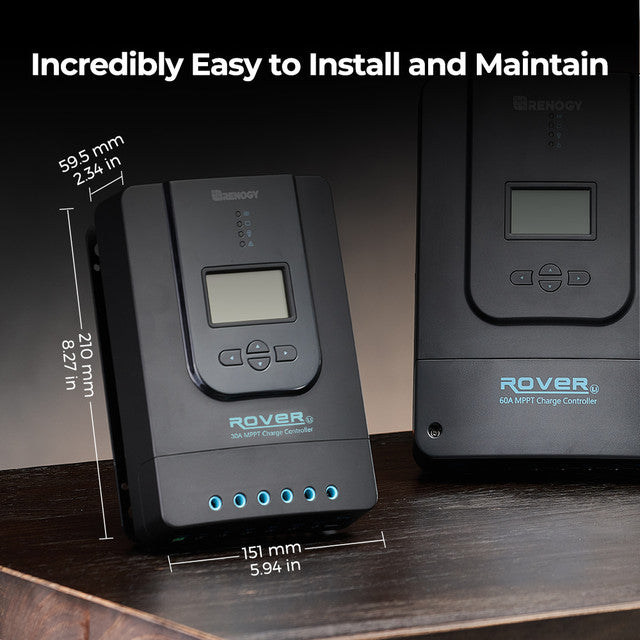

Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight: 4.4 lbs / 2.0 kg
Max. Terminals Size: 8 AWG 10mm2
Certifications
CE: Yes
FCC Class B Part 15 Compliant: Yes
Warranty
Material and Workmanship Warranty: 2-year
RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1)
Compatibility
Compatible PWM Charge Controller: RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI
Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30/ RNG-CTRL-RVR40/RNG-CTRL-RVR60S/ RNG-CTRL-RVR100
Compatible App: Renogy DC Home App available in both the App Store and Google Play
Mechanical Specifications
Communication Range: ≤82ft (25m)
Cable Length: 16.4 ft (5.00 m)
Dimensions: 9.38 x 6.78 x 3.05 in (238 x 172 x 77 mm)
Weight: 4.58oz (130 g)
Operation Temperature: -4°F to 185°F (-20℃~85℃)
Operation Specifications
Communication Protocol: RS232
Port Type: RJ12
Input Voltage: 5V
Protection Grade: IP54
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Serial Baud Rate: Fixed Baud Rate 9600bps
Certifications
FCC Class B Part 15 Compliant: Yes
Warranty
Material and Workmanship Warranty: 2 Year
Charge Controllers: Rover
WHAT’S IN THE BOX:
1 x Renogy Rover 30 Amp MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x BT-1 Bluetooth Module
