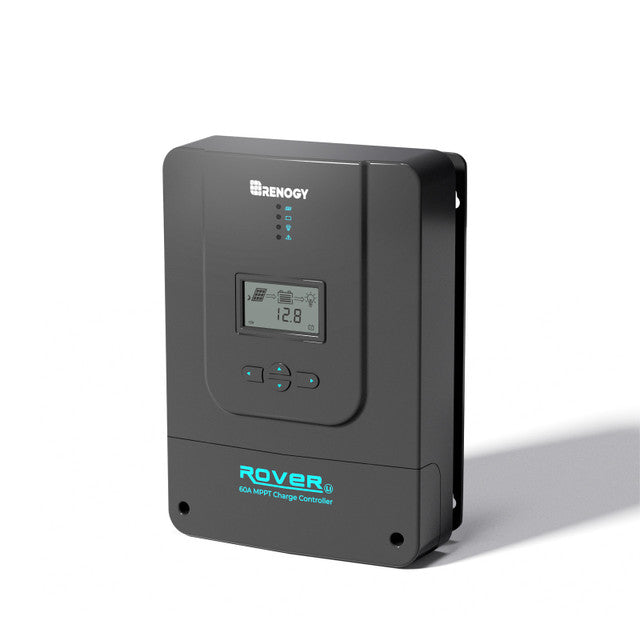

Renogy Rover Li 60 Amp MPPT Solar Charge Controller
Introducing the Renogy Rover Li 60 Amp MPPT Solar Charge Controller, designed to take your solar power system to the next level. This second-generation charge controller is packed with advanced features and cutting-edge technology to optimize the charging process for your lithium batteries.

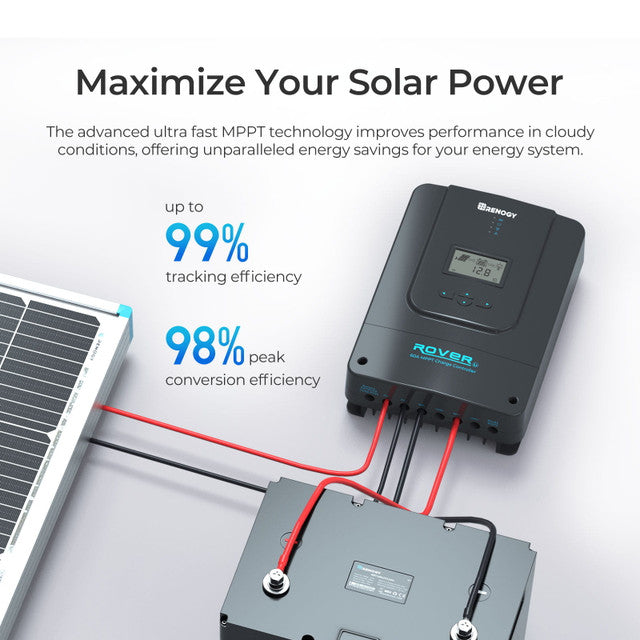

With a 98% conversion efficiency, 99% tracking efficiency, and a wide voltage input range (12V/24V/36V/48V), the Rover Li 40 Amp MPPT controller ensures maximum power delivery from your solar panels to your batteries. The built-in LCD screen displays real-time system data, making it easy to real-time monitor and track your energy production.

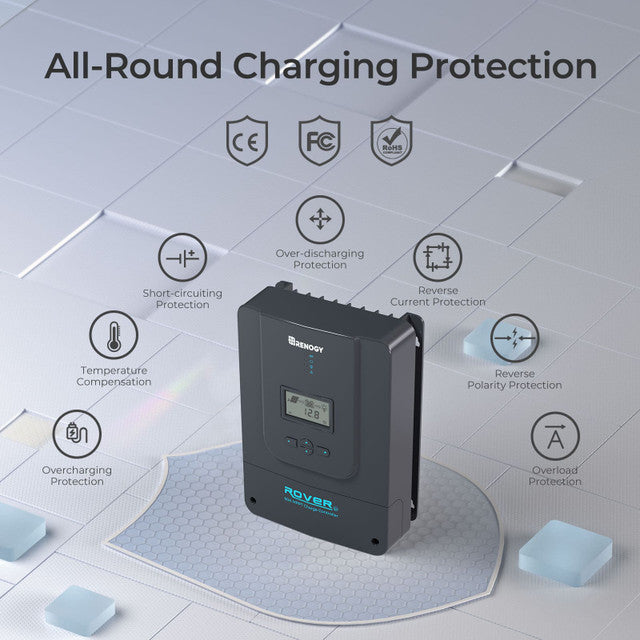

Equipped with multiple protection features, including overcharging, reverse polarity, and overloading, the Rover Li 60 Amp MPPT controller offers peace of mind and reliability for your renewable energy system. Its insulated design ensures maximum protection against electrical hazards and the compact size makes it easy to install and integrate seamlessly into any solar power setup. The included external temperature sensor helps the Rover 60A Solar Charge Controller track the battery's temperature all year round, avoiding under-charging in cold climates down to -40°F, and overcharging in blazing weather up to 149°F.
The Renogy Rover 60A Solar Charge Controller features 8 electronic protections to actively monitor changes in voltage, current, and load for efficient and safe battery charging.
Take control of your energy generation with the Renogy Rover Li 60 Amp MPPT Solar Charge Controller!
Highlights:
• Robust charging
• Efficient MPPT technology
• LiFePO4 Battery compatibility
• Custom charging parameters

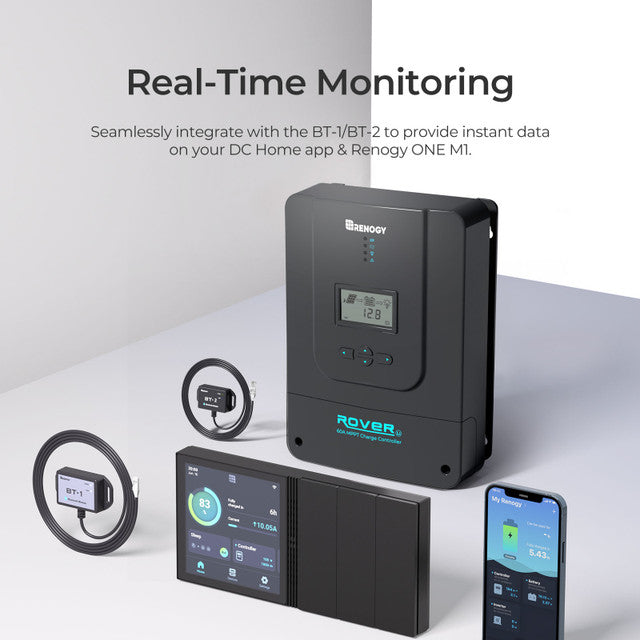

• Real-time monitoring
• 98% Conversion efficiency; 99% tracking efficiency
• Certified protections
• Made of robust die-cast aluminum

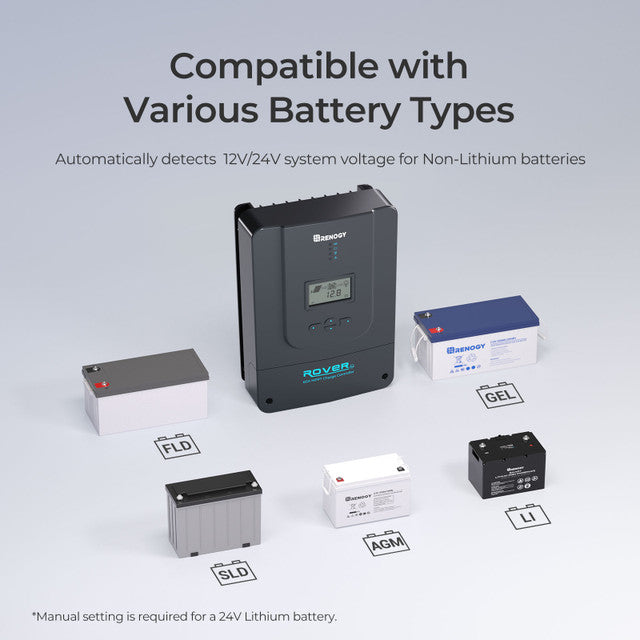

• Automatically detects 12V/24V system (non-lithium batteries)
• 60A MPPT Charger
• Simple and intuitive programming
• Powerful heat dissipation
SPECIFICATIONS:
Nominal System Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current: 60A
Rated Load Current: 20A
Max. PV Input Voltage: 140VDC
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Self-Consumption: 0.7W-1.2W
Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C )
Temperature Compensation: -3mV/°C/2V (default)
Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)
Weight: 7.9lbs
Enclosure: IP32
Terminals: 25mm2 4AWG
Certification: CE / ROHS

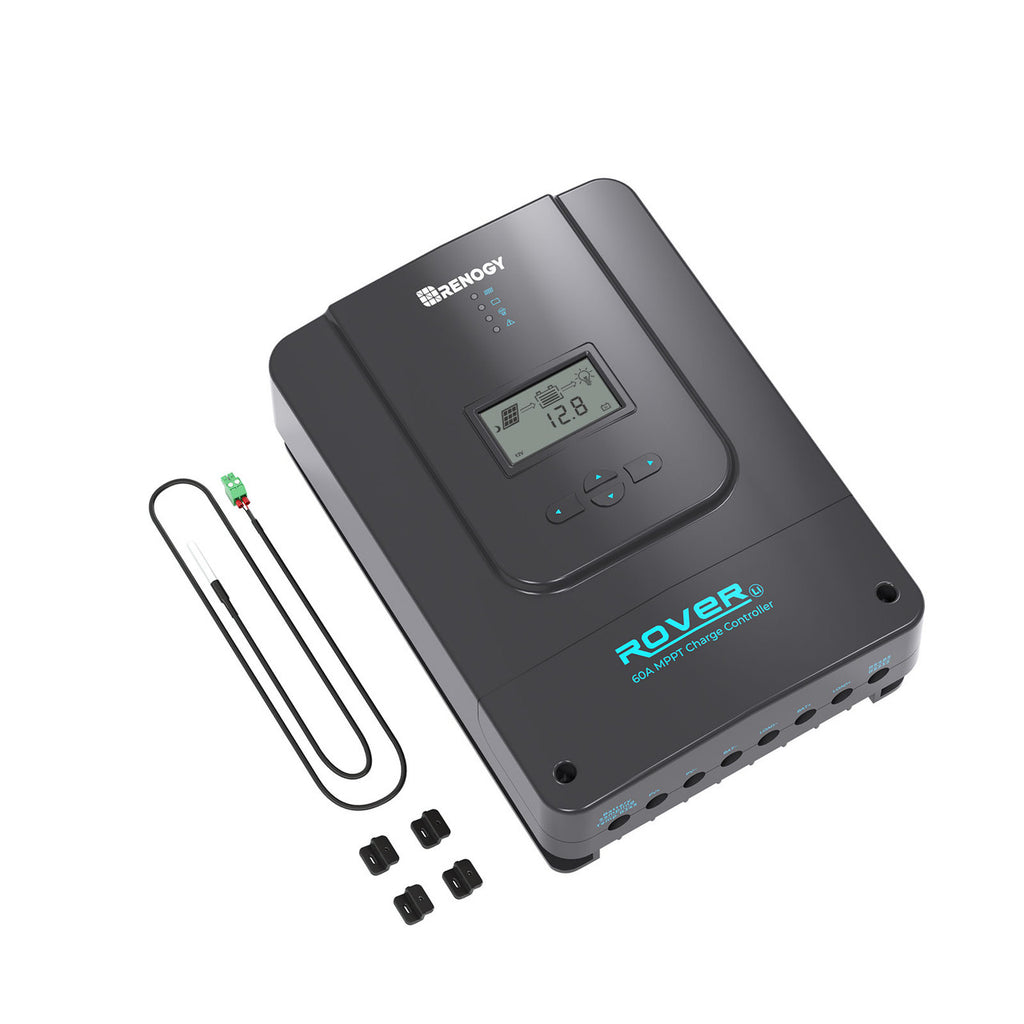

WHAT’S IN THE BOX:
1 x Renogy Rover 60A MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x User Manual
