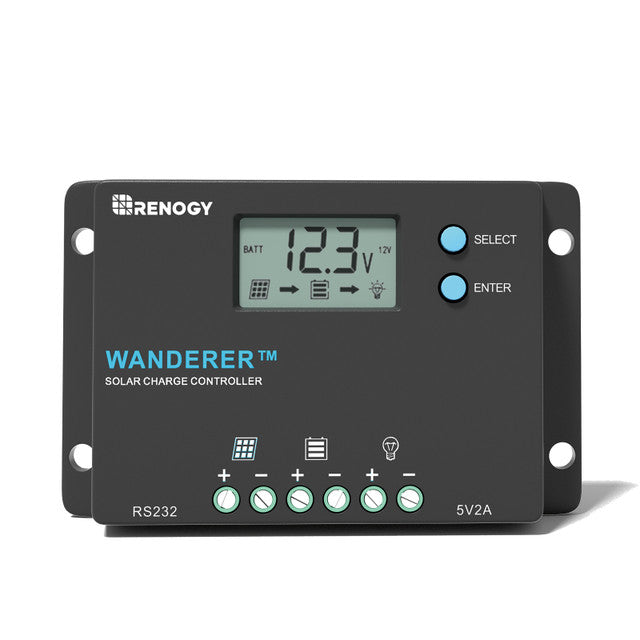

Renogy Wanderer 10 Amp 12V/24V PWM Negative Ground Solar Charge Controller
The Renogy Wanderer 10 Amp Negative Ground Solar Charge Controller features efficient PWM charging, which enhances battery life and improves overall system performance. It is designed with a user-friendly interface, including an LCD screen that displays battery information. This advanced charge controller is suitable for off-grid solar applications and can be used with either a 12-volt or 24-volt battery or battery bank. Its compact design facilitates easy installation. Additionally, the controller is equipped with comprehensive self-diagnostics and electronic protection functions to safeguard against damage caused by installation errors or system faults. It provides all-round protection for your batteries against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation.
Don't let your batteries run low - keep them charged and ready for action with the Renogy Wanderer 10 Amp PWM Negative Ground Solar Charge Controller!
Highlights

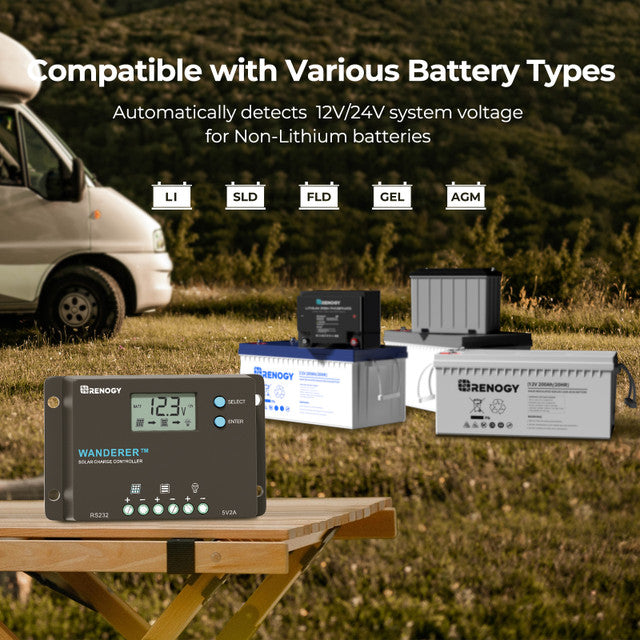

• Automatically detects 12V/24V system voltage.
• Pre-drilled mounting holes
• Recommended wire size <12AWG
• Full system protection to safeguard your energy system.
• Maximum flexibility with multiple load control modes.

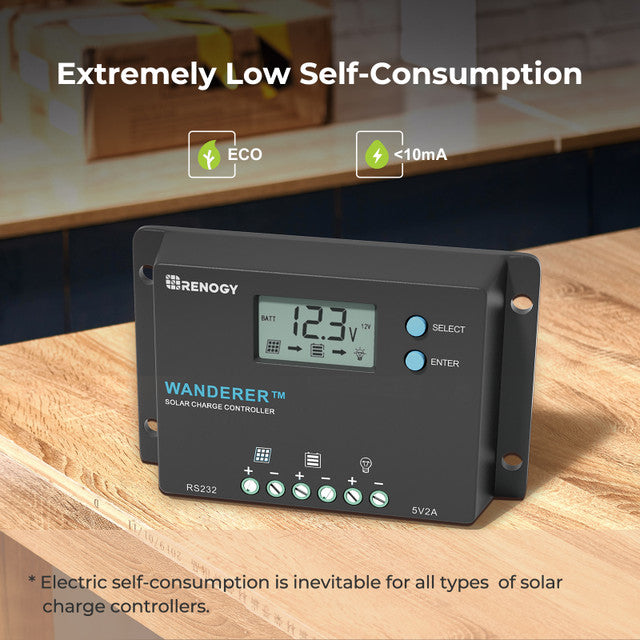

• Extremely low self-consumption.

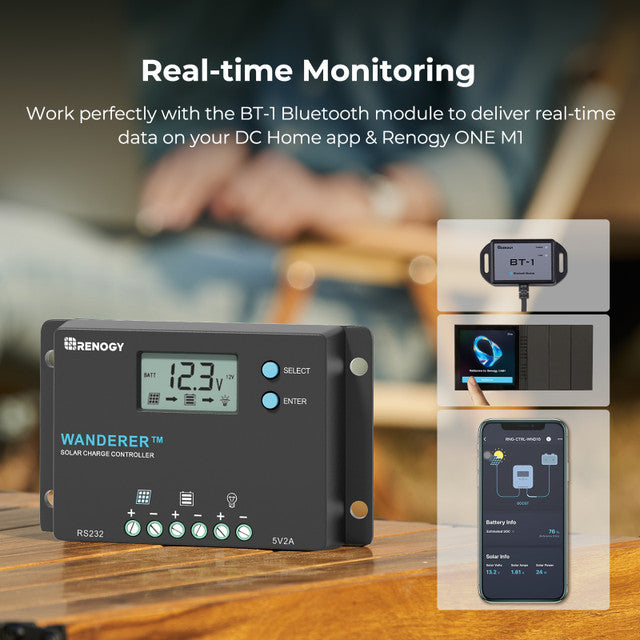

• Real-time monitoring with integrated BT-1 to provide instant data on your DC Home app & Renogy ONE M1.

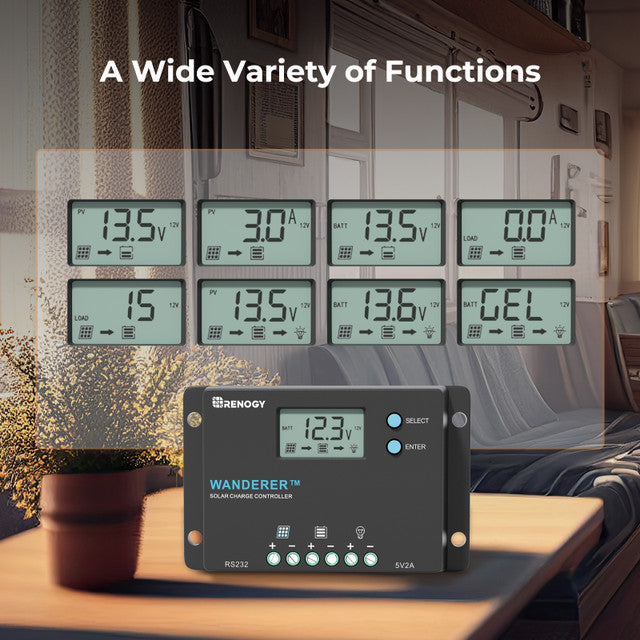

• Backlit LCD
• Strict quality control
SPECIFICATIONS:
Nominal Voltage: 12V/24V Auto Recognition for Non-lithium Batteries
Rated Charge Current: 10A
Max Gauge Size: Up to 12AWG
Max. PV Input Voltage: 50 VDC
Self-Consumption: <10mA
Working Temperature: -31°F - 113°F / -25°C - 45°C
Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x27.5mm
Weight: 0.27 lbs / 122.47g
Storage Temperature: -31°F - 176°F / -35°C - 80°C
Temperature Compensation: -3mV/°C/2V
Max PV Input: 130W / 12V; 260W / 24V
Certification: CE / ROHS

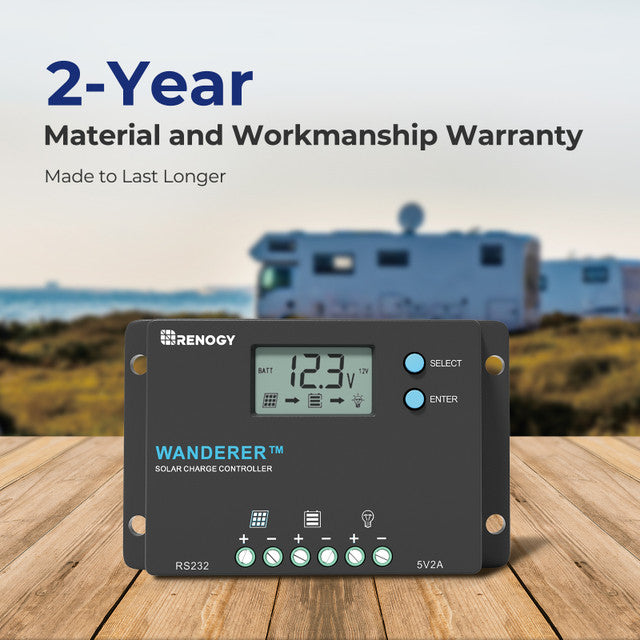

Accessories: 2-Year Material Warranty
Charge Controllers: Wanderer
WHAT’S IN THE BOX:
1 x Renogy Wanderer 10A PWM Charge Controller
