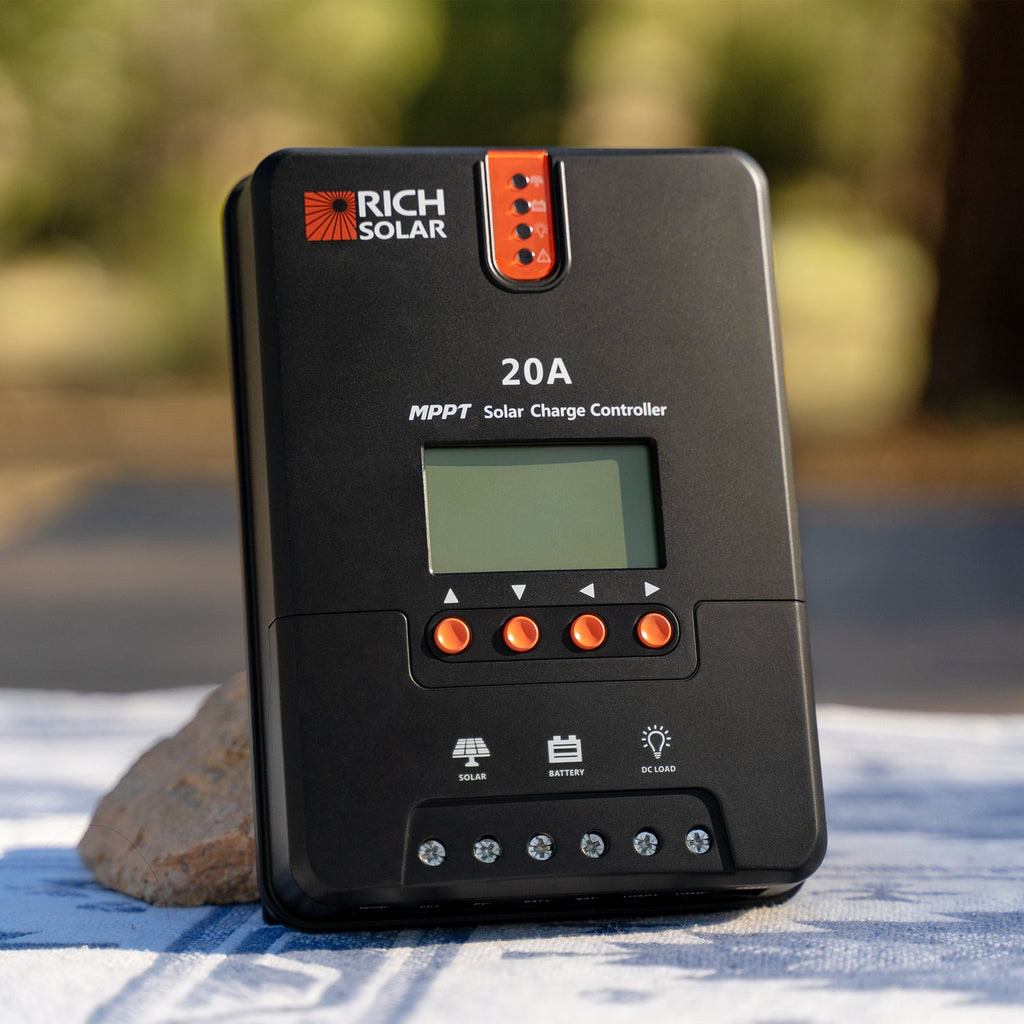

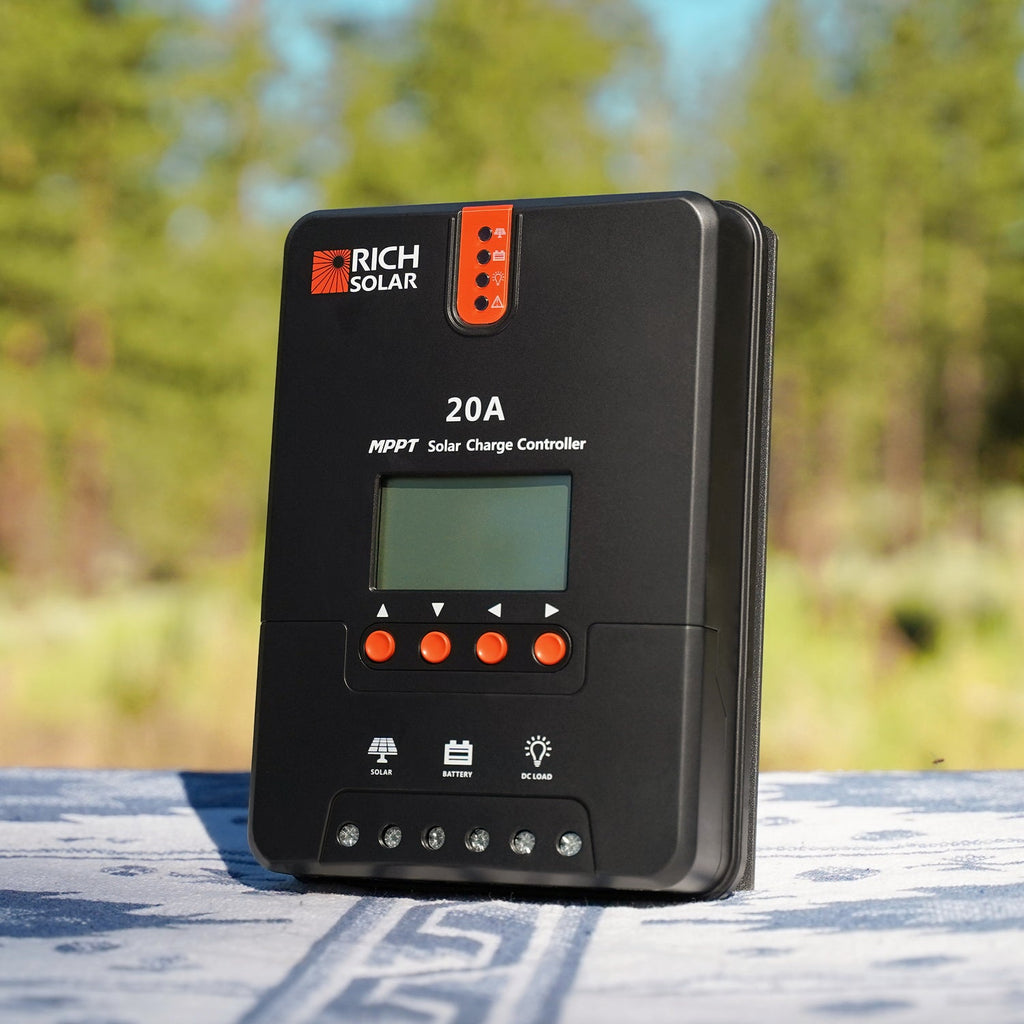

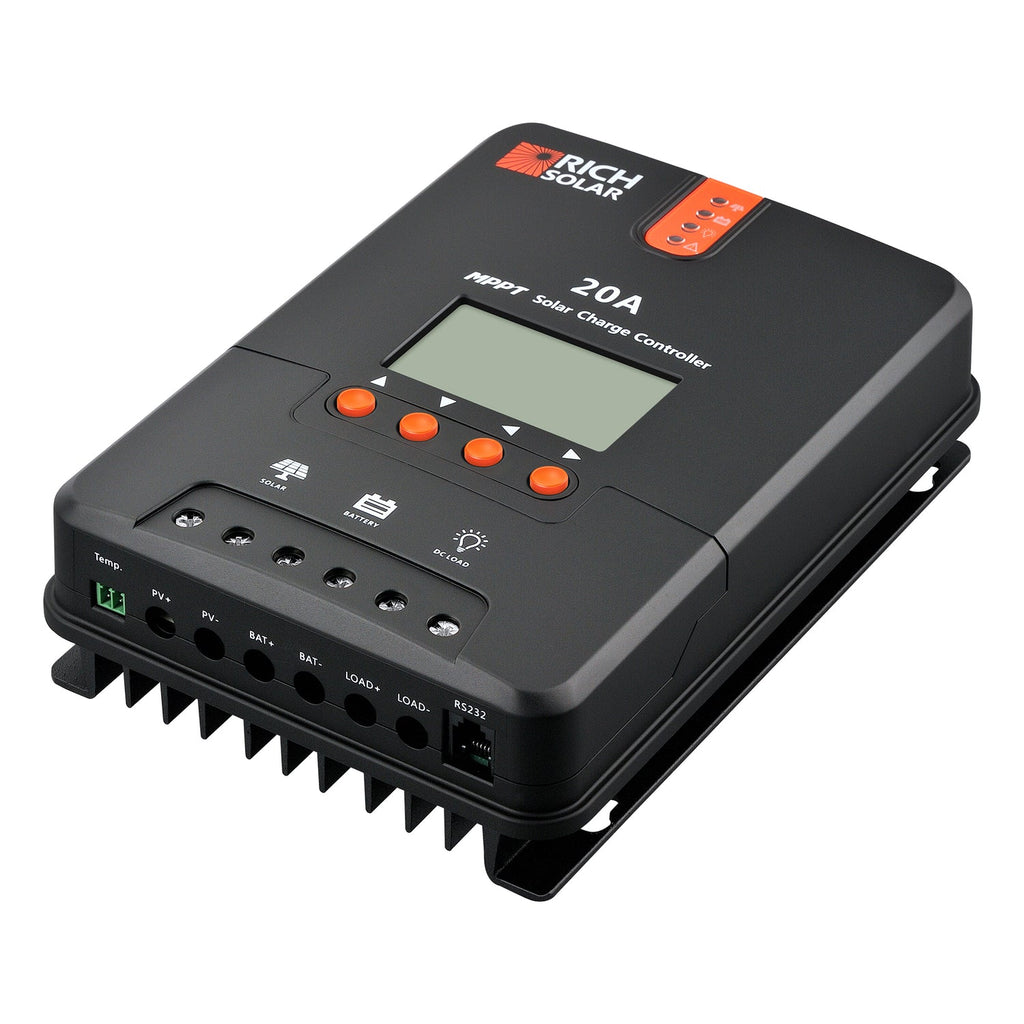

Rich Solar 20A MPPT solar charge controller
Rich Solar introduces the 20A MPPT, a petite solar charge controller to manage the way you harness the power of solar energy for personal use. Fitted with the innovative MPPT tech, this solar charge controller achieves 99% tracking efficiency and 98% conversion efficiency.
Compatible with deep cycle batteries including Sealed, Gel, Flooded and Lithium, it features diverse load control which mean this controller can charge even your over-discharged lithium batteries.
An intuitive LCD screen with LED indicators is in place to give real time updates on operational information, customizable parameters and error codes. While the superior electronic set up keeps your solar set up protected against over charging, over discharging, reverse polarity, short circuit and reverse current, the controller itself is crafted with die-cast aluminum that allows efficient heat dissipation for optimal performance at all times.
Specifications:
Nominal System Voltage: 12V/24V Auto Recognition
Rated Battery Current: 20A
Rated Load Current: 20A
Max. PV Input Short Current: 25A
Max. Battery Voltage: 32V
Max Solar Input Voltage: 100 VDC
Mounting Oval: 0.30 x 0.18 in
Net Weight: 3.08 lb
Discharge Circuit Voltage Drop: = 0.15V
Overall Dimensions: 8.27 x 5.94 x 2.34 in
What's in the Box:
1 x 20A MPPT Solar Charge Controller
