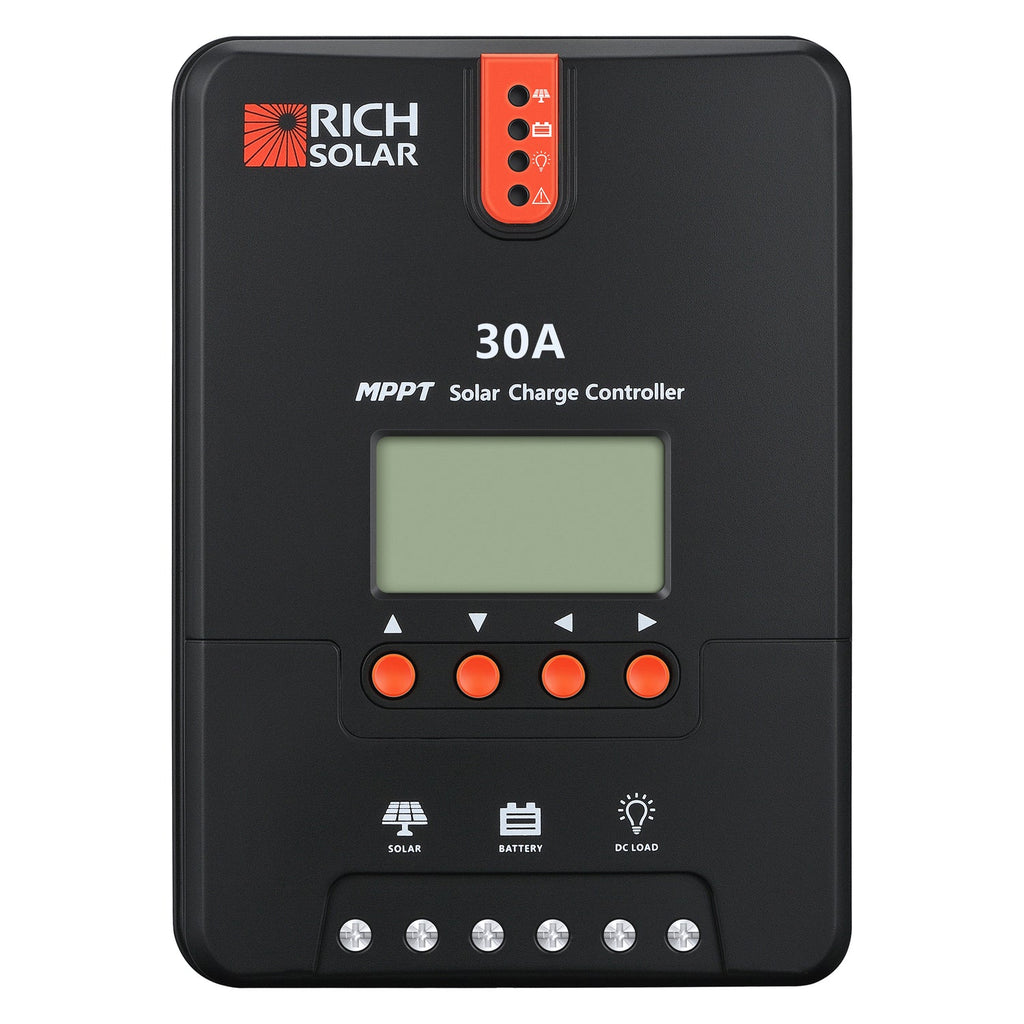

Rich Solar 30A MPPT solar charge controller

Rich Solar 30A MPPT Solar Charge Controller automatically detects 12V or 24V DC system voltages and features diverse load control. Compatible with Sealed, Gel, Flooded and Lithium deep-cycle batteries, this solar charge controller deploys advanced MPPT algorithm to locate the optimal working point in I-V curve and deliver 99% efficiency and 98% peak conversion.

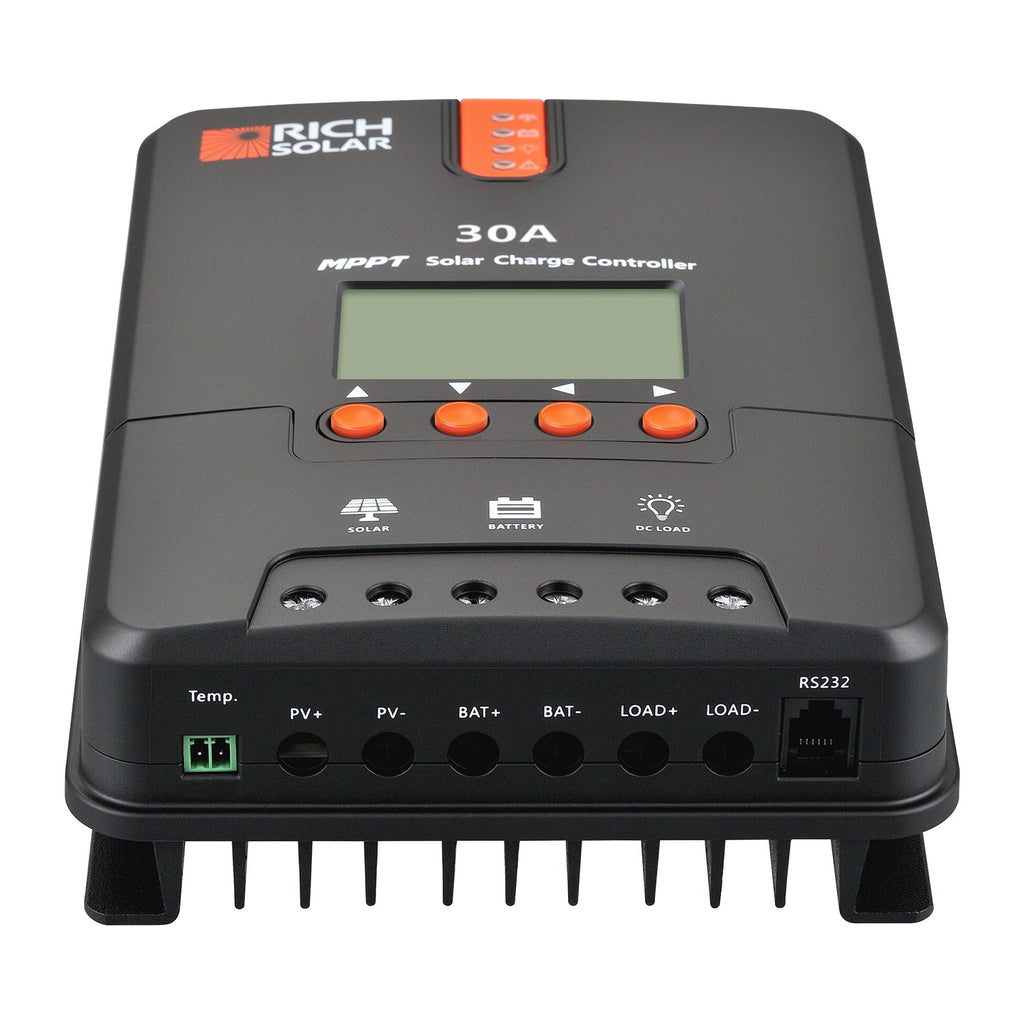

Fitted with an LCD screen and intuitive LED indicators one can get real-time readings of battery status, system operation info, customizable parameters and error codes. Constructed in die-cast aluminum, the charge controller dissipates heat effectively to deliver optimal performance at all times.

Specifications:

Nominal System Voltage: 12V/24V Auto

Rated Charging Current: 30A

Rated Load Current: 20A

Max Solar Input Voltage: 100V(25?), 90V(-25?)

Discharge Circuit Voltage drop: = 0.15V

Net Weight: 4.41lbs

Overall Dimension: 9.37 x 6.81 x 2.85in

Battery Wire Diameter: 6mm²

Load Wire Diameter: 5mm²

No-load Loss: 0.7W to 1.2W

Battery Voltage: 9V to 35V

Max. Power Point Voltage Range: Battery Voltage +2V to 75V

Max. Photovoltaic System Input Power: 400W/12V, 800W/24V

Conversion Efficiency: =98%

MPPT Tracking Efficiency: >99%

Temperature Compensation Factor: -3mv//2V Default

Operating Temperature: -35°C to +45°C

Protection Degree: IP32

Communication Method: RS232

Altitude: =3000m

Max. Capacitive Load Capacity: 1000uF

What's in the Box:

1 x 30A MPPT solar charge controller

1 x User Manual
