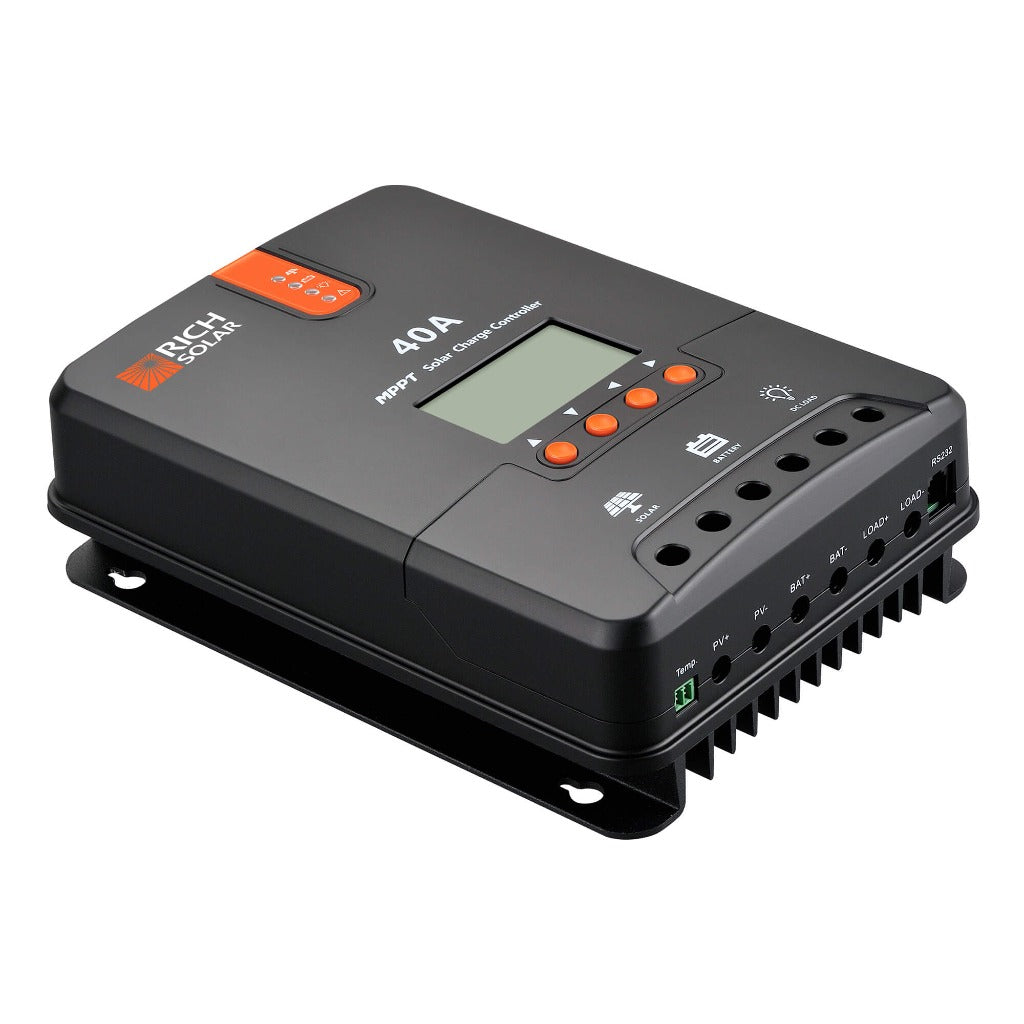

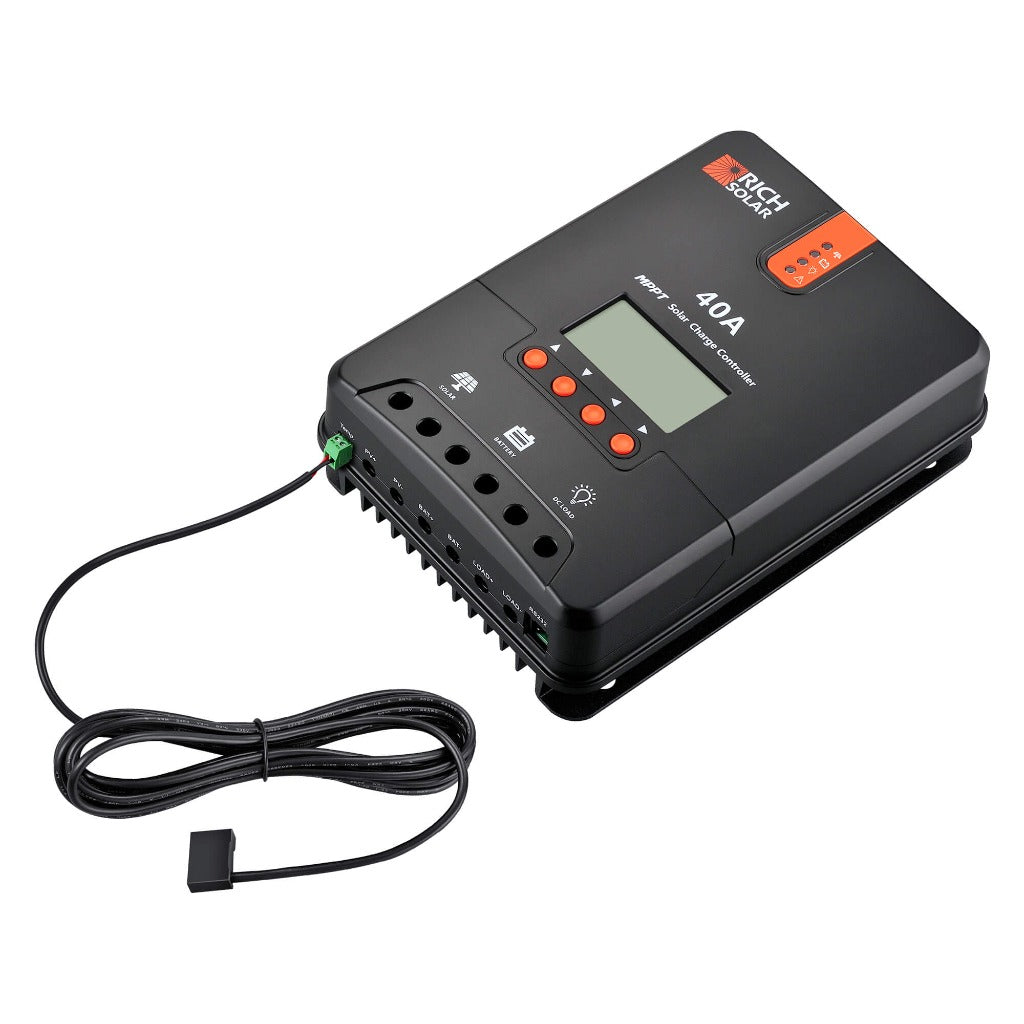

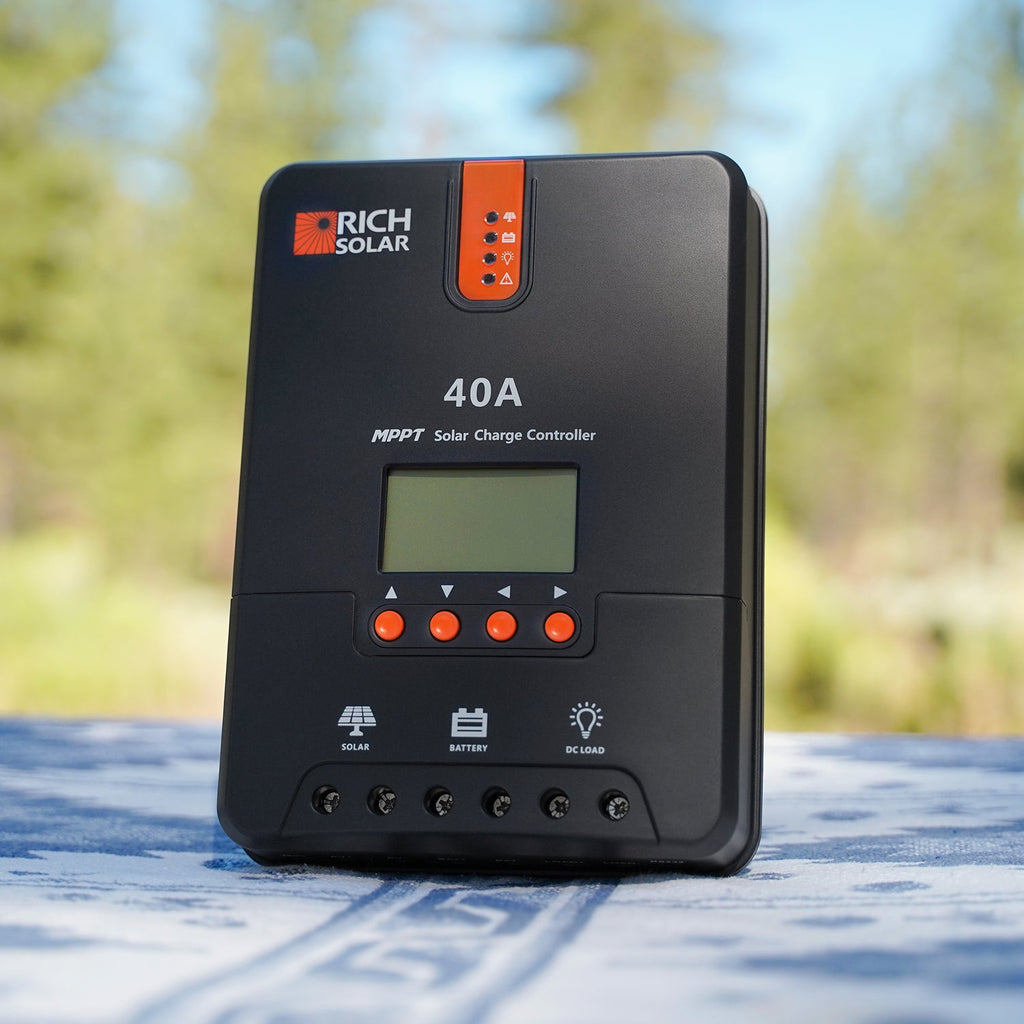

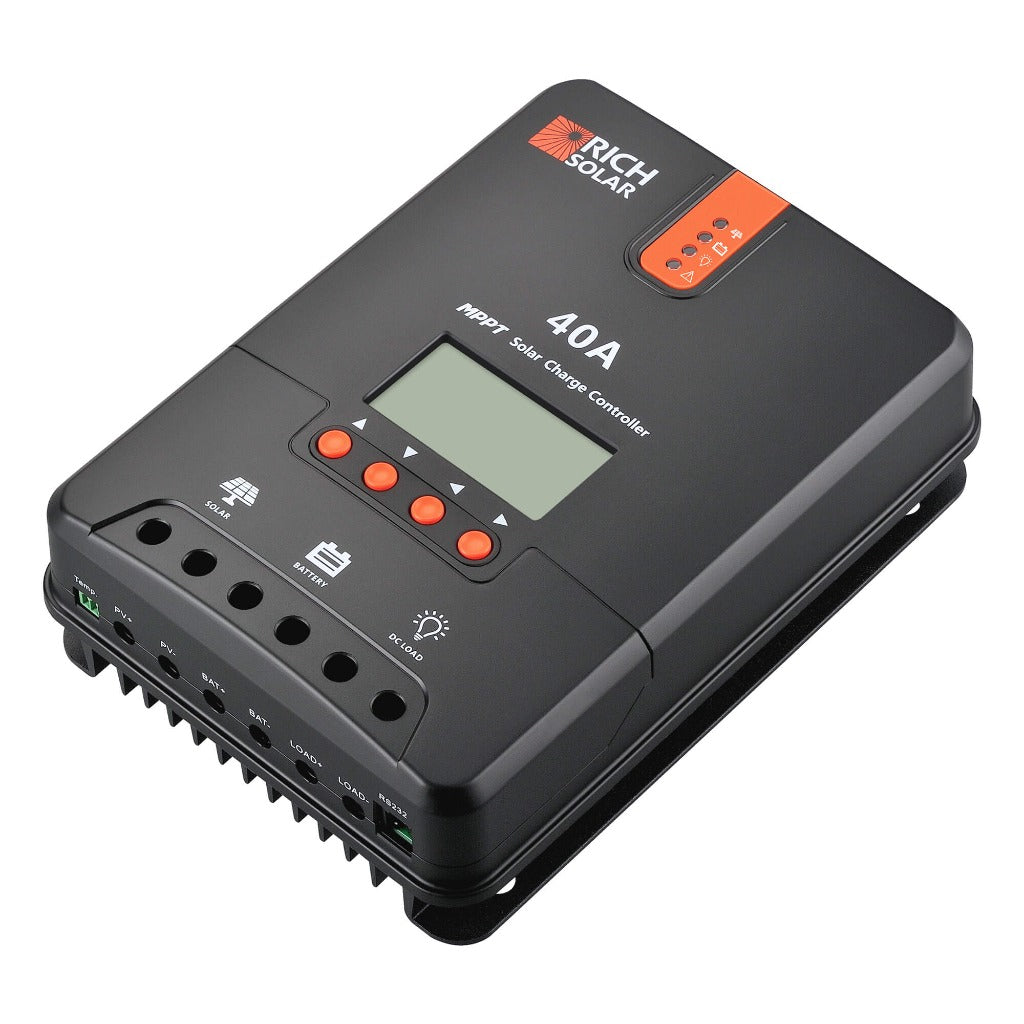

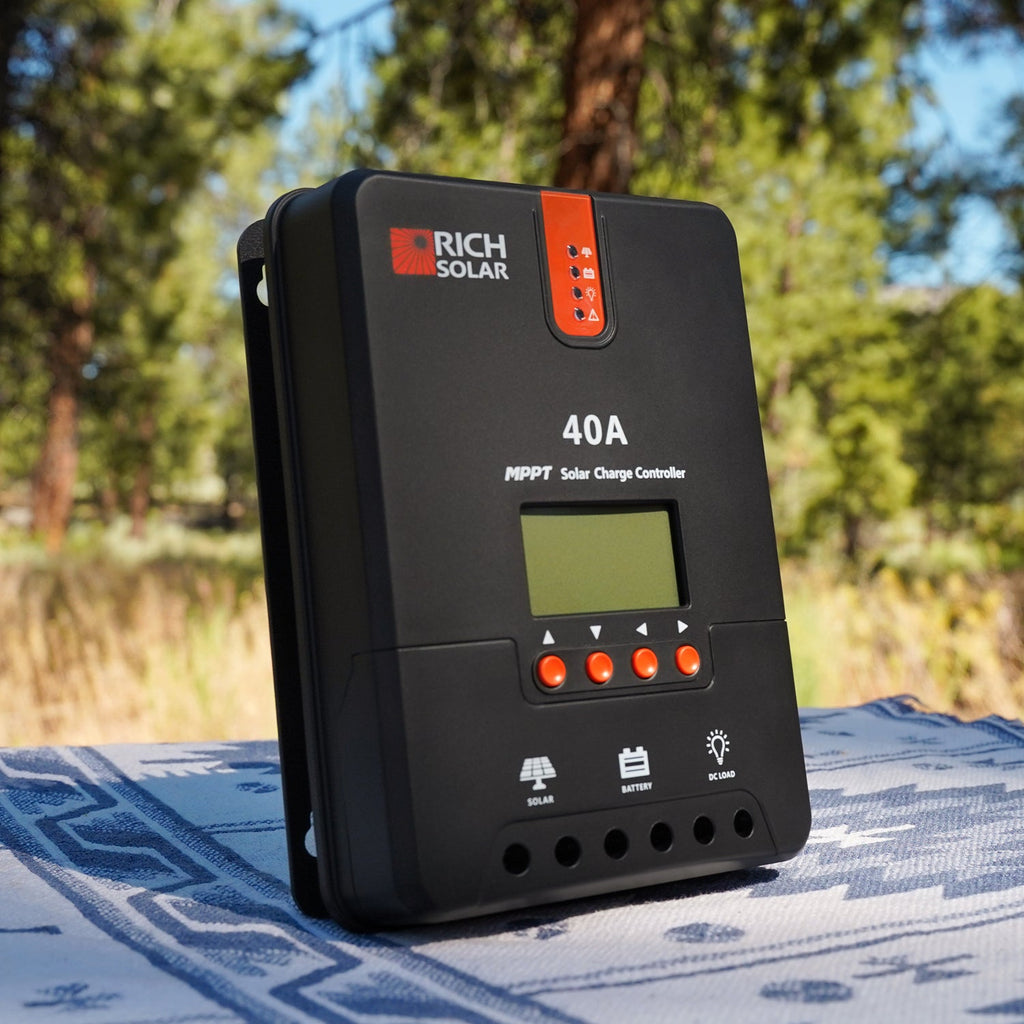

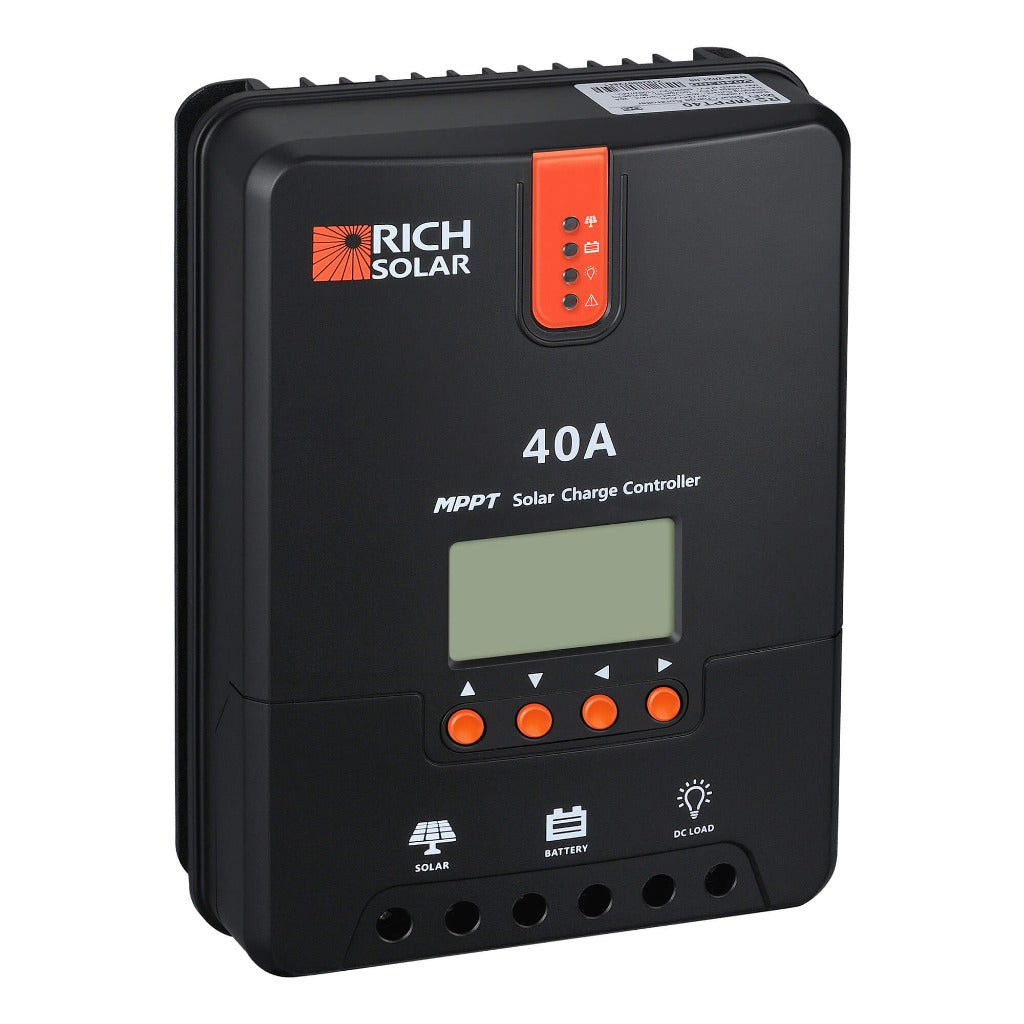

Rich Solar 40A MPPT solar charge controller

Rich Solar's 40A MPPT solar charge controller features auto detection of 12V or 24V DC system voltages and boasts of the innovative MPPT algorithm with high tracking efficiency of 99% and peak conversion efficiency of 98%.

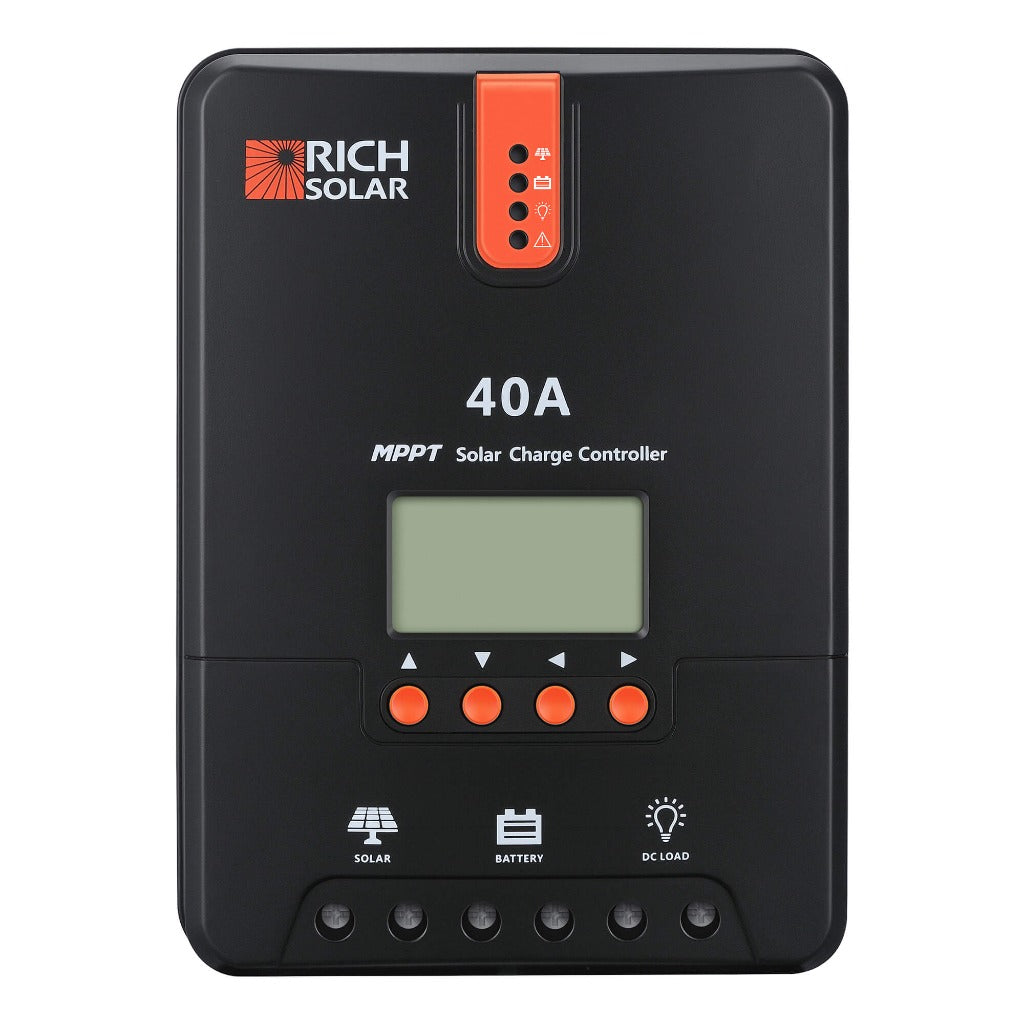

Compatible with Sealed, Gel, Flooded and Lithium deep cycle batteries, the controller comes with an LCD screen and intuitive LED indicators that keep you updated on battery operation status, settings and error codes in real time.

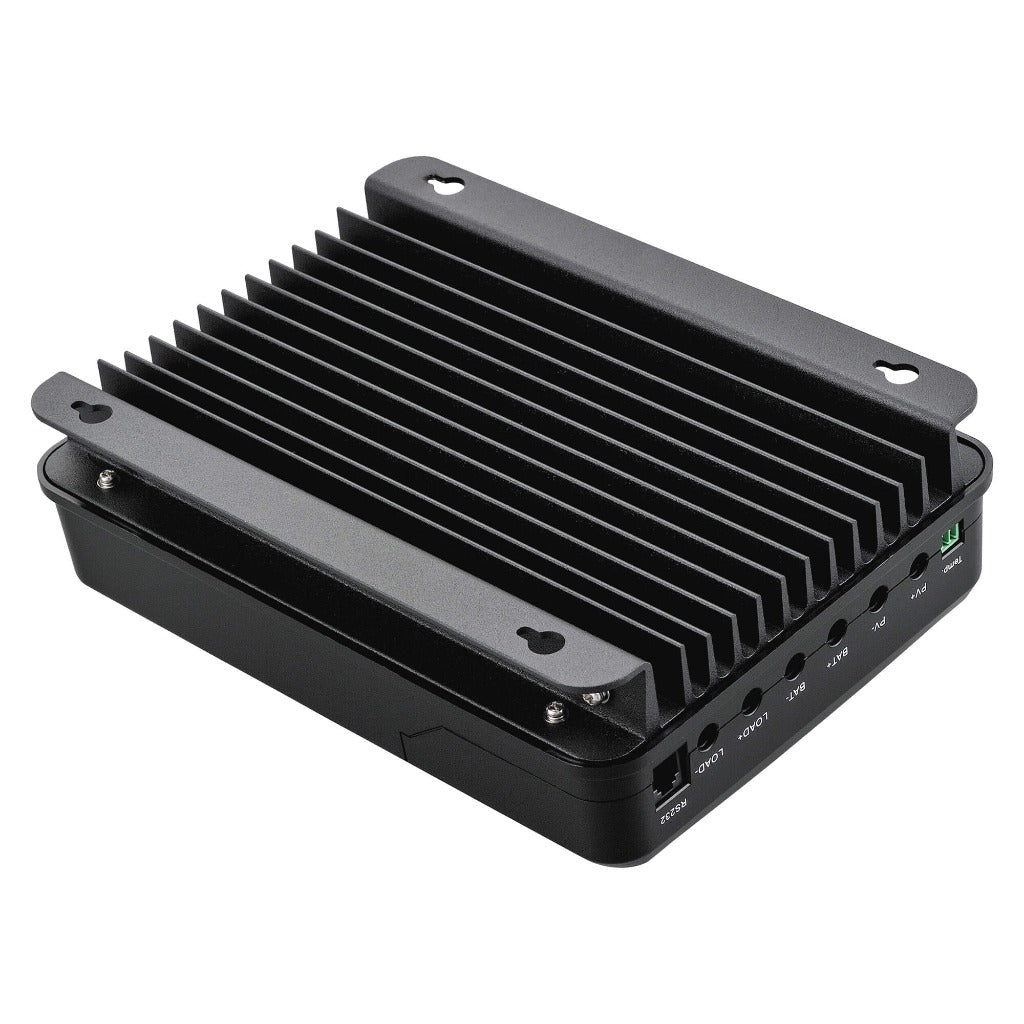

Capable of charging even over-discharged lithium batteries, this 40A MPPT solar charge controller allows efficient heat dissipation with its die-cast aluminum construction and also offers superior electronic protection against overcharging, over discharging, overload, short circuit, reverse polarity and reverse current.

Specifications:

Rated Battery Current: 40A

Rated Load Current: 20A

Max. PV Input Short Current: 50A

Max. Battery Voltage: 32V

Max Solar Input Voltage: 100VDC

Charge Circuit Voltage Drop: 0.26V

Discharge Circuit Voltage Drop: 0.15V

Working Temperature: -31°F to +113°F

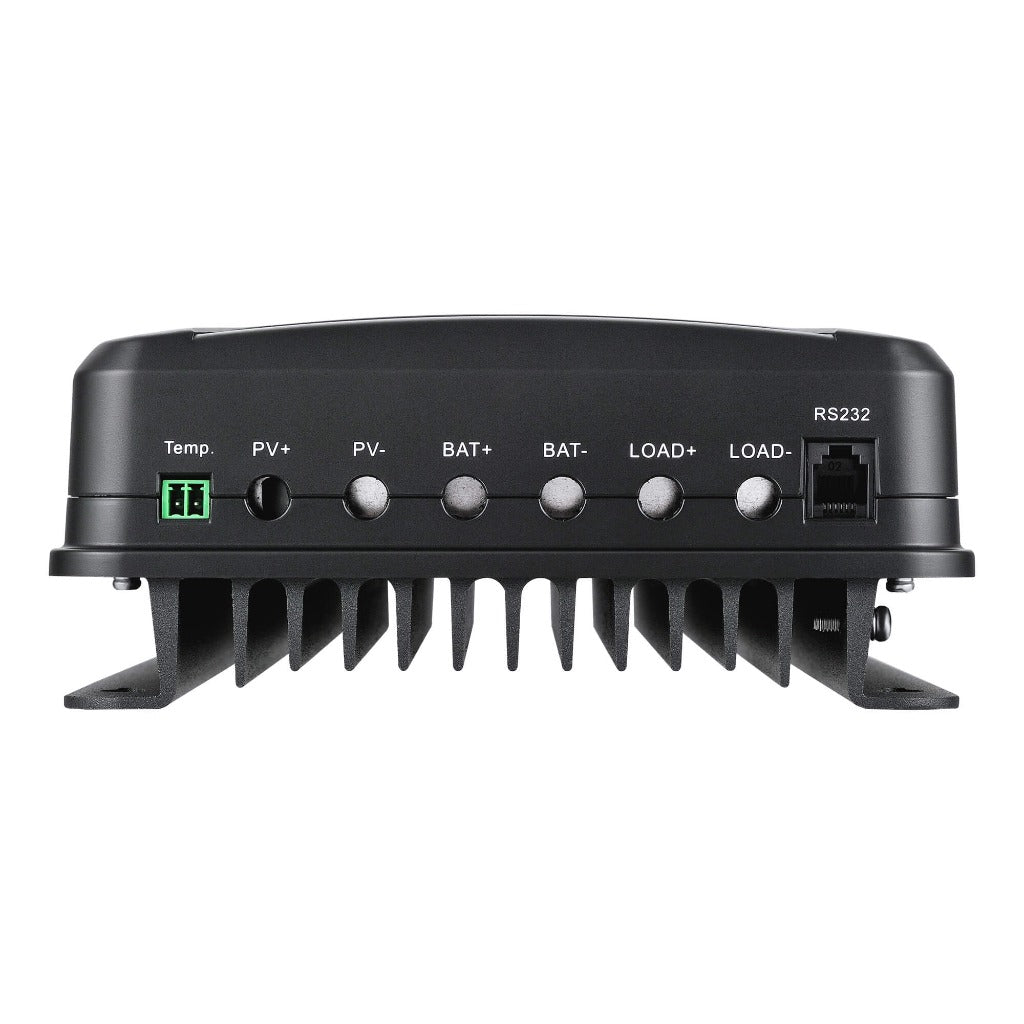

Max Terminal Size: 8AWG

Rated Load Current: 10% to 90% NC

Overall Dimensions: 9.37 x 6.81 x 2.85 in

Net Weight: 4.41 lb

What's in the Box:

1 x 40A MPPT Solar Charge Controller

1 x User Manual
