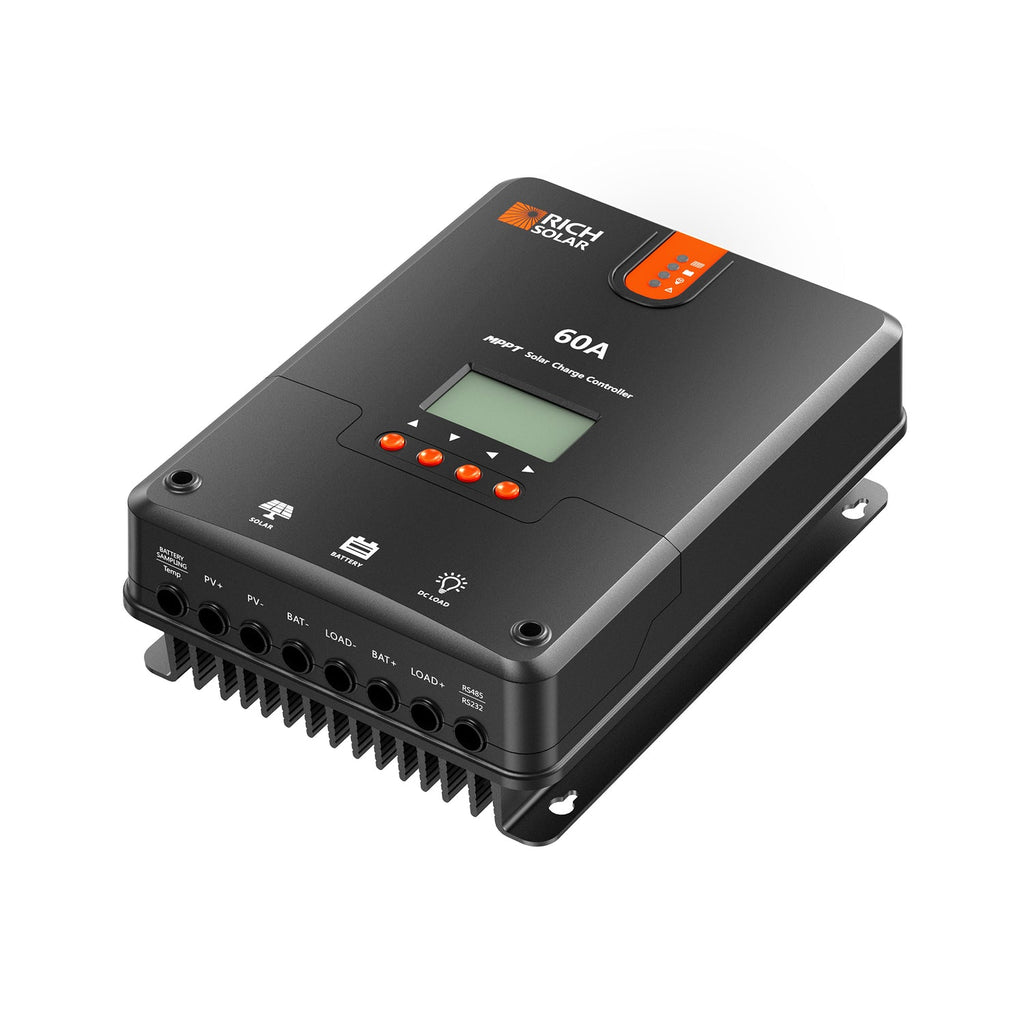

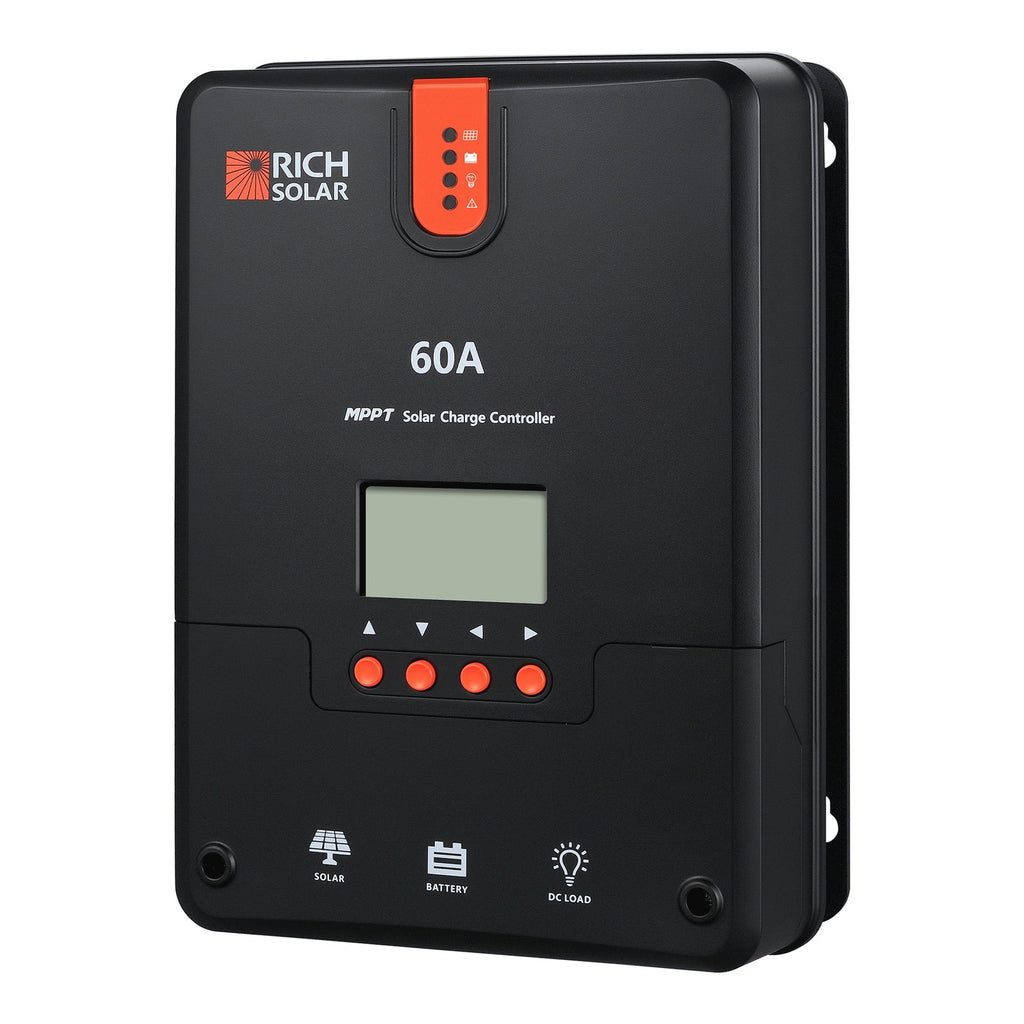

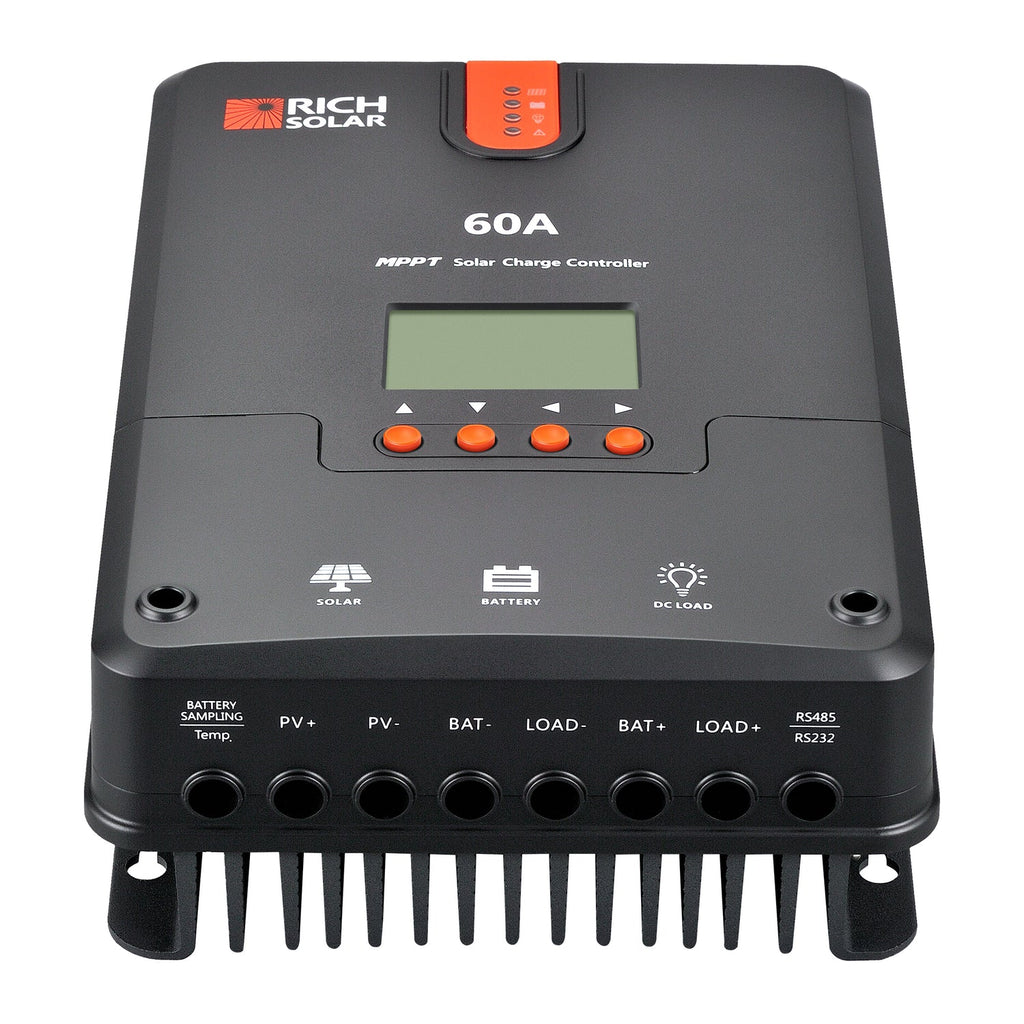

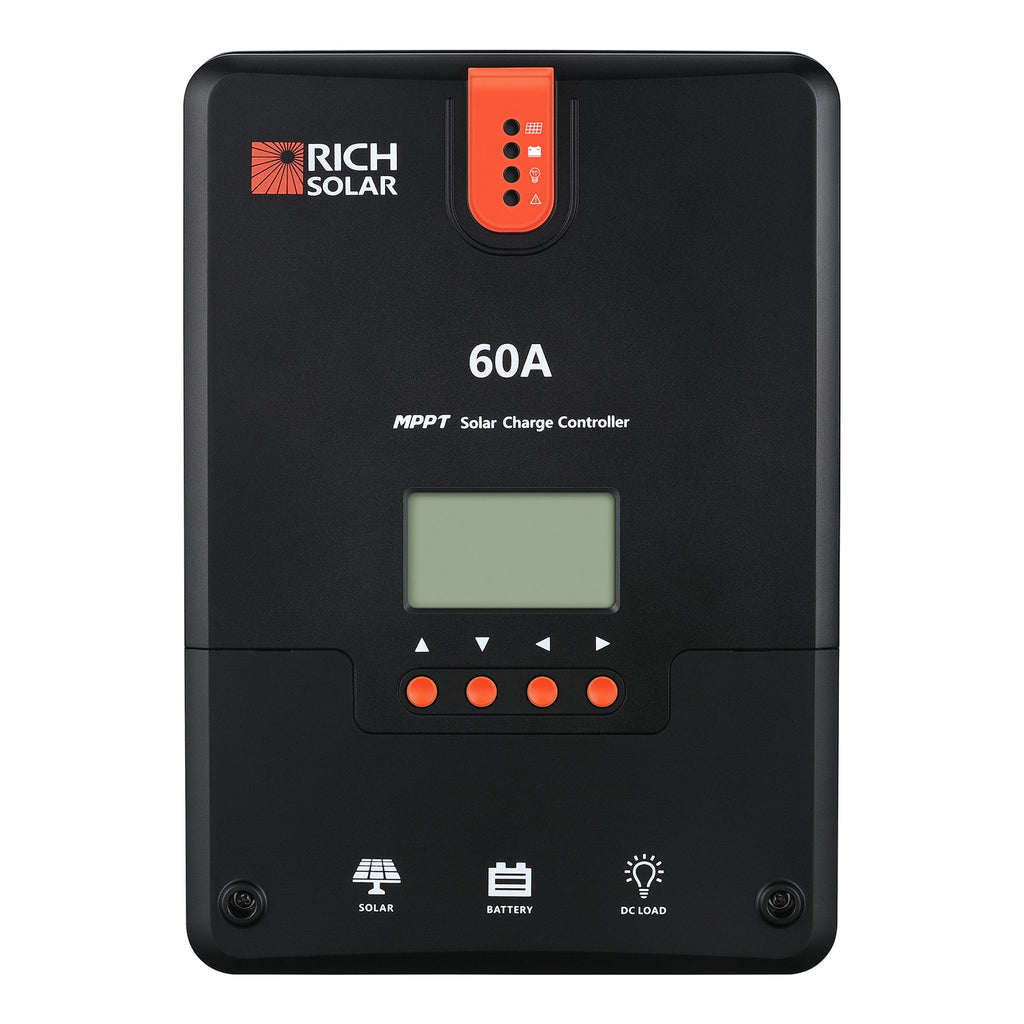

Rich Solar 60A MPPT solar charge controller

Rich Solar 60A is a universal solar charge controller that can automatically detect 12V/24V/36V/48V system voltages deploying innovative MPPT algorithm to achieve a high tracking efficiency of 99% and peak conversion efficiency of 98%.

Able to handle diverse load control, this 60A MPPT solar charge controller works with Sealed, Gel, Flooded and Lithium deep cycle batteries and with a diverse load control can charge even over-discharged lithium batteries.

A large LCD screen with intuitive LED indicators gives real-time operating information, customizable parameters and other error codes. While the die-cast aluminum construction allows efficient heat dissipation, the charge controller's electronic protection keeps your energy system protected against overcharge, over discharge, reverse polarity, overload, short circuiting and reverse current.

Specifications:

Rated Battery Current: 60A

Rated Load Current: 20A

Max Solar Input Voltage: 150V

Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Charge Circuit Voltage Drop: = 0.26V

Discharge Circuit Voltage Drop: = 0.15V

Operating Temperature: -31 °F to 113 °F

Max Terminal Size: 4AWG

Overall Dimensions: 11.2 x 8.1 x 4.0 in

Net Weight: 7.9 lb

What's in the Box:

1 x 60A MPPT Solar Charge Controller

1 x User Manual
