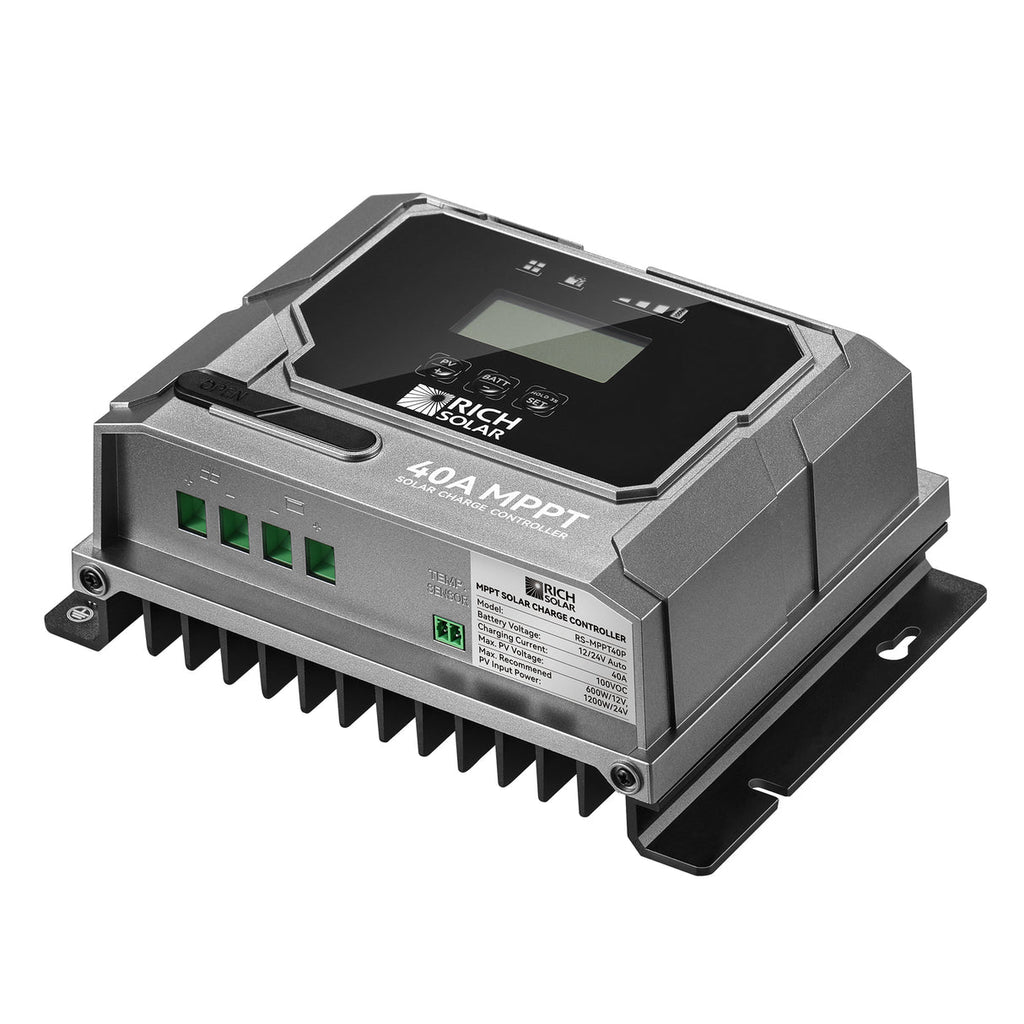

Rich Solar BRAVO 40 | 40 Amp MPPT Solar Charge Controller

A dedicated solar charge controller with MPPT to power your off-grid living, the BRAVO 40 from Rich Solar hailed as the #1 solar controller of 2025, this premium 40A 12V/24V MPPT solar controller is perfected for RVs, trailers, campers, boats, vans and every off-grid location you have ever thought of.

Deploying the MPPT algorithm, BRAVO 40 achieves a tracking efficiency of more than 99.5% and delivers charge conversion as high as 98%. Adapting to both 12V/24V DC systems, Rich Solar tech in BRAVO protects your solar energy system from reverse discharge, overvoltage, undervoltage and other fluctuations.

Designed to work with both Lead Acid batteries including GEL, AGM, WET, CRYSTAL, CALCIUM and Lithium batteries including LiFePO4, LTO, LCO, BRAVO 40 allows you to work with a wide range of batteries designed to harness the power of sun.

Specifications:

System Nominal Voltage: 12/24V Auto

Max. PV Open Circuit Voltage: 100VOC

Charging Technology: MPPT

Max PV Charging Current: 40A

Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)

Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO

Housing Case Color: Black / Grey

IP Grade: IP43 for Inside PCBA, IP22 for Connection Area

Net Weight: 2.58lb

Dimensions (L*W*H): 7.7*5.5*2.9 in

What's in the Box:

1 x BRAVO 40 Amp MPPT Solar Charge Controller

1 x User Manual
