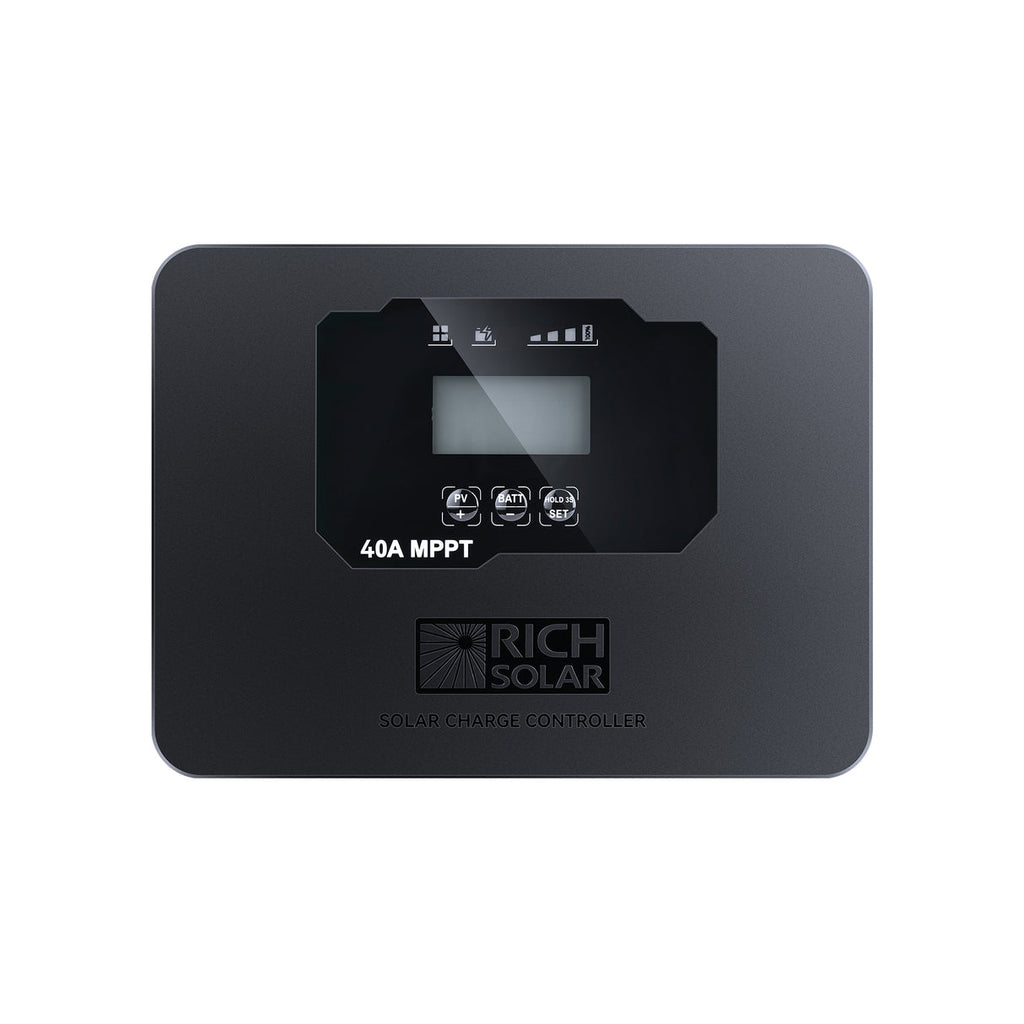

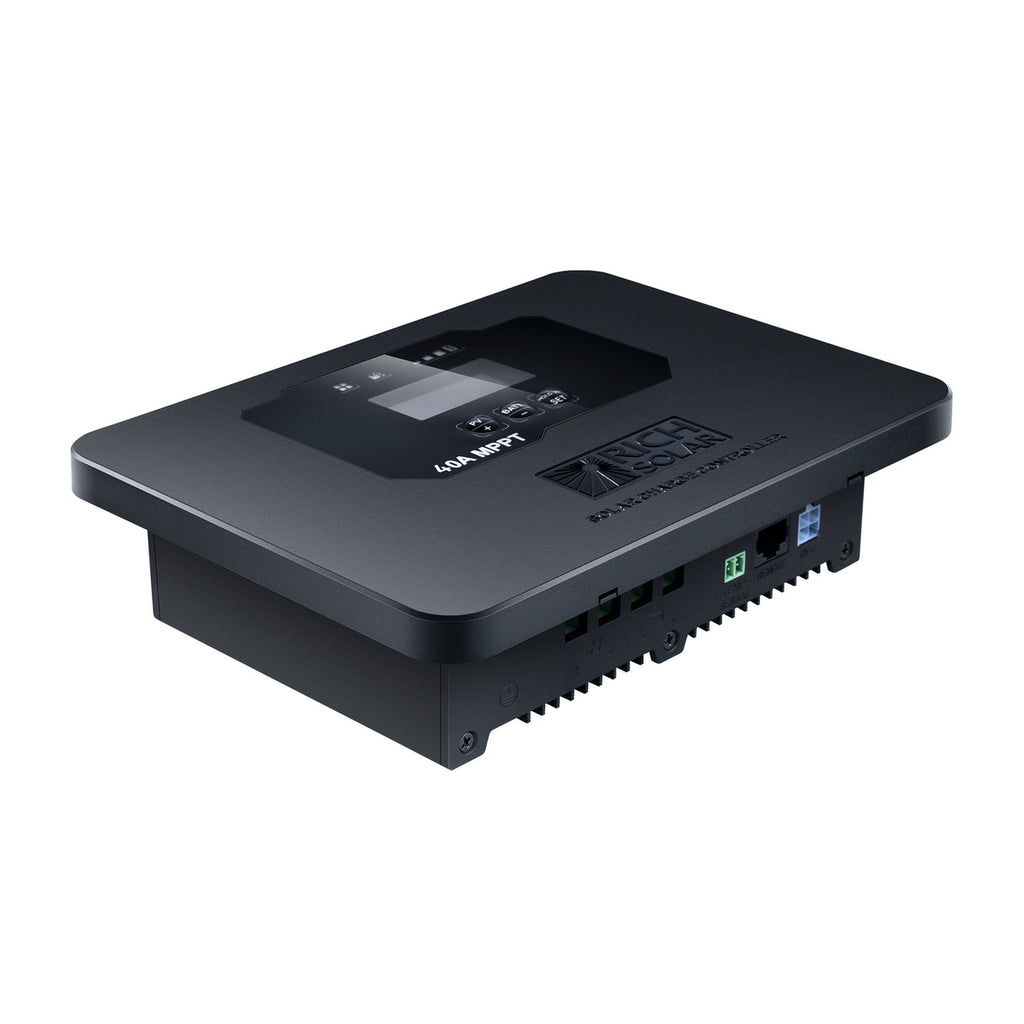

Rich Solar BRAVO FLUSH 40 | 40 Amp Flush Mount MPPT Solar Charge Controller
BRAVO FLUSH from Rich Solar is a 40Amp 12V/24V PWM flush mount solar charge controller tailor-made for your off-grid adventures. Deploying the latest Max Power Point Tracking (MPPT) algorithm with tracking efficiency above 99.5%, this flush mount solar controller seamlessly blends into RVs, trailers, campers, vans, boats, literally everywhere your dreams take you.
With a PV open circuit voltage of up to 100W and common negative ground connection, BRAVO FLUSH works with most of your existing rechargeable batteries and can support up to 9 battery types. While BRAVO FLUSH reliably protects your solar energy system from overcharging, undercharging, short circuit, reverse polarity and thermal fluctuations, the contraption itself comes with extensive internal electronics for in-circuit protection.

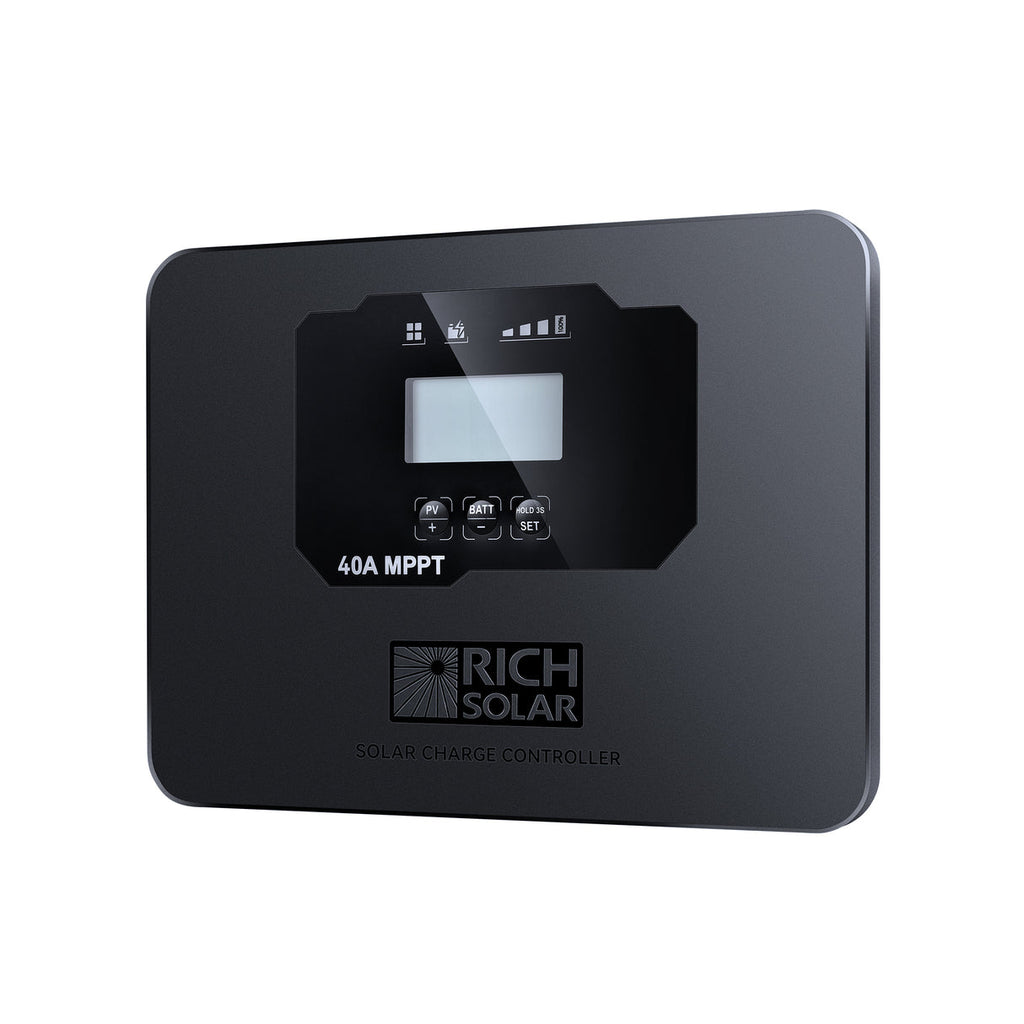

A quick look at the unique and concise LED bar indicates the status of your solar panel, energy generated and battery charging condition. The large, informative display lets you peep at all the needed metrics including solar parameters, charging parameters, battery type, temperature, custom presetting faulty codes etc. Designed to work seamless with dual system voltages, BRAVO FLUSH automatically detects 12V or 24V DC system voltages for optimal performance.
Specifications:
Max. PV Open Circuit Voltage: 100 VDC
Max. Normal Input PV Voltage: 92 VDC
Max. PV Input Current: 40 AMP
Max. PV Short Circuit Current: 45 AMP
Max. Conversion Efficiency: 98%
Min. Tracking Efficiency: 99.5%
Nominal PV Power: 600W@12V/1200W@24V
Min. Battery Start Charging Voltage: 5 VDC
Soft Start Charging Voltage: 5~10±2
Soft Start Charging Current: 20 AMP
Max. Bulk Charge: 40 AMP
Controller Material: Plastic, PC
Mounting: Surface Mounting
IP Grade: IP43
Net Weight: 1.87 lb
Operating Temperature: -13 ~ 122 ℉
Storage Temperature: -40 ~ 185 ℉
Operating Humidity Range: 0-85% RH
Bluetooth: Yes

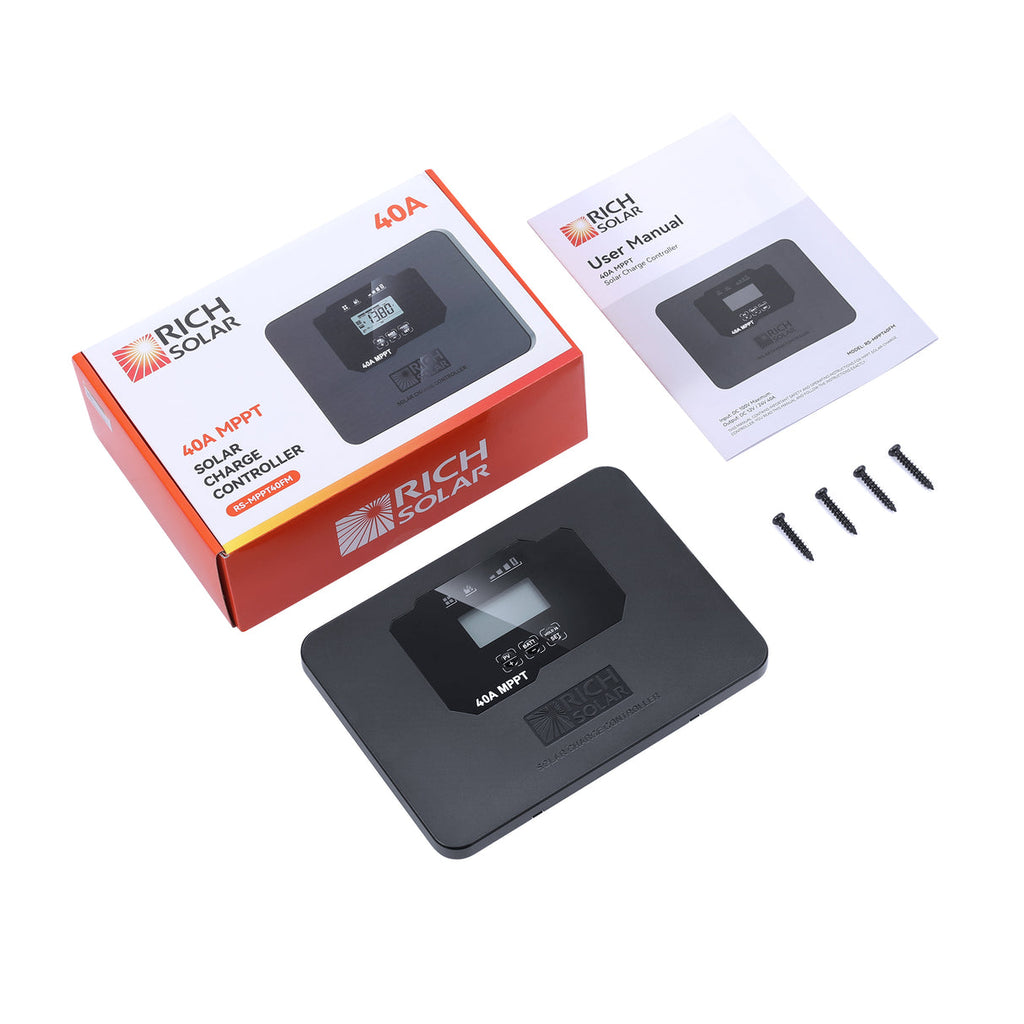

What's in the Box:
1 x BRAVO FLUSH 40 Amp Flush Mount MPPT Solar Charge Controller
1 x User Manual
