Rich Solar MEGA 100 Portable Briefcase Charging Kit
Power your off-grid adventures with the Rich Solar MEGA 100 Portable Briefcase Charging Kit—a compact, high-performance solution that includes everything you need to keep your batteries charged and ready. Designed for rugged outdoor use and built with premium materials, this 100-watt kit includes a waterproof 10A PWM charge controller, making it ideal for RVs, vans, boats, cabins, and backup power setups.
Key Features
100W High-Efficiency Monocrystalline Solar Panel: Equipped with premium-grade monocrystalline cells that deliver strong solar conversion efficiency, even in partial sun.
Integrated Kickstand for Optimal Sun Exposure: Quickly adjust the panel's angle to follow the sun throughout the day for maximum energy absorption.
Reinforced Corner Protection: Rubber guards on the corners add impact protection during transport and deployment.
Tempered Glass Construction: Scratch-resistant and built to withstand extreme temperatures, wind, and debris without compromising performance.
Lightweight Aluminum Frame: Corrosion-resistant and lightweight for easy handling, yet tough enough for long-term outdoor use.

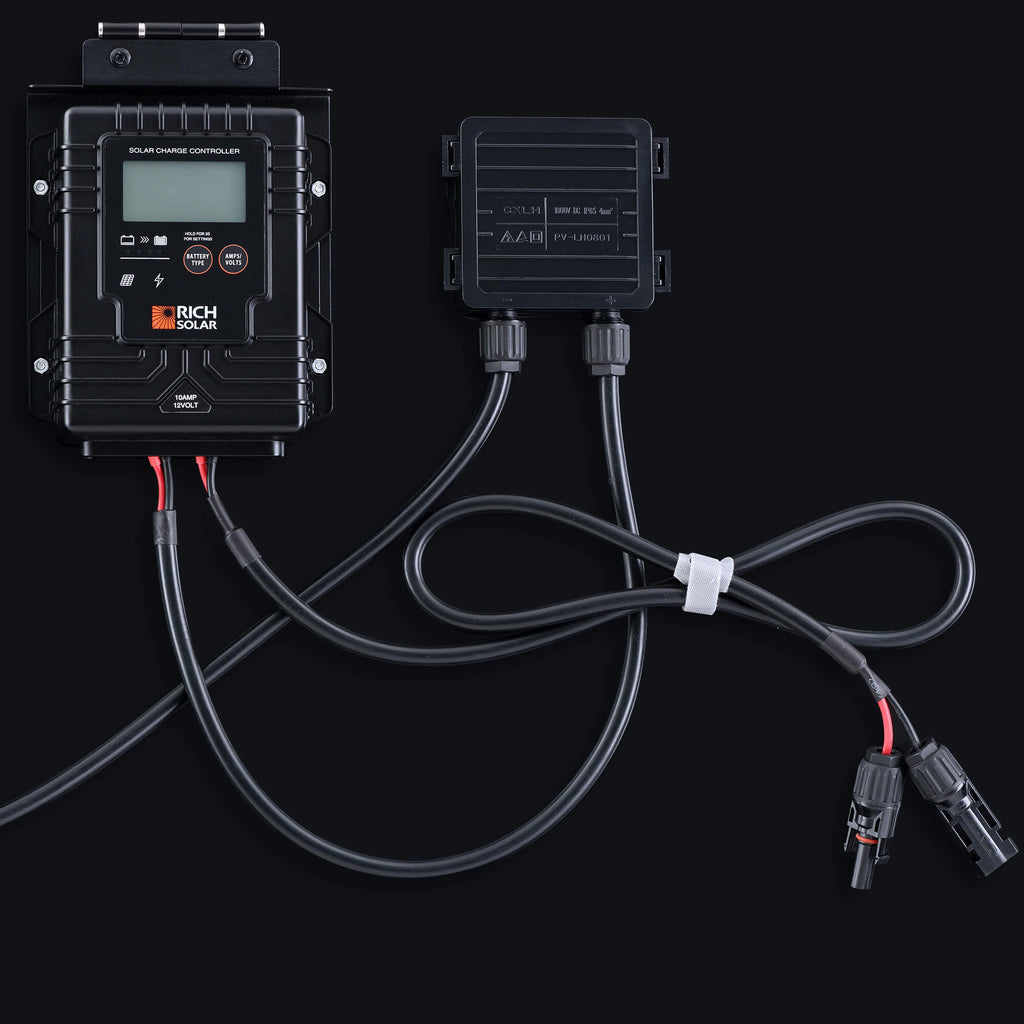

10A Waterproof PWM Charge Controller: Pre-wired and mounted, this weather-sealed controller manages your battery’s charging process and protects against overcharging or discharging. Compatible with lithium, LiFePO4, AGM, GEL, and flooded batteries.
Fully Weatherproof Design: Built to IP67 standards with a sealed junction box and waterproof connectors—ready to perform in rain, dust, or snow.
Specifications
Maximum Power (Pmax): 100W
Maximum Power Voltage (Vmp): 18.6V
Maximum Power Current (Imp): 5.48A
Open Circuit Voltage (Voc): 22.8V
Short Circuit Current (Isc): 5.78A
Maximum System Voltage (Vmax): 1000V DC
Weight: 15.7 lb
Dimensions (Folded): 25.2 x 18.1 x 2.4 in
Dimensions (Unfolded): 36.4 x 25.2 x 1.2 in
What’s in the Box
1 x 100W Portable Briefcase Solar Panel
1 x Waterproof 10A PWM Solar Charge Controller (pre-mounted)
1 x Pair of 3-foot solar leads (positive & negative)
1 x Integrated Kickstand
1 x IP67-rated junction box with built-in bypass diodes
1 x Set of waterproof solar connectors
1 x User Manual
