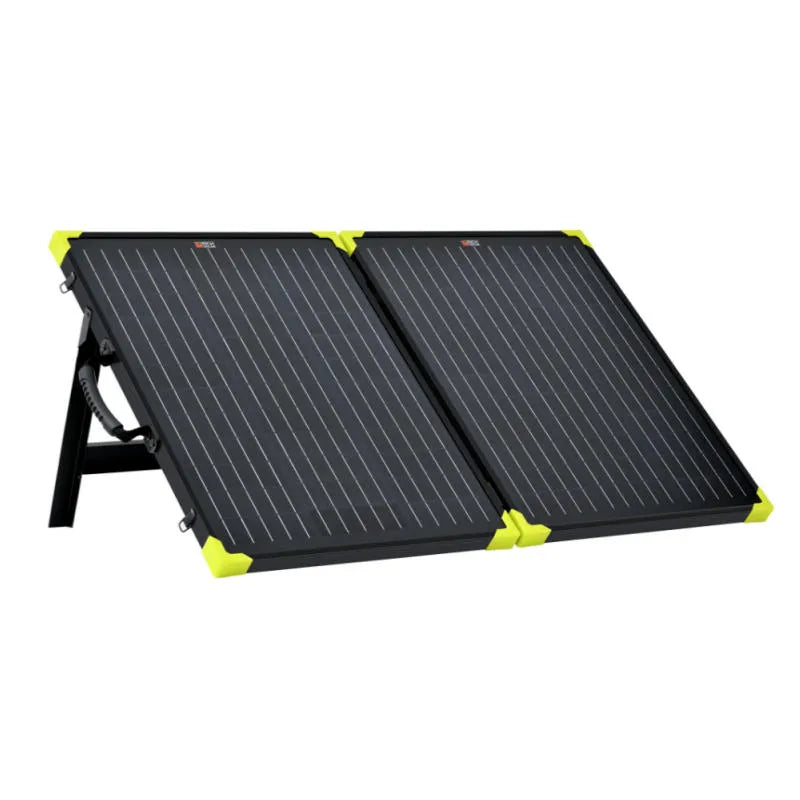

Rich Solar MEGA 200 Portable Briefcase Charging Kit
The MEGA 200 Charging Kit is a complete portable solar solution featuring a high-efficiency 200W briefcase panel with a built-in 20A PWM solar charge controller. Whether you're charging lithium, LiFePO4, AGM, GEL, or flooded lead-acid batteries, this kit delivers dependable off-grid power for RVs, vans, cabins, and emergency setups. Park in the shade and follow the sun—the freedom of portable solar is here.
Key Features
High-Efficiency 200W Monocrystalline Panel: Premium cells provide reliable power generation even in partial sunlight, helping you stay charged wherever you roam.

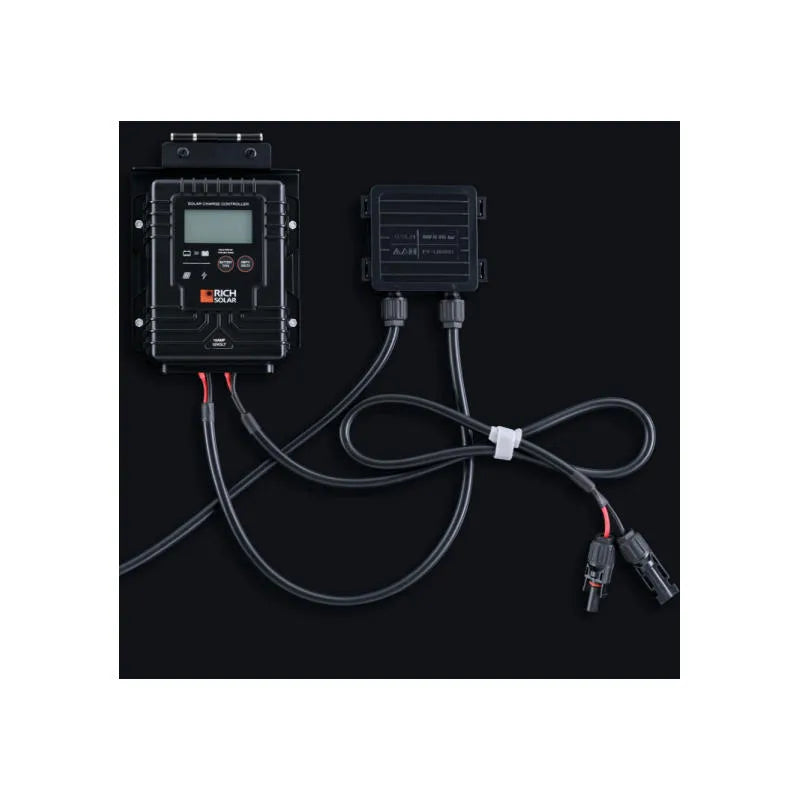

Built-In 20A PWM Solar Charge Controller: Pre-wired and waterproof, the included controller protects your battery and optimizes charging for multiple battery chemistries.
Plug-and-Play Setup: No complex wiring or extra parts needed—just unfold, connect to your battery or power station, and start charging.
Adjustable Kickstand: Angle the panel toward the sun for maximum output. Easily track the sun's movement throughout the day.

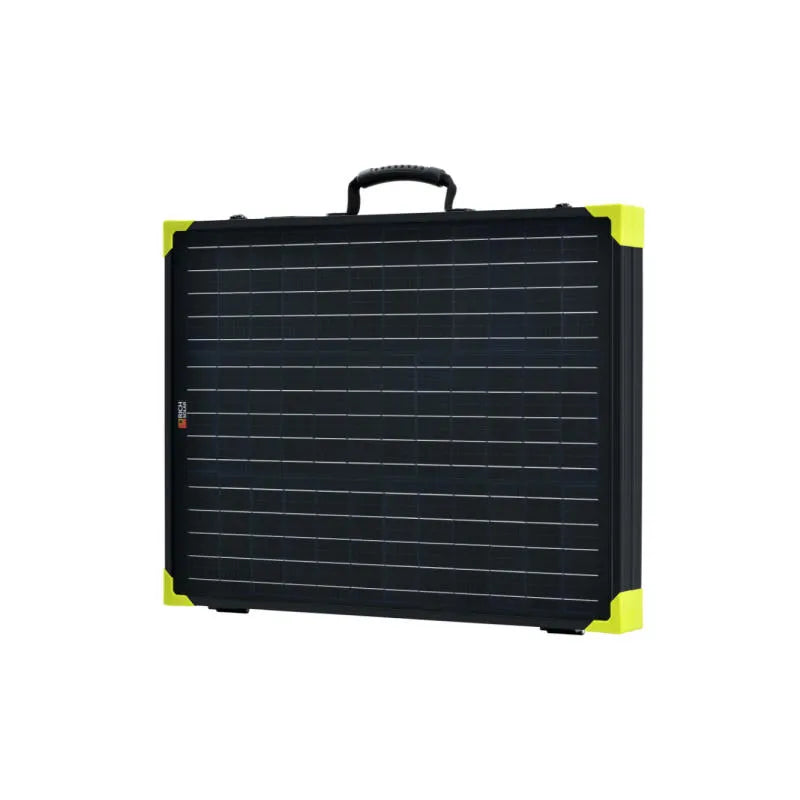

Foldable Briefcase Design: Packs down compact with a built-in handle for easy carrying and storage. Corner protection guards the glass during travel.
Rugged & Weatherproof: Built with tempered glass and an anodized aluminum frame to withstand outdoor environments.
Universal Compatibility: Works with lithium (LiFePO4), AGM, GEL, and lead-acid batteries. Also compatible with solar generators and power stations.
Specifications
Maximum Power (Pmax): 200W
Maximum Power Voltage (Vmp): 18.6V
Maximum Power Current (Imp): 10.8A
Open Circuit Voltage (Voc): 22.8V
Short Circuit Current (Isc): 11.2A
Maximum System Voltage (Vmax): 1000V DC
Weight: 34 lbs
Dimensions (Folded): 35 x 29 x 4 in
Dimensions (Unfolded): 55.7 x 36.6 x 1.4 in

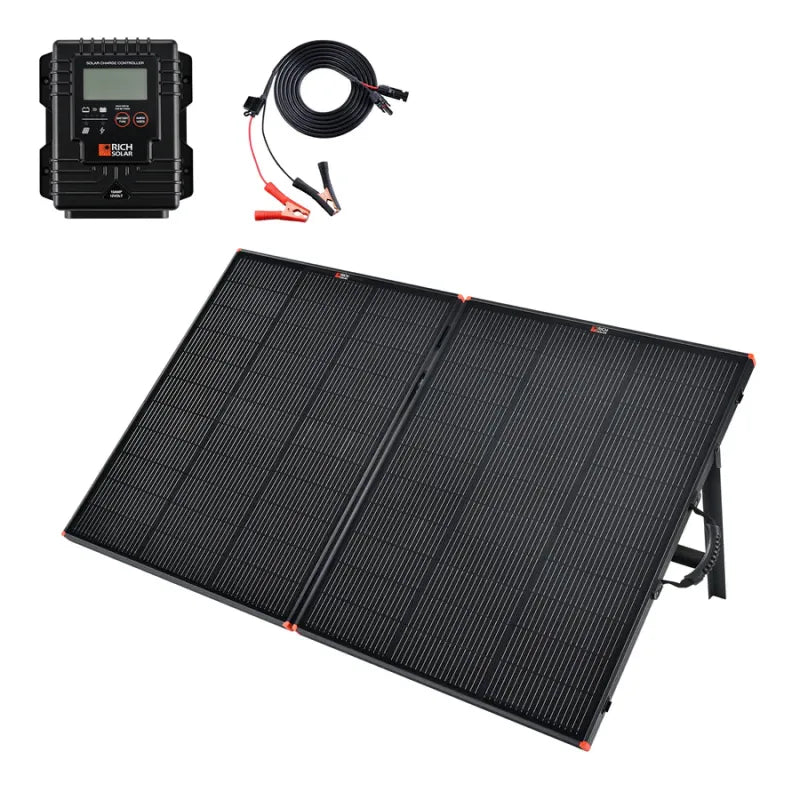

What’s in the Box
1 × 200W Foldable Monocrystalline Solar Panel
1 × Waterproof 20A PWM Solar Charge Controller (Pre-installed)
Built-in Kickstand and Corner Guards

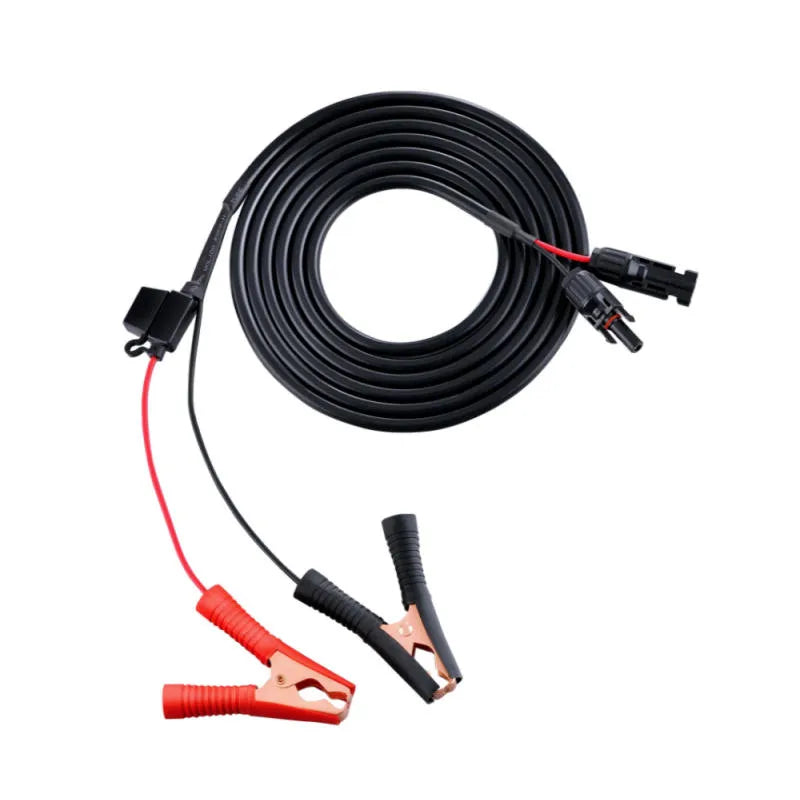

Pre-wired Solar Cables and Connectors
Integrated Carrying Handle
