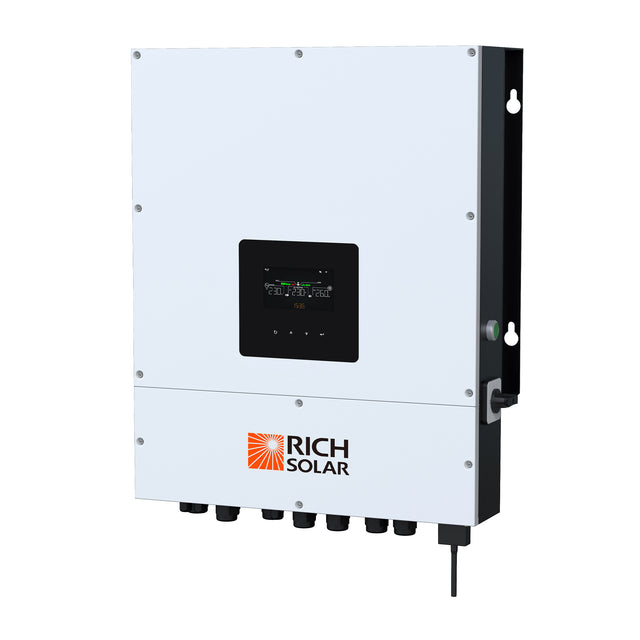

Rich Solar NOVA 8K | 8000 Watt (8kW) 48V Split Phase Hybrid Inverter
The Rich Solar NOVA 8K is a high-performance 8000W inverter designed for residential and commercial off-grid solar systems. This inverter boasts robust features like IP65 waterproof and dustproof protection, making it ideal for harsh environments. With a high-efficiency rate, a wide MPPT voltage range, and the ability to operate in parallel with up to 6 units, the NOVA 8K is perfect for large-scale solar installations. Whether it's for your home or business, the Rich Solar NOVA 8K offers both reliability and flexibility with its adjustable settings, Wi-Fi connectivity, and customizable configurations.
Key Features:
IP65 Waterproof and Dustproof: Perfect for outdoor installations and harsh working conditions.
Built-in Wi-Fi: Monitor your system remotely with the required app.
RGB LED Bar: Configurable colors to match your system's aesthetic.
Emergency Load Port: A dedicated port for generator and emergent load connections.
Self-Consumption Guarantee: Optional external CT sensor ensures 100% self-consumption.
Programmable Supply Priority: Set PV, Battery, or Grid priority based on your needs.
Parallel Operation: Supports up to 6 units for larger energy setups.
BMS Communication: Built-in RS485 communication port for battery management systems.
Specifications:
Maximum PV Input Power: 7500W
Rated Output Power: 6000VA / 6000W
PARALLEL CAPABILITY: Yes, up to 6 units
Maximum DC Voltage: 600VDC
Start-up Voltage: 120VDC / Initial Feeding Voltage: 160VDC
MPPT Voltage Range: 120VDC – 550VDC
Frequency Range: 50Hz / 60Hz (Auto detection)
Output Voltage Waveform: Pure Sine Wave
Nominal Output Voltage: 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P)
Output Voltage Range: 105.5–132VAC per phase
Nominal Output Current: 25A per phase
Battery Voltage: 40–62VDC
Maximum Charging Current: 120A
DC to AC Efficiency: 91%
Operating Temperature Range: -13°F to 140°F (derating above 113°F)
Physical Dimensions:
Dimension (With Extension Box): 8.5 x 20.3 x 27.6 in / 215.5 x 515 x 700 mm
Net Weight: 90.4 lb / 41 kg
What's in the Box:
1 x Rich Solar NOVA 8K Inverter
1 x User Manual
