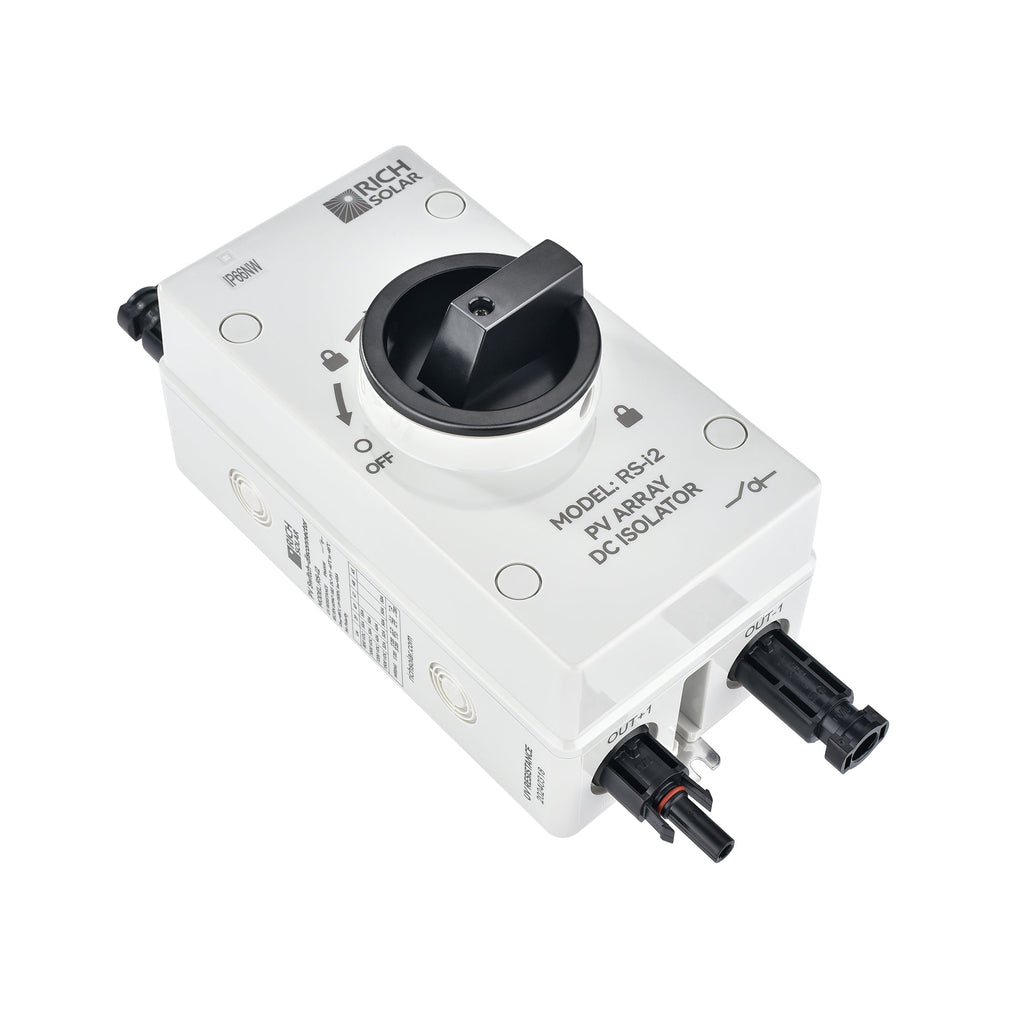

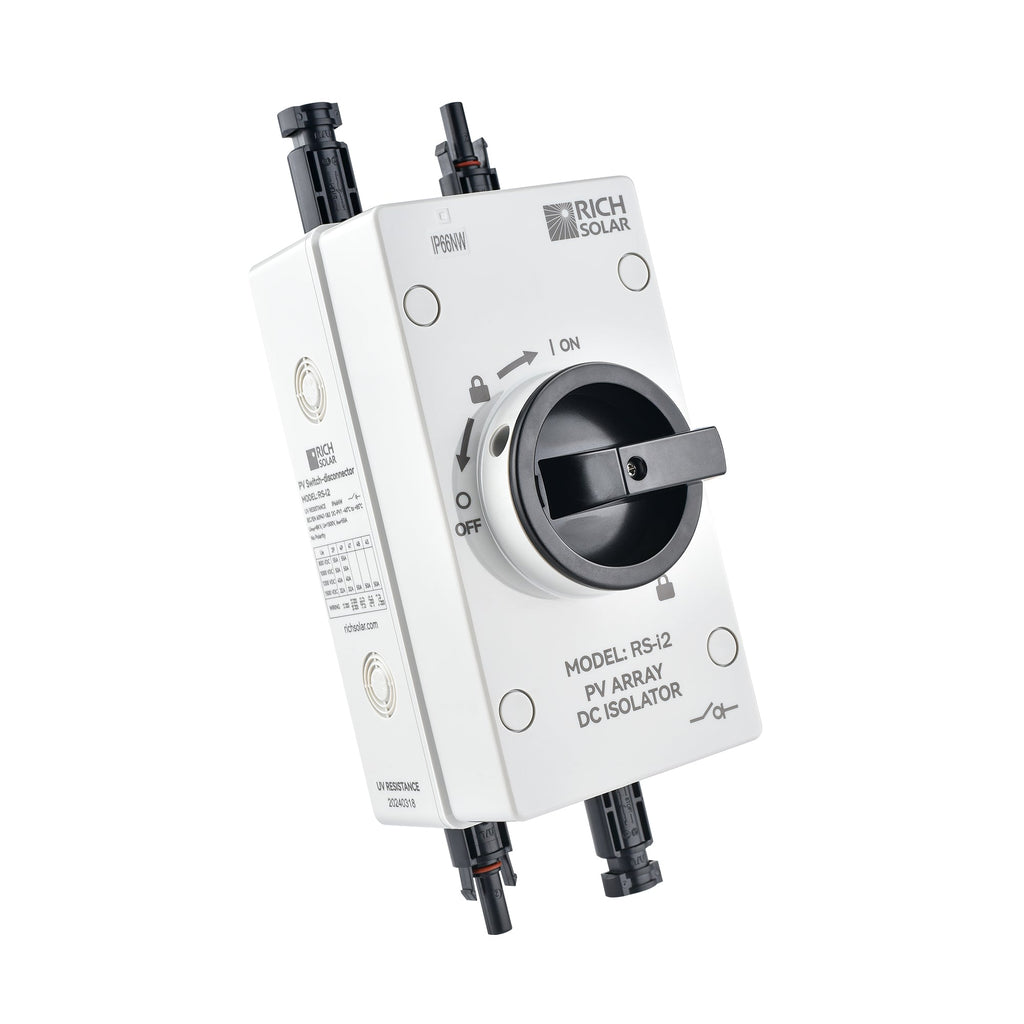

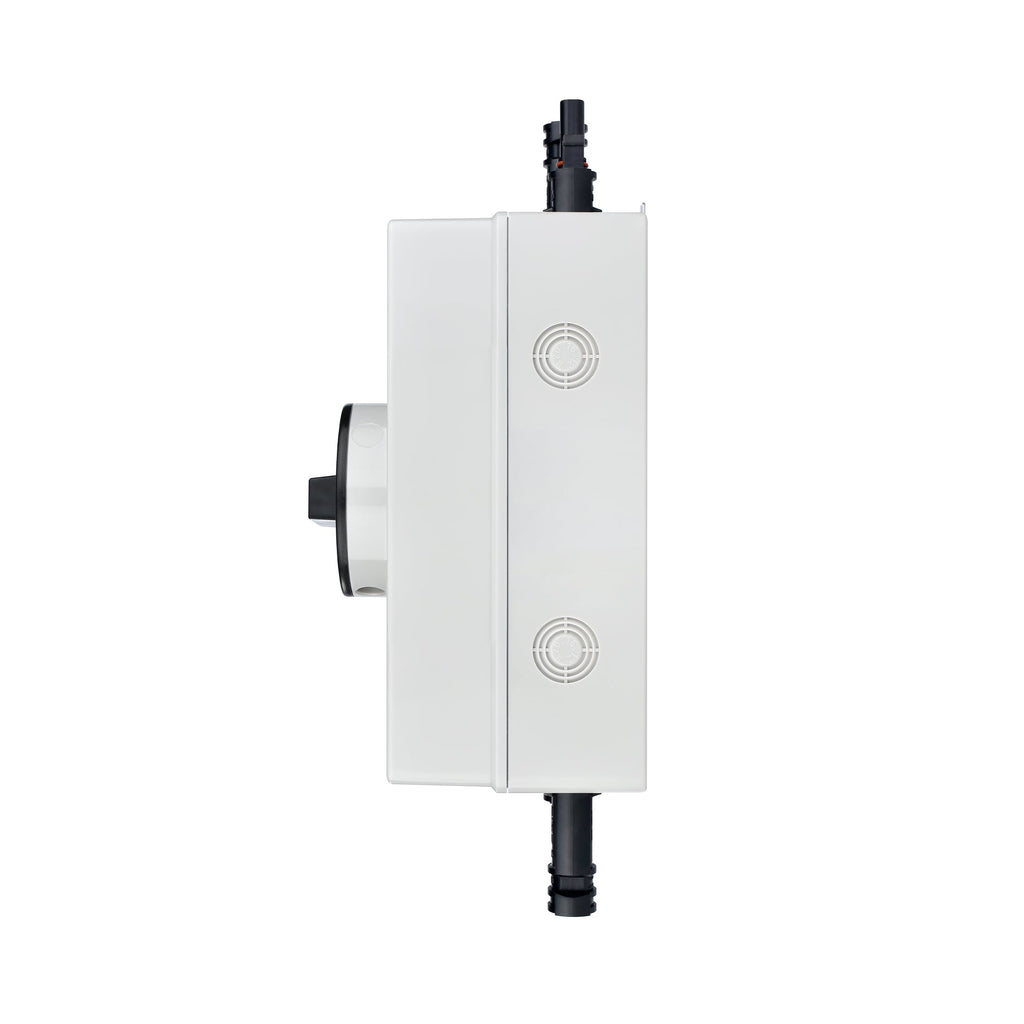

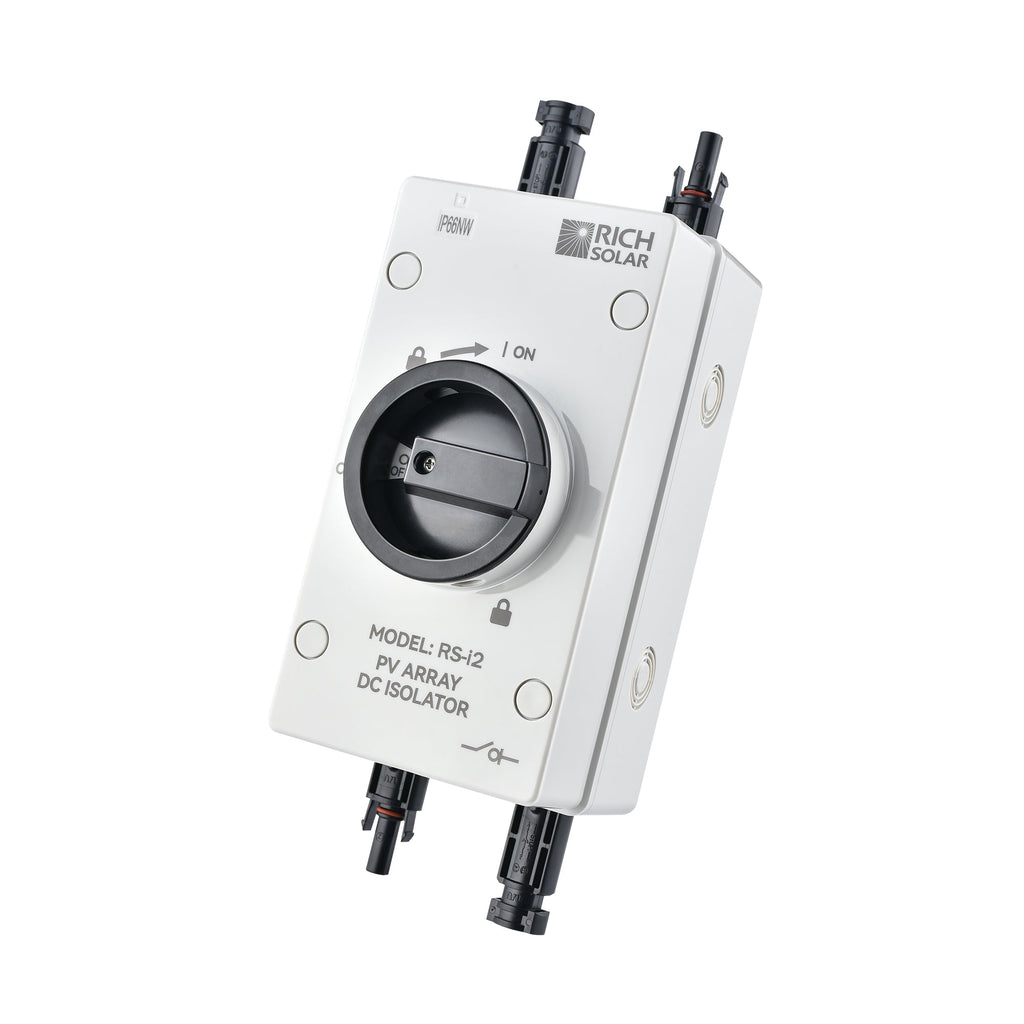

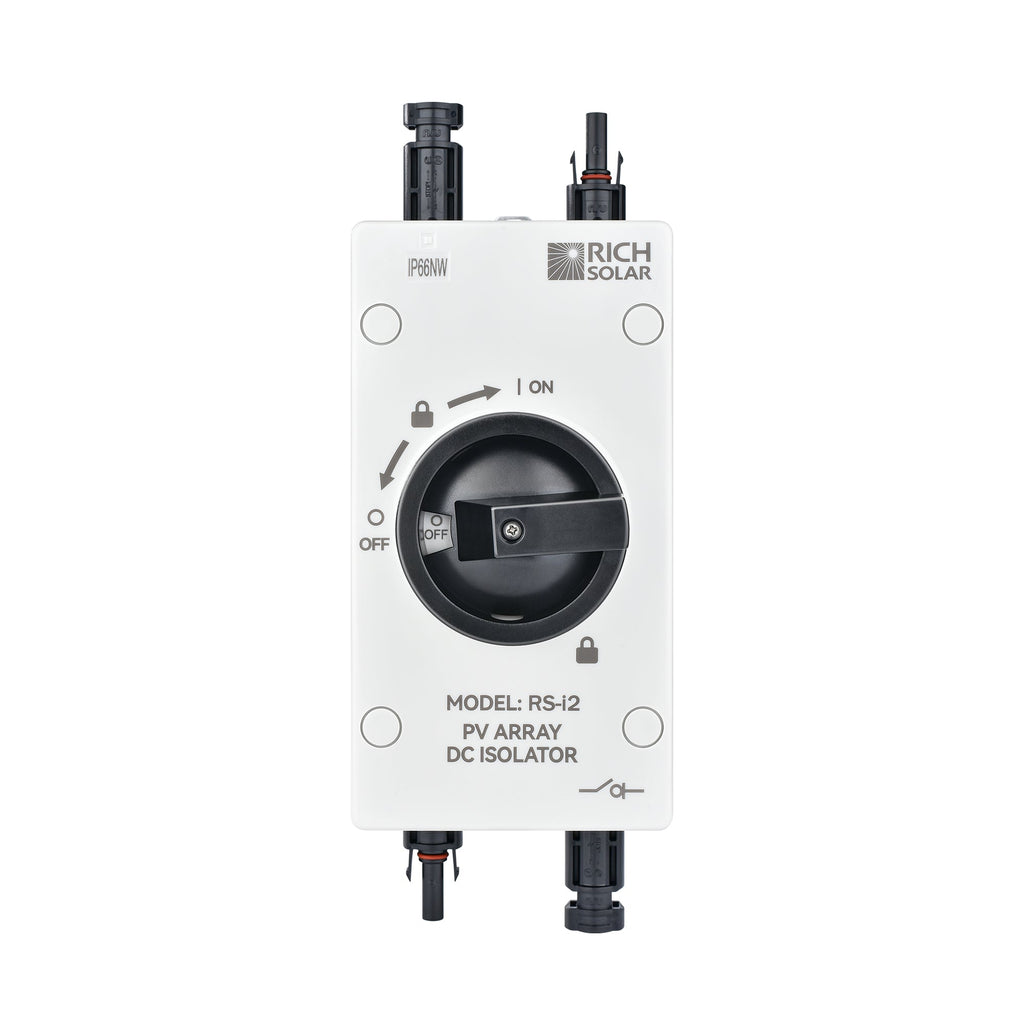

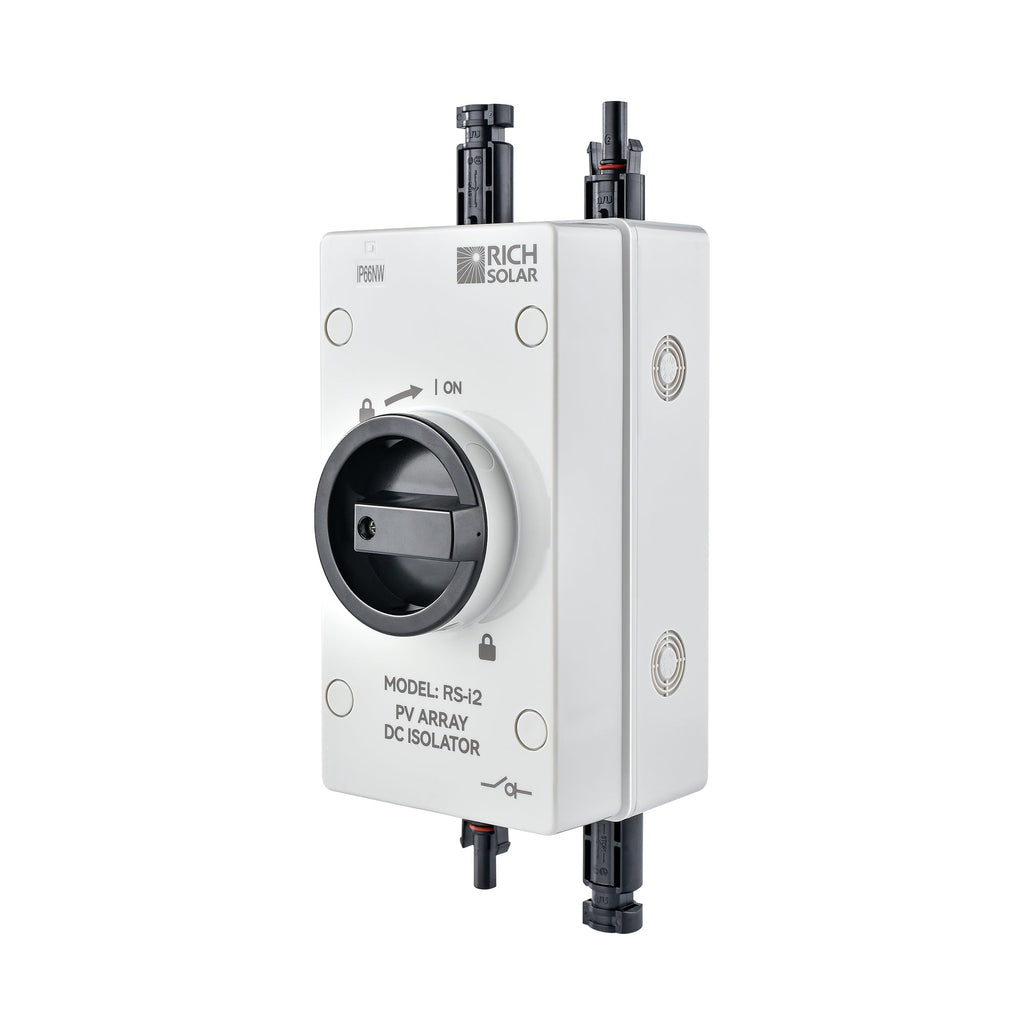

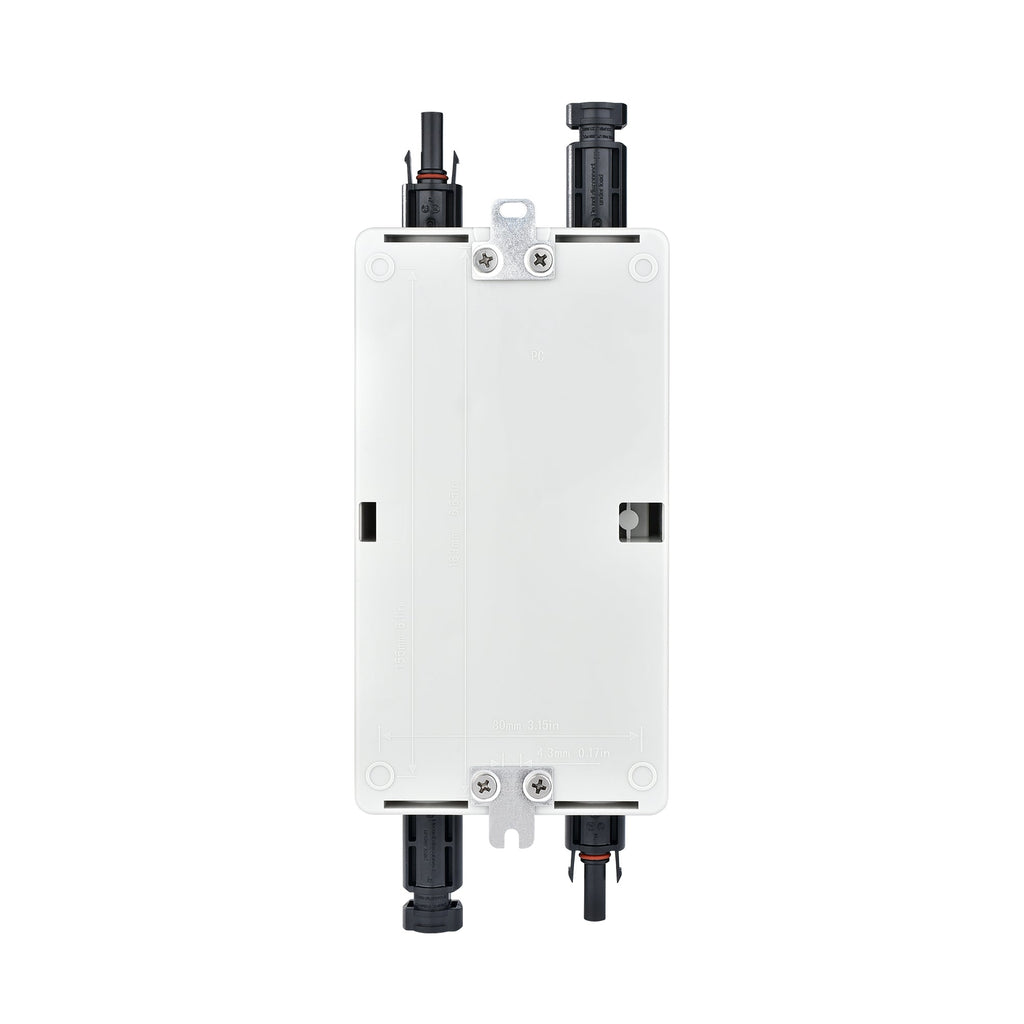

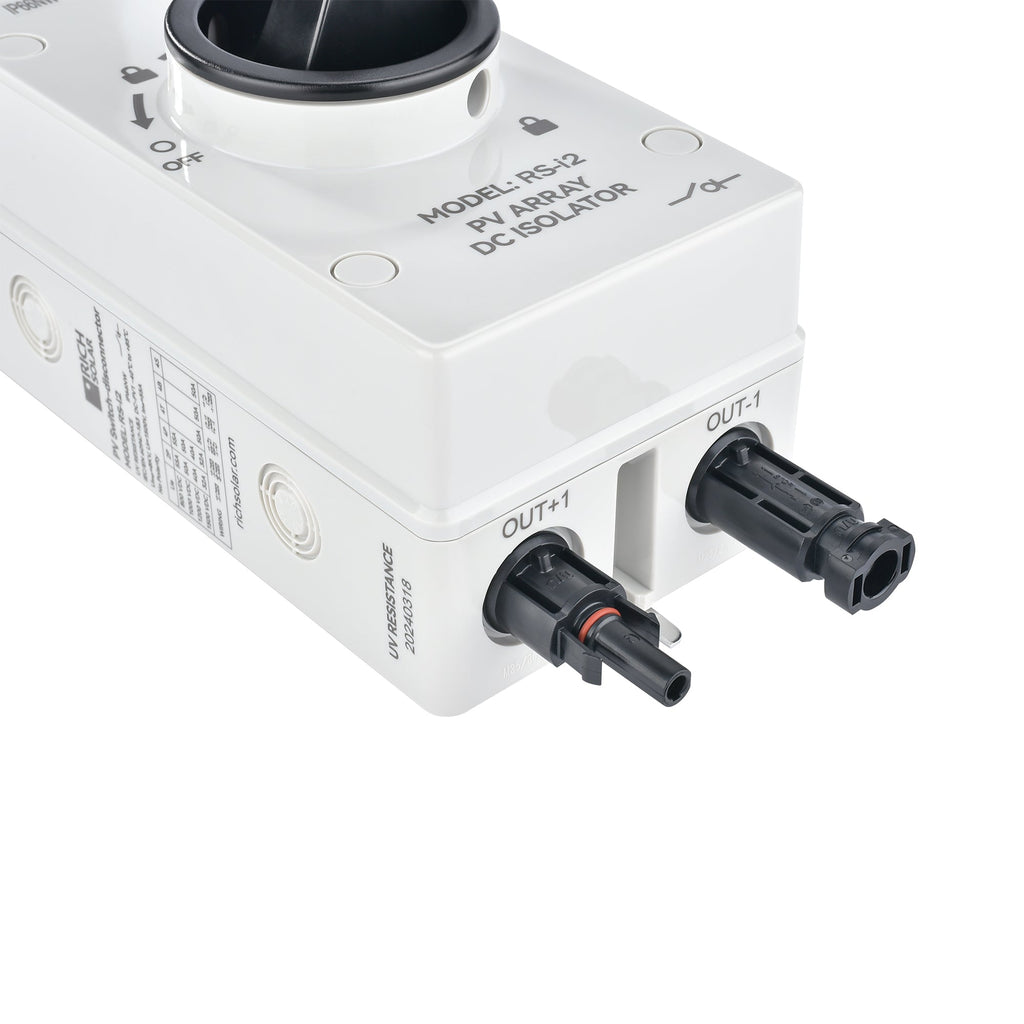

Rich Solar Solar PV DC Quick Disconnect Switch | RS-i2
The Rich Solar PV DC Quick Disconnect Switch (RS-i2) is a reliable and efficient solution for quickly disconnecting DC power from your solar array. Whether you're working with a charge controller, batteries, or inverters, this disconnect switch is designed to ensure the safe and fast disconnection of DC circuits, with a suppression of arc in under 3 milliseconds. Its weatherproof, IP66-rated design makes it perfect for both off-grid and on-grid solar applications, providing a durable and safe solution for all your solar maintenance needs.
The RS-i2 features a SAFE-LOCK mechanism with three rotational positions, significantly reducing the risk of tampering. This model is equipped with a single-pole, double-throw configuration and comes with a lockout option for added security during installation and maintenance. Its easy-to-use input and output connections simplify the setup, making it a versatile choice for both new and existing solar installations.
Key Features:
Quick Disconnect: Ensures fast and secure disconnection of DC power, providing safer operation and easy maintenance.
Weatherproof Design: Rated IP66 for excellent protection against dust and water, suitable for outdoor applications.
Safe-Lock Mechanism: Isolated SAFE-LOCK with three rotational positions reduces the risk of tampering and unauthorized access.
Arc Suppression: Suppresses arcs in less than 3 milliseconds to prevent potential hazards during disconnect.
Lockout Option: Provides added safety by preventing accidental reconnection during maintenance or installation.
Easy Installation: Built for simple setup with clearly marked input and output connections.
Wide Application: Compatible with both off-grid and on-grid solar systems, ideal for charge controllers, batteries, and inverters.
Specifications:
Max. Rated Current: 32A
Max. Rated Voltage: 1500V
Circuit Type: 2-pole and 1-string
Standards: TUV, SAA, CE, IP Certified & ROHS Compliant
Waterproof Rating: IP66NW
Arc Time: <3ms (ensures quick arc suppression)
Operating Temperature: -40°F to +185°F (-40°C to +85°C)
Warranty: 10 years
Dimensions (HxWxD): 9.8 x 3.8 x 4.3 inches (249.4 x 97.6 x 110 mm)
Non-corrosive
What's in the Box:
1 x Rich Solar Solar PV DC Quick Disconnect Switch (RS-i2)
1 x User Manual
1 x Mounting Kit
1 x Lockout Tagout (LOTO) Option
1 x Communication Cable
